Sun-Mar CENTREX 3000 - Centrex 3000 Specifications and Diagram; Centrex 3000 Explosion Diagram

CENTREX 3000 SPECIFICATIONS

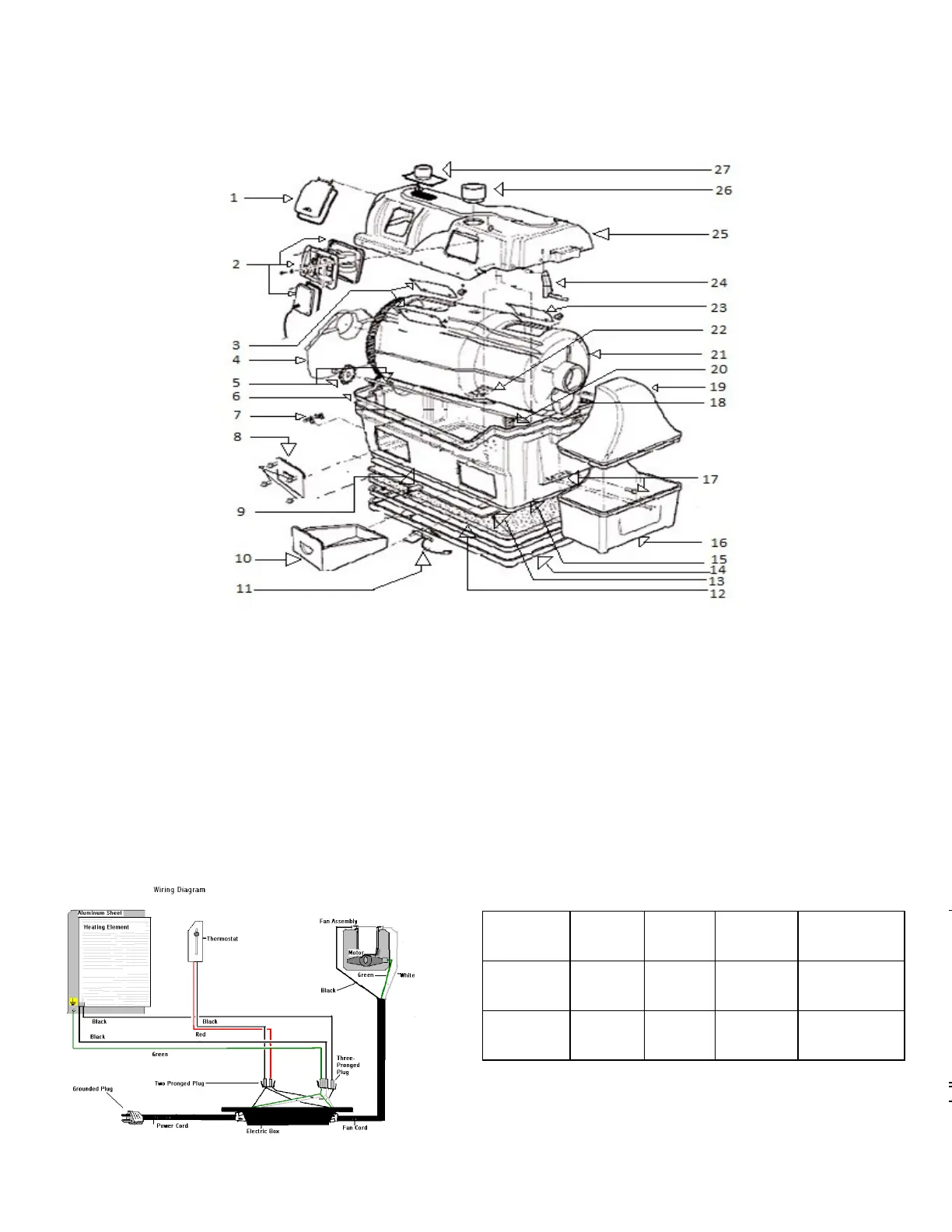

CENTREX 3000 EXPLOSION DIAGRAM
1) Centrex 3000 Access Door
2) Fan assembly (Electric)
3) Centrex 3000 Drum Doors
4) Centrex 3000 Bearing Plate
5) Shaft and Small Gear Assembly
6) Rubber U Channel
7) 1” (25mm) Drain Assembly
8) Centrex 3000 Access Panel and
Thumbscrews
9) Thermostat
10) Centrex 3000 Drawer
11) Power Cord
12) Insulation (Electric)
13) Heating Element and
Aluminum Sheet
14) Centrex 3000 Heating Tray
15) Centrex 3000 Tank
16) Collection Bin Bottom
17) Drum Locker Assembly
18) Drum Bearing Strip
19) Collection Bin Top
20) 3” (75mm) Air Intake
21) Centrex 3000 Drum
22) Drum Screen
23) Centrex 3000 Drum Door
24) Handle Assembly
25) Top Centrex 3000
26) 4” (100ml) Vent Inlet (NE)
27) Cover Plate
18
Toilet Maximum
Amps
Fan
Power
Heater
Power
Avg. Power
CENTREX
3000 (115V)
3.6 A 35 Req 370 W 200 W
CENTREX
3000 (240V)
1.69A 35 Req 370W 200 W
