EZ-3 USX HD Parts List
ITEM DESCRIPTION QTY
1 Main Frame Assembly 1
2 Rear Unit Right Side Assembly 1
3 Rear Unit Left Side Assembly 1
4 Rear Unit Hardware Set (Not Pictured) 1 set
5 Frame Pivot and Shock Hardware Set (Not Pictured) 1 set
6 Front Wheel QR (M5 x 130mm) 1
7 Front Wheel Assembly 1
8 Left Handlebar Assembly 1
9 Right Handlebar Assembly 1
10 Steering Link 1
11 Seat Mount 1
12 Seat Mount Hardware Set (4x M5x20mm bolts and 2x QR M6x65mm) 1 set
13 Saddle 1
14 Seat Back Frame 1
15 Seat Mesh (Not Pictured) 1
16 Upper Seat Strut (15.8 x 150mm) 1 pair
17 Seat Strut Pins 1 pair
18 Lower Seat Strut (19.1 x 445mm) 1 pair
19 Seat Strut Hardware Set (2x upper bolts/nuts/washers, 4x ½ moon plastic washers, 2x lower bolts/nuts/washers) 1 set
20 Seat Strut Tab Brace Set (2x braces, 4x bolts/nuts/washers) 1 set
21 Chain Tube Assembly 1 pair
22 Pedals (9/16”) 1 pair

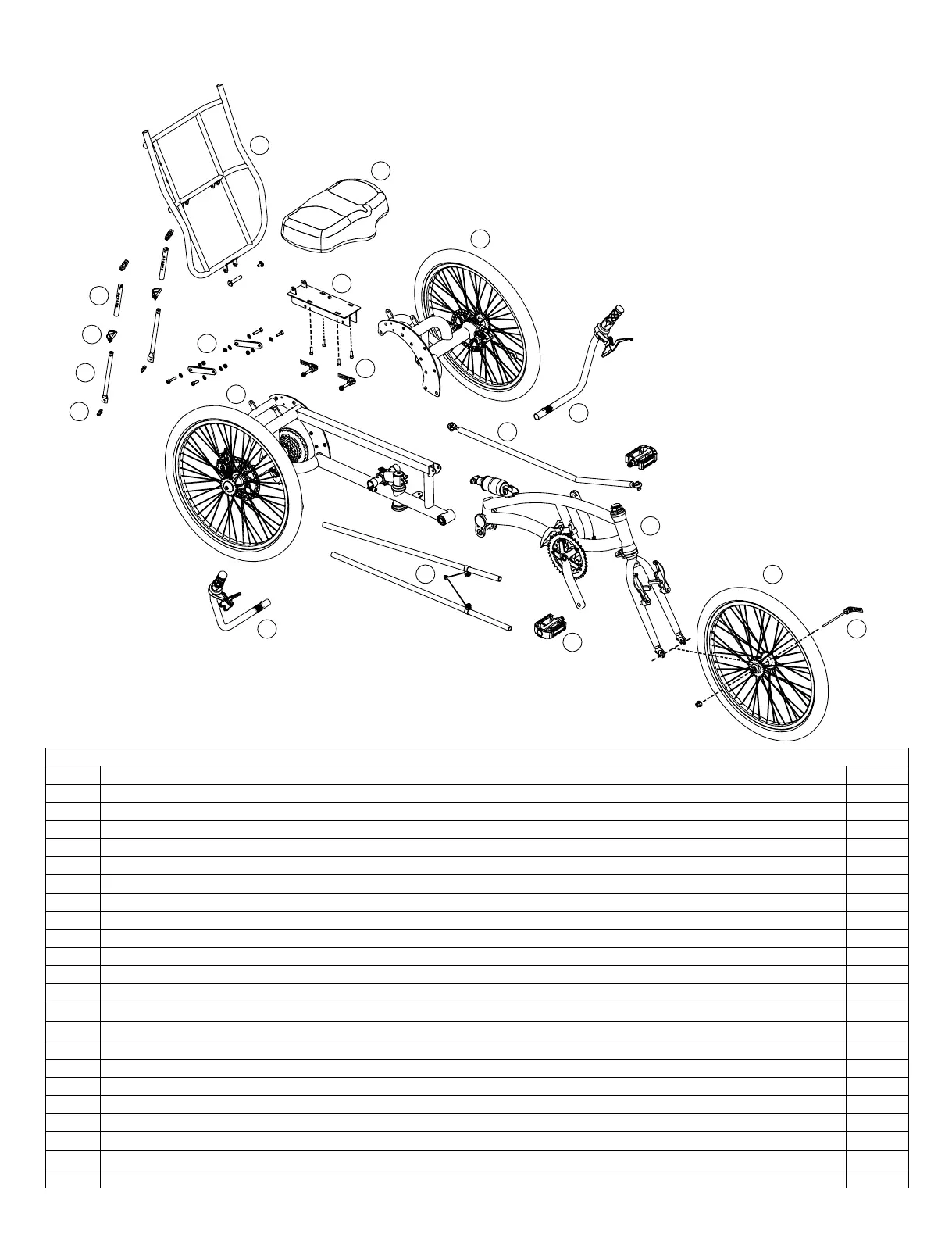

EZ-3 USX HD Assembly Reference
22
6
10
21
7
9
11
12
18
14
16
13
3
8
17
2
1
19
20
