Handlebar Assembly Installation
Left Handlebar Assembly Right Handlebar Assembly

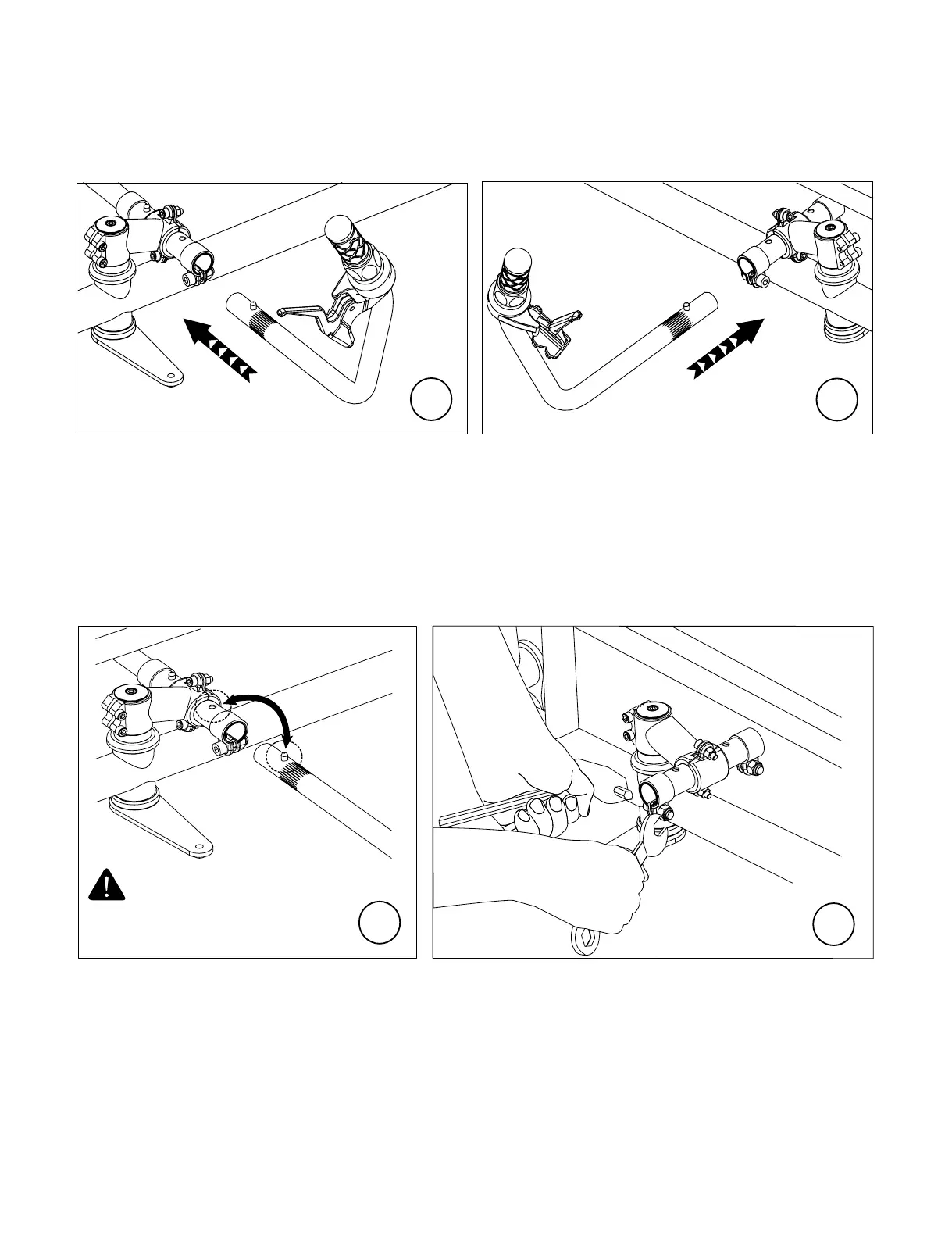

Install #8 Left Handlebar Assembly into handlebar stem located beneath the #2 Rear Unit Right Side Assembly, insert fully in order to engage handlebar
safety pin into stem. See Figure D.
Install #9 Right Handlebar Assembly into handlebar stem located beneath the #2 Rear Unit Right Side Assembly, insert full in order to engage handlebar
safety pin into stem. See Figure E.
Tighten handlebar stem onto #8 and #9 Handlebar Assemblies using supplied hardware. See Figure G.
Once handlebar assembly positions are set you can now adjust the brake and shift controls for comfort. Secure shift and brake cables along handlebar
assembly using provided zip ties.
NOTE: DO NOT extend handlebar assemblies past their marked safety line. Handlebar safety pin must be fully engaged into stem.
See Figure F.
Check that handlebar safety pin is
fully engaged into stem
D
E
F
WARNING: Make sure once you have made all your handlebar, stem and control adjustments that you do not have any leg, knee or tire interfer-
ence with the handlebar or controls. Failure to do so may result in loss of control resulting in a serious or fatal accident.
