Sun Microsystems EZ-3 USX HD - Assembly Guide; Rear Frame Installation; Main Frame Installation; Front Wheel Installation

B
Rear Frame Installation
Main Frame Installation
Front Wheel Installation
Assembly Guide

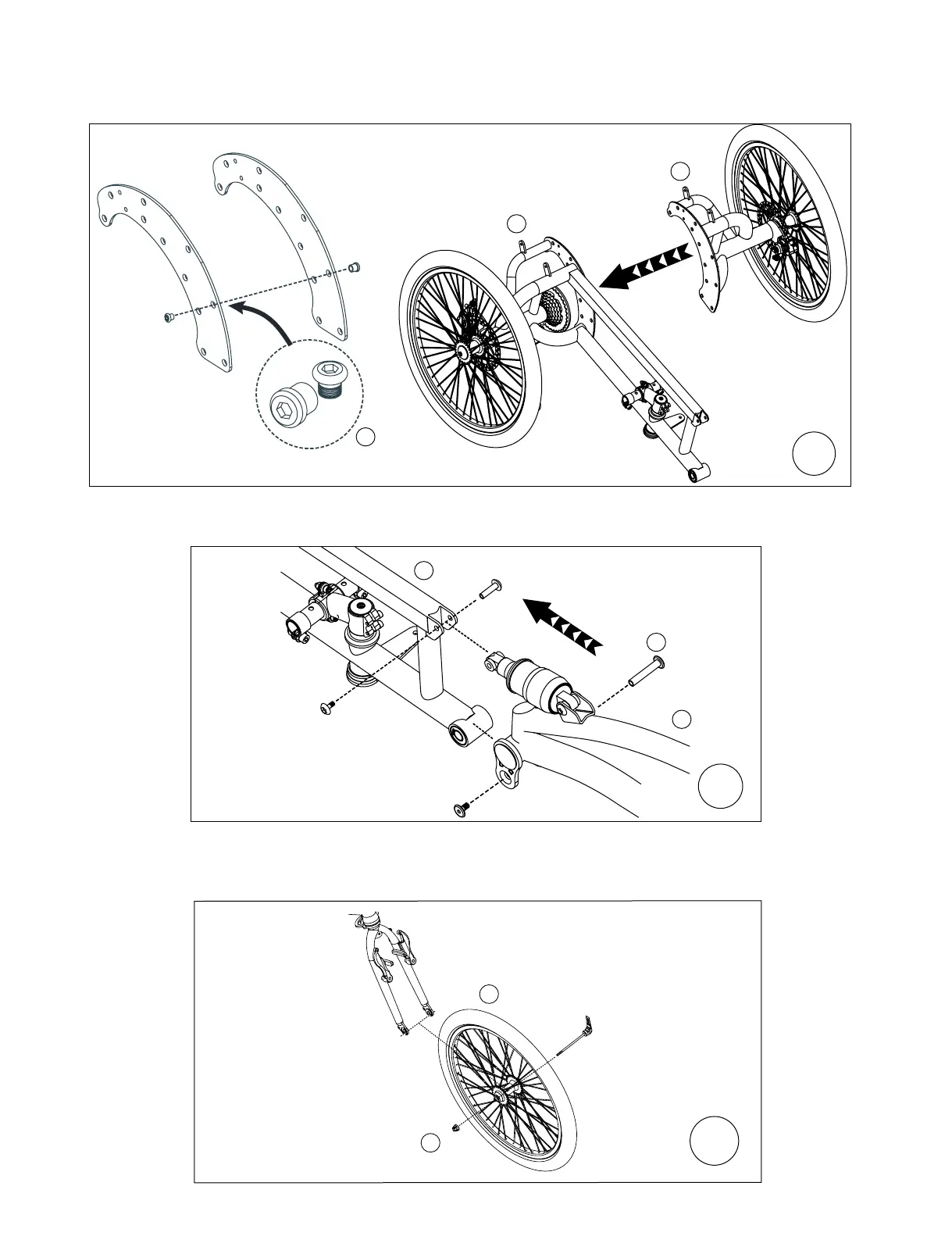

Install #3 Rear Unit Left Side Assembly onto #2 Rear Unit Right Side Assembly using #4 Rear Unit Hardware. Tighten rear unit hardware evenly. See
Figure A.
Install #2 Rear Unit Right Side Assembly to #1 Main Frame Assembly using the #5 Frame Pivot and Shock Hardware Set. Lightly grease pivot and shock
bushing.Tighten main pivot bolt to 12Nm (106 in Lbs.) See Figure B.
2
3
A
4
2
1
5
Install #7 Front Wheel Assembly into front fork dropouts. Install #6 Front Wheel Quick Release and tighten securely. See Figure C.
NOTE: Refer to Sun Seeker Recumbent Bicycle / Tricycle Owner’s Manual for proper quick release operation.
C
7
6
