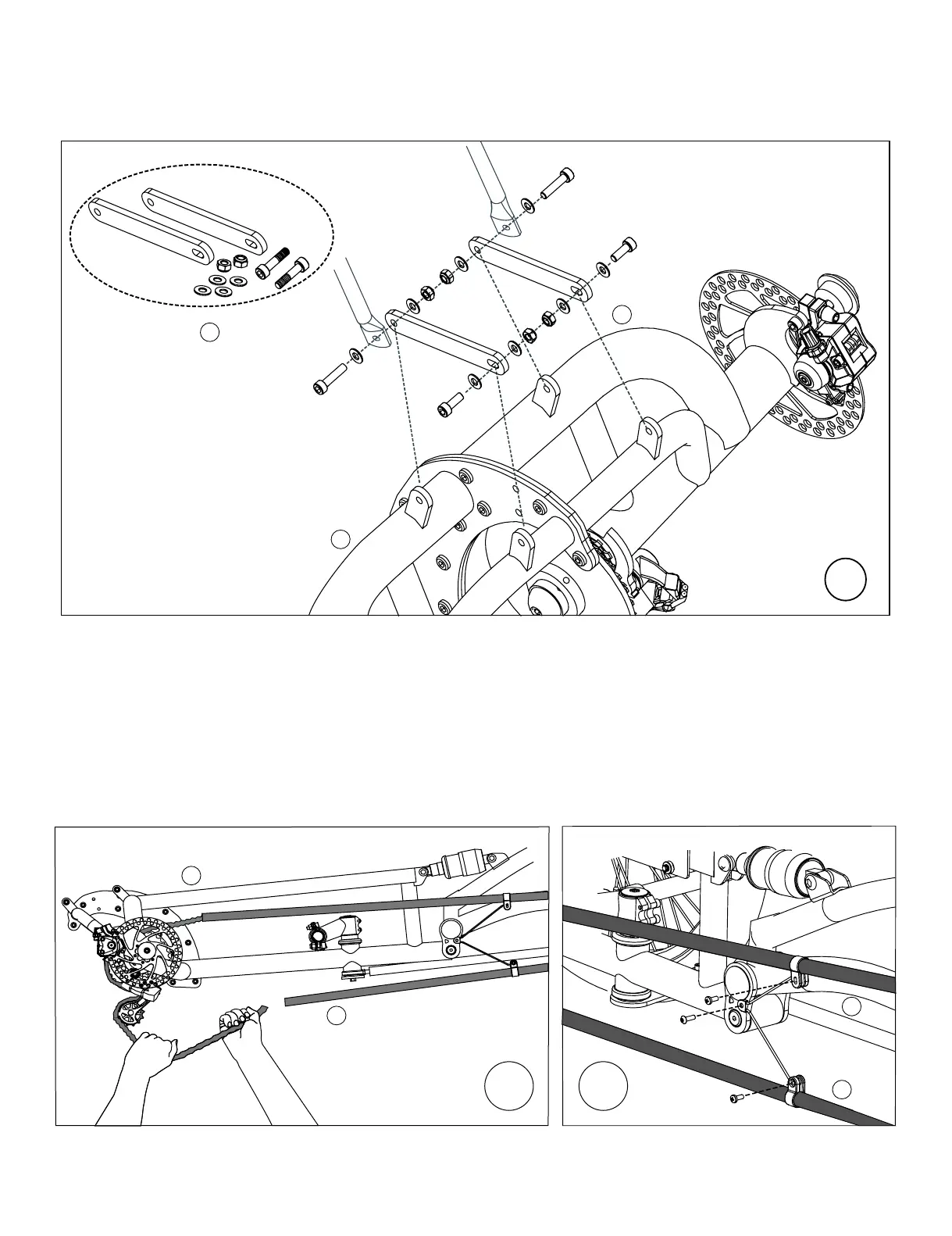

Seat Strut Tab Brace Installation
Install #20 Seat Strut Tab Brace onto the rear tabs of the Main Frame and Rear Unit Assembly.
Install #18 Lower Seat Strut on top of this brace on either seat strut tab, based on rider t. See Figure N.
N
20
Chain Tube Assembly Installation
Insert chain into lower #21 Chain Tube Assembly, moving toward front of recumbent. Position lower chain tube beneath handlebars, route chain beneath
and over front chainring, through front derailler and into upper #21 Chain Tube Assembly, now moving toward rear of recumbent.
With the open chain pin now captured in bottom chain tube and chain routed properly around crank, position top chain tube above handlebars. Route chain
over freewheel and through rear derailleur, join chain at open chain pin. See Figure O.
Install #21 Chain Tube Assembly to #1 Main Frame at frame pivot bolt using supplied hardware and spring. Position chain tubes to avoid interference with
chainrings and front derailleur. See Figure P.
1
21
21
2
O P
3
2
