Saddle Assembly Installation

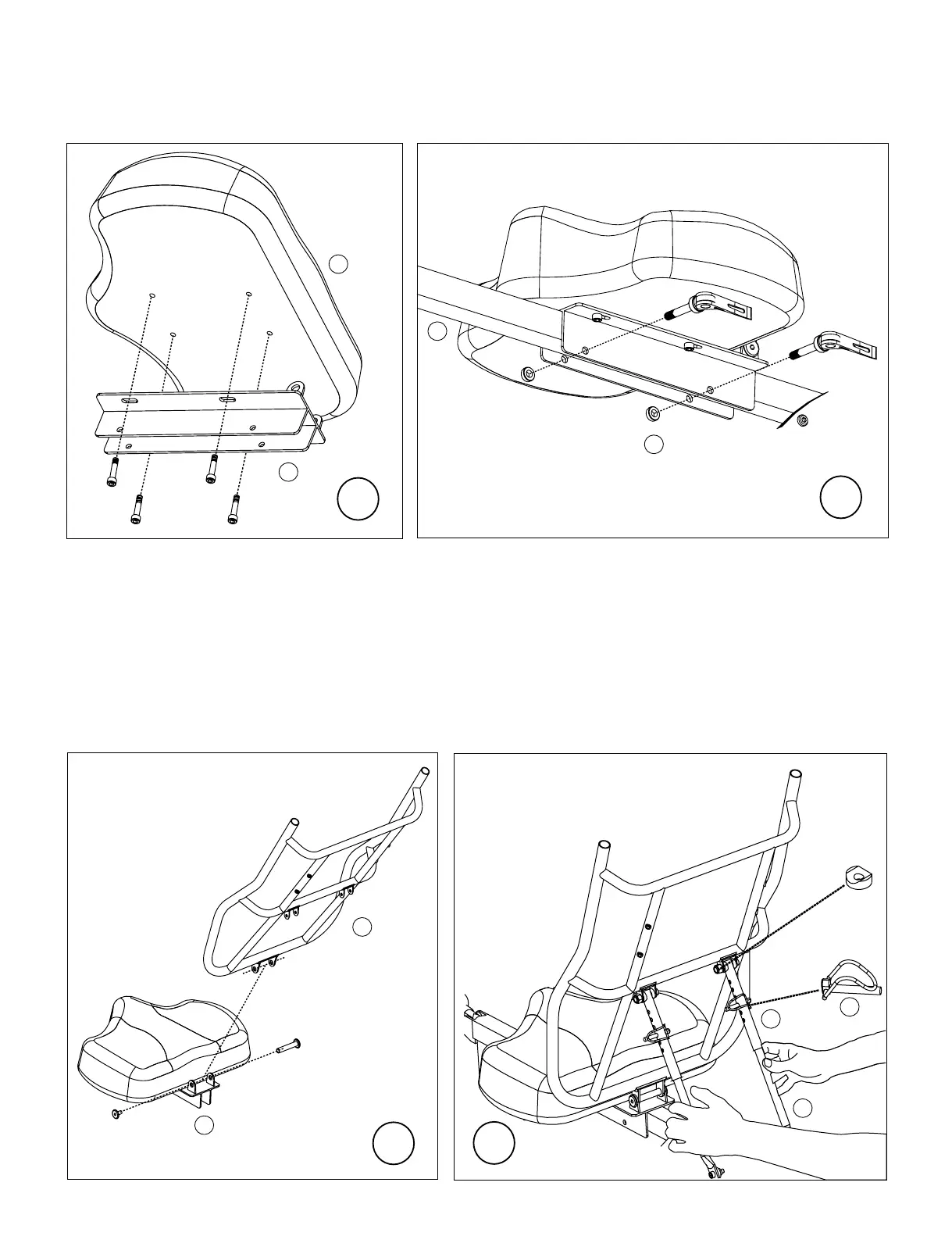

Install #11 Seat Mount to bottom of #13 Saddle with seat back frame tabs to rear of saddle. See Figure J.
Install #11 Seat Mount onto #1 Main Frame Assembly and secure with #12 Seat Mount Hardware Set. See Figure K.
Install #14 Seat Back Frame to #11 Seat Mount using provided large pivot bolt. See Figure L.
Install #16 Upper Seat Struts and ½ moon washers into the rear tabs on the #14 Seat Back Frame using the #19 Seat Strut Hardware Set.
Install #18 Lower Seat Struts onto the rear tabs of the Main Frame and Rear Unit Assembly, adding #20 Seat Strut Tab Brace. Use front tabs for shorter
riders, rear tabs for taller riders. See Figure N.
Insert the lower struts into the upper struts and use #17 Strut Pins to secure the struts. See Figure M.
Install #15 Seat Mesh over #14 Seat Back Frame by rst inserting upper posts of Seat Back Frame into stitched pockets at top of seat mesh, then by wrap-
ping bottom of seat mesh beneath bottom of seat back frame and buckling its nylon clips behind seat back frame.
