Sun Blade 150 CD-ROM, DVD-ROM, and Hard Drive Installation 9

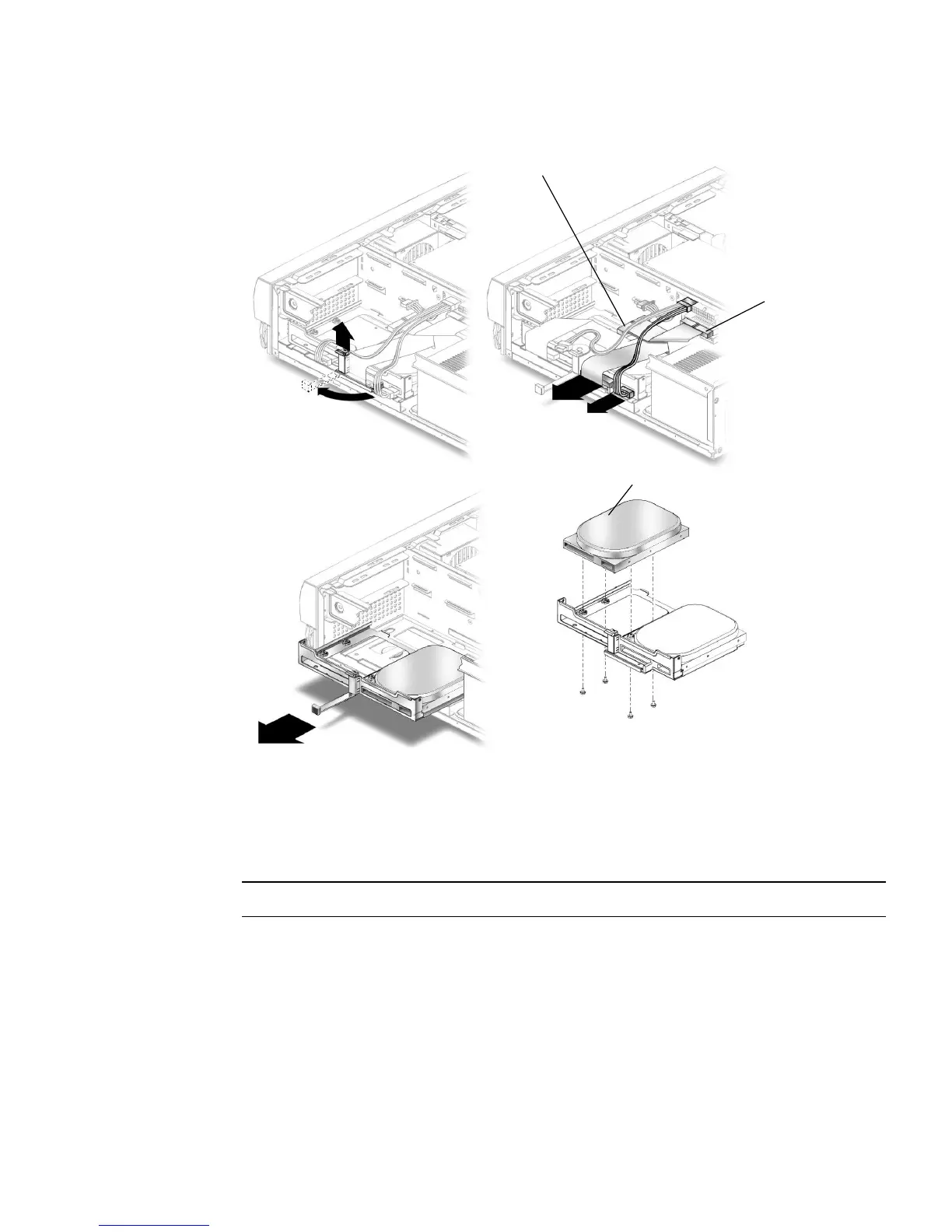

FIGURE 5 Installing a Secondary Hard Drive
10. Verify that the secondary IDE cable connector is connected to riser board
connector IDE2 (J503). See
FIGURE 7.
Note – Ensure that the cables are properly oriented by aligning the connector keys.
11. Verify that the CD-ROM or DVD-ROM cable is connected to the primary (IDE1,
J504) cable connector labeled CD/DVD (
FIGURE 5 and FIGURE 6).
12. Connect the hard drive IDE cable connector labeled “Primary HDD” to the
primary hard drive.
Secondary hard drive
1
2
3
4
CD/DVD-ROM drive
IDE 1 (J504)
IDE cable connector
