10 Sun Blade 150 CD-ROM, DVD-ROM, and Hard Drive Installation Guide • June 2002

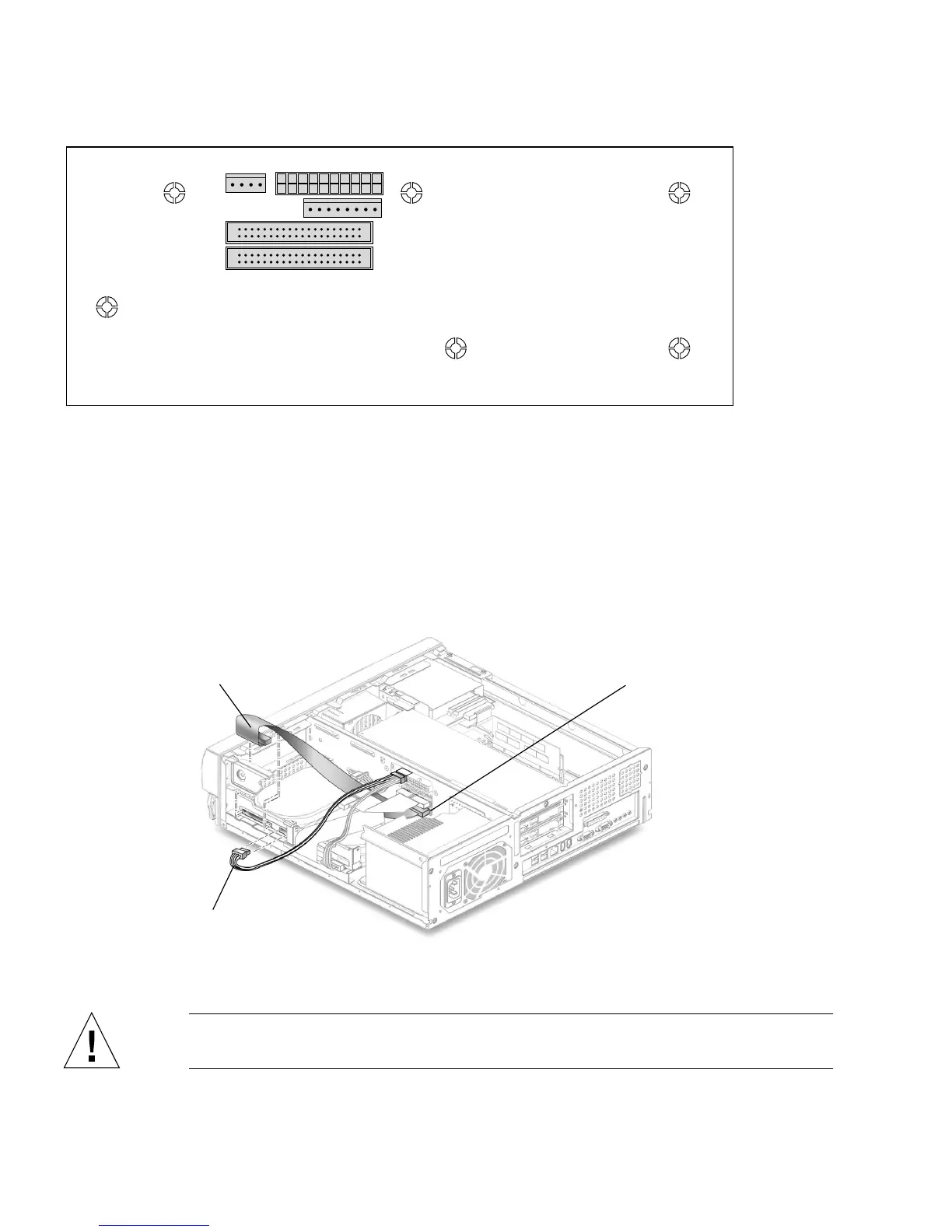

FIGURE 6 Riser Board, Side Two
13. Connect the power cable to the secondary hard drive (FIGURE 7).
14. Connect the power cable to the primary hard drive.
15. Connect the secondary hard drive to the cable connector labeled “Secondary
HDD”.
The following diagram shows the cabling for the secondary hard drive.
FIGURE 7 Secondary Hard Drive Cabling Configuration
Caution – Ensure that the cables will not be damaged when you replace the system
cover.
J502
J501
J504
J503
IDE 1
IDE 2
IDE2 (J503)
Power cable
Secondary HDD
