Quarter -Turn Electric Valve Actuator【OM Series】 Sun Yeh Ele. Ind. Co., Ltd. | 2021.11
15

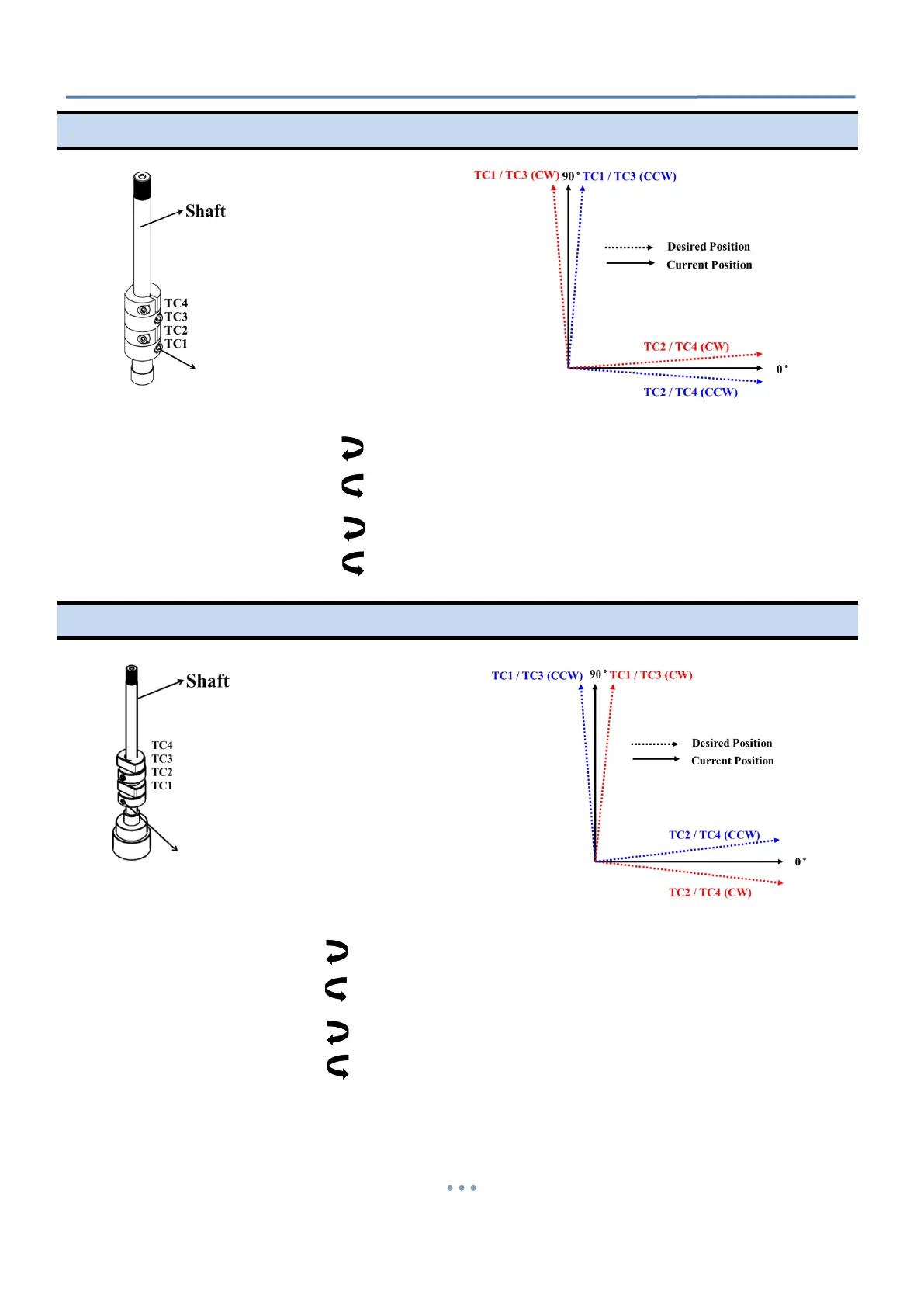

OM-2 to OM-13, OM-F, OM-G and OM-H
OM-J
TC2 “CLOSE”
TC4 (Optional Item)
TC1 “ OPEN”
TC3 (Optional Item)
Clockwise: decrease closing degree.
Counter-clockwise: increase closing degree.
Clockwise: increase opening degree
Counter-clockwise: decrease opening degree.
TC2 “CLOSE”
TC4 (Optional Item)
TC1 “ OPEN”
TC3 (Optional Item)
Clockwise: increase closing degree.
Counter-clockwise: decrease closing degree.
Clockwise: decrease opening degree.
Counter-clockwise: increase opening degree.
Set Screw M4
Set Screw M3
