CAUTION: Due to diversification of lithium battery types, its control voltage
shall be confirmed with the engineer.
③ User settings
(1)Setting the control voltage value
The following rules must be observed when modifying the parameter values in
User for lead-acid battery.
Ⅰ . Over Voltage Disconnect Voltage > Charging Limit Voltage ≥ Equalize
Charging Voltage ≥ Boost Charging Voltage ≥ Float Charging Voltage > Boost
Reconnect Charging Voltage.
Ⅱ. Over Voltage Disconnect Voltage > Over Voltage Reconnect Voltage
Ⅲ. Low Voltage Reconnect Voltage > Low Voltage Disconnect Voltage ≥
Discharging LimitVoltage.
Ⅳ. Under Voltage Warning Reconnect Voltage > Under Voltage Warning Voltage
≥ Discharging Limit Voltage.
Ⅴ. Boost Reconnect Charging voltage > Low Voltage Disconnect Voltage.
The following rules must be observed when modifying the parameter values in
User for lithium battery.
Ⅰ. Over Voltage Disconnect Voltage>Over charging protection
voltage(Protection CircuitModules(PCM))+0.2V
※
；
Ⅱ. Over Voltage Disconnect Voltage>Over Voltage Reconnect Voltage＝
Charging Limit Voltage ≥ Equalize Charging Voltage＝Boost Charging Voltage
≥ Float Charging Voltage>Boost Reconnect Charging Voltage；
Ⅲ. Low Voltage Reconnect Voltage>Low Voltage Disconnect Voltage ≥
Discharging Limit Voltage；
Ⅳ. Under Voltage Warning Reconnect Voltage>Under Voltage Warning Voltage≥
Discharging Limit Voltage；
Ⅴ. Boost Reconnect Charging voltage>Low Voltage Disconnect Voltage.；
Ⅵ. Low Voltage Disconnect Voltage ≥ Over discharging protection voltage
(PCM)+0.2V
※
；
WARNING: The required accuracy of PCM shall be at least 0.2V. If the
deviation is higher than 0.2V, the manufacturer will assume no liability for
any system malfunction caused by this.

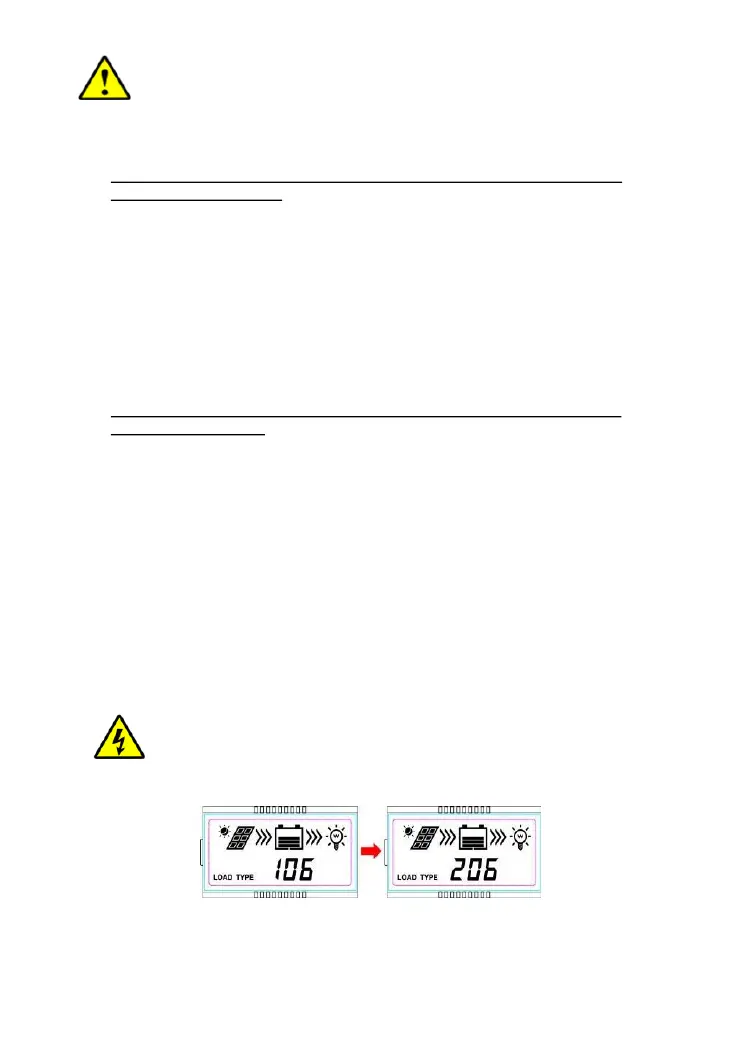

4) Local load mode
