SUNESS EV-5.12M - Installation Instructions; Requirements for Installation Location; Installation procedure

LiFePO4 Battery System LiFePO4 Battery System
Installation environment
Max +55℃ Min -10℃
RH.+5%~+95%
8.4 Terminal connection

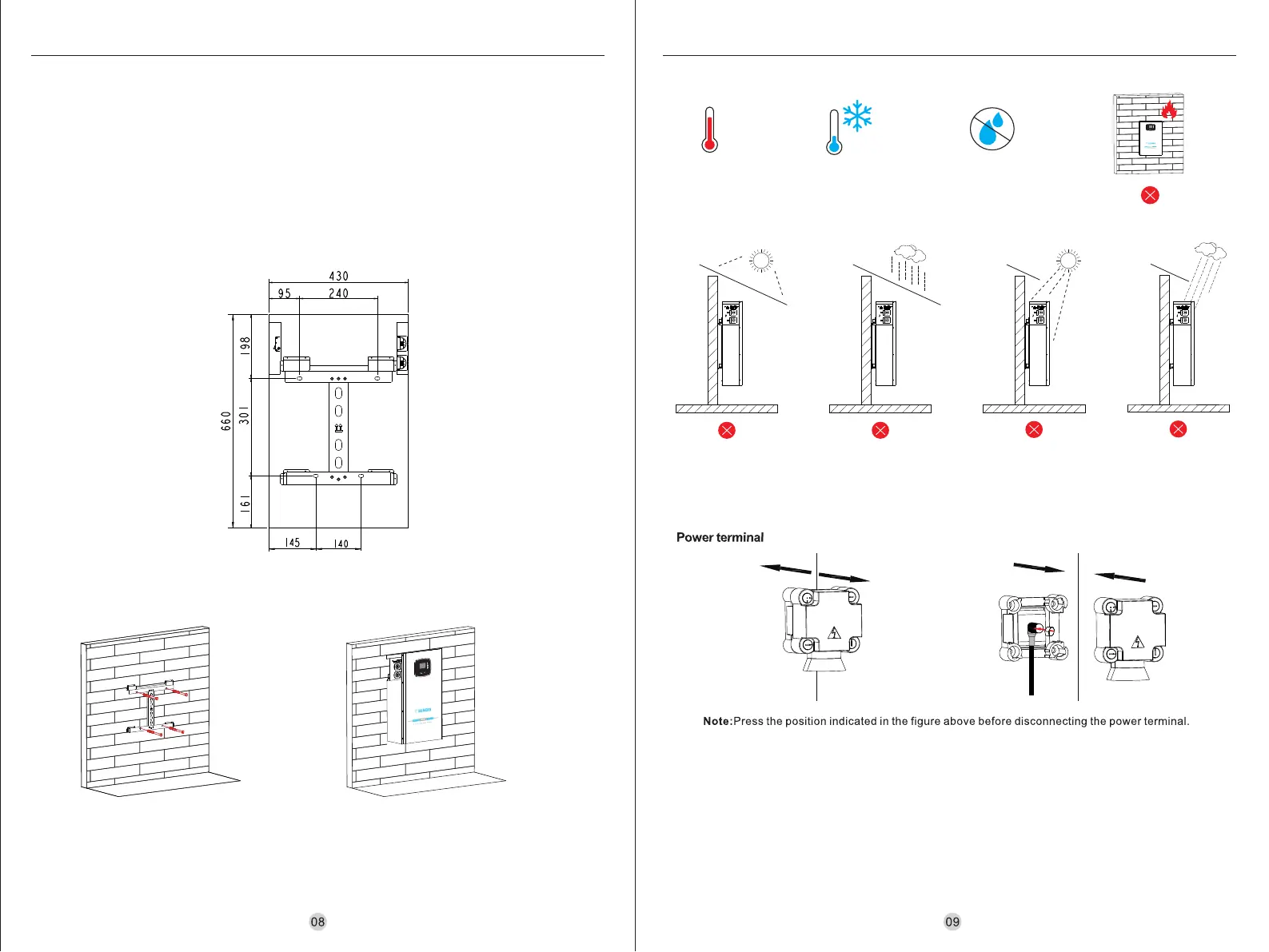

Installation procedure
Requirements for Installation Location
a) A solid support surface must be available (e.g., concrete or masonry).
b) The installation location must be indoors.
c) The installation location must be inaccessible to children.
d) The installation location must be tolerable for the weight and dimensions of the battery system.
e) The installation location must not be exposed to direct sunlight.
f ) The installation location must not be close to open flame or flammable substances.
g) The altitude of the installation location should be less than 3000m.
h) The ambient temperature should be between -10°C and +55°C.
I ) The relative humidity should be range from 5% to 95%.
8.3 Installation instructions
RUNALM
SOC
