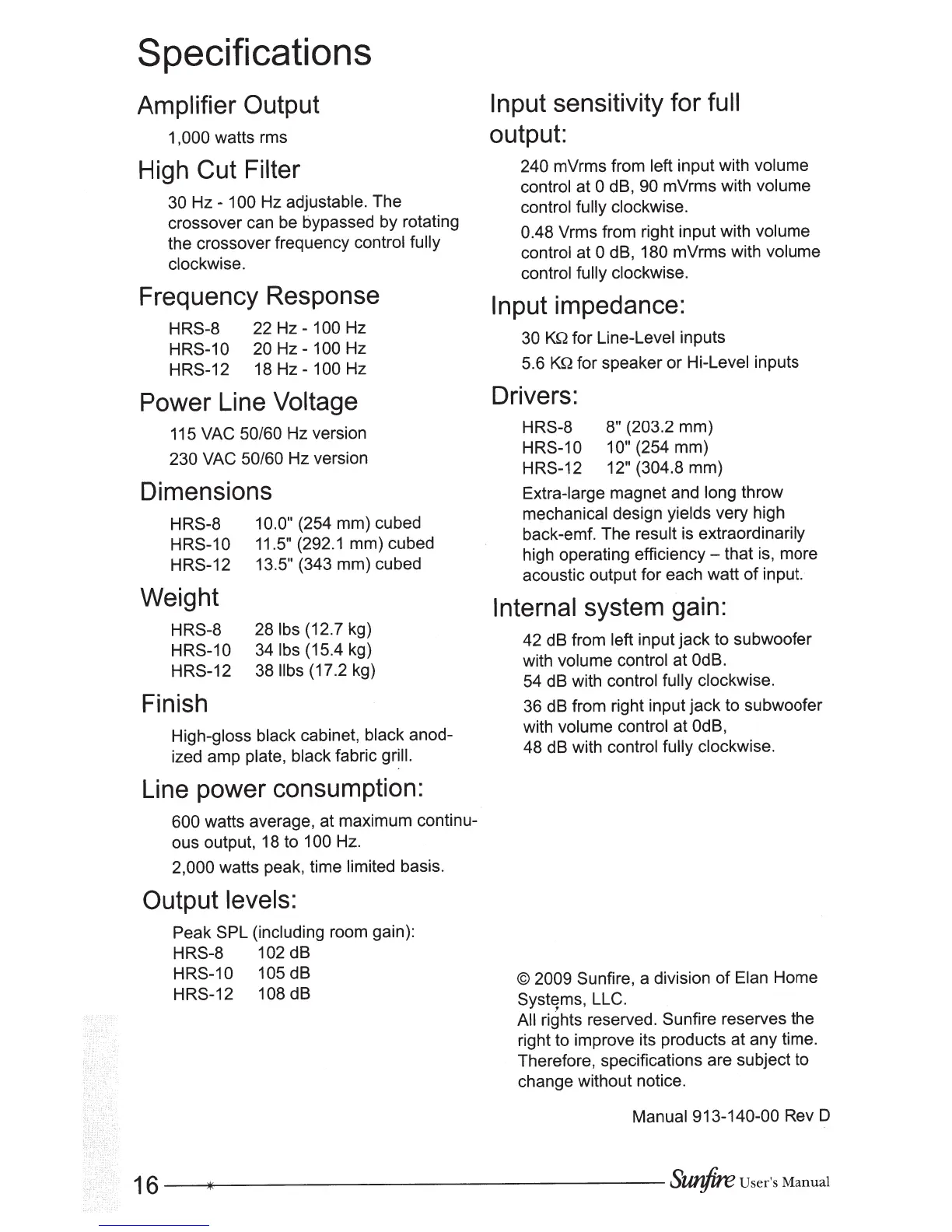

Specifications
Amplifier
Output
1 ,
000
watts rms
High
Cut
Filter
30
Hz
- 100 Hz adjustable. The
crossover can be bypassed by rotating
the crossover frequency control
fully
clockwise.
Frequency
Response
HRS-8
HRS-10
HRS-12
22Hz-100Hz
20Hz-100Hz
18Hz-100Hz
Power
Line
Voltage
115
VAC 50/60
Hz version
230 VAC 50/60
Hz version
Dimensions
HRS-8
HRS-10
HRS-12
Weight
HRS-8
HRS-10
HRS-12
Finish
1
0.0"
(254 mm) cubed
11.5"
(292.1 mm) cubed
13.5"
(343 mm) cubed
28
lbs
(12. 7 kg)
34
lbs
(15.4 kg)
38
llbs
(17.2 kg)
High-gloss
black cabinet,
black
anod-
ized amp plate, black
fabric grill.
Line
power
consumption:
600
watts average, at maximum continu- .
ous output, 18 to 1
00
Hz.
2,000
watts peak, time limited basis.
Output
levels:
Peak
SPL (including room gain):
HRS-8
102dB
HRS-10 105
dB
HRS-12 108
dB
Input
sensitivity
for
full
output:
240 mVrms from left
input with
volume
control
at
0
dB,
90 mVrms
with
volume
control fully clockwise.
0.48 Vrms from right input with
volume
control at 0 dB,
180 mVrms
with
volume
control fully
clockwise.
Input
impedance:
30
KQ
for Line-Level inputs
5.6
KQ
for speaker
or
Hi-Level inputs
Drivers:
HRS-8 8" (203.2
mm)
HRS-10 10"
(254 mm)
HRS-12 12" (304.8
mm)
Extra-large magnet and long
throw
mechanical design
yields
very high
back-emf. The
result
is extraordinarily
high operating
efficiency-
that is, more
acoustic output for each watt
of
input.
Internal
system
gain:
42 dB from
left
input
jack
to subwoofer
with
volume control at
OdB.
54 dB with
control fully clockwise.
36 dB from right input
jack
to subwoofer
with volume
control at
OdB,
48 dB with control
fully clockwise.
©
2009 Sunfire, a division
of
Elan
Home
Systems, LLC.
All
rights reserved. Sunfire reserves the
right to improve its products at any time.
Therefore, specifications are subject to
change without notice.
Manual 913-140-00
Rev D
