4. Similarly to the leg assembly, locate and remove the nuts, locking washers, and spacers from the bolts
attaching the upper frame to the tank on the front of the unit. Discard the spacers and reuse the bolts,
washers, locking washers, and nuts, plus two (2) each of the 1/4”-20tpi x 1-1/2” frame-mount bolts and
associated washers and nut included in the packaging to affix the foot assembly to the unit using the same
fastener arrangement shown in the previous step. Ensure the fasteners are securely tightened before
proceeding.
ATTACH AXLE ASSEMBLY
ATTACH WHEELS
TO ASSEMBLE THE UNIT (CONT.):
Getting Started:
5. After attaching the axle frame to the heater assembly, feed the raised hub of the wheels onto the axle
(flatter side of the wheels facing away from the fuel tank) and use a mallet or hammer to install the cap
nuts provided in the packaging to the ends of the axle, retaining the wheels.

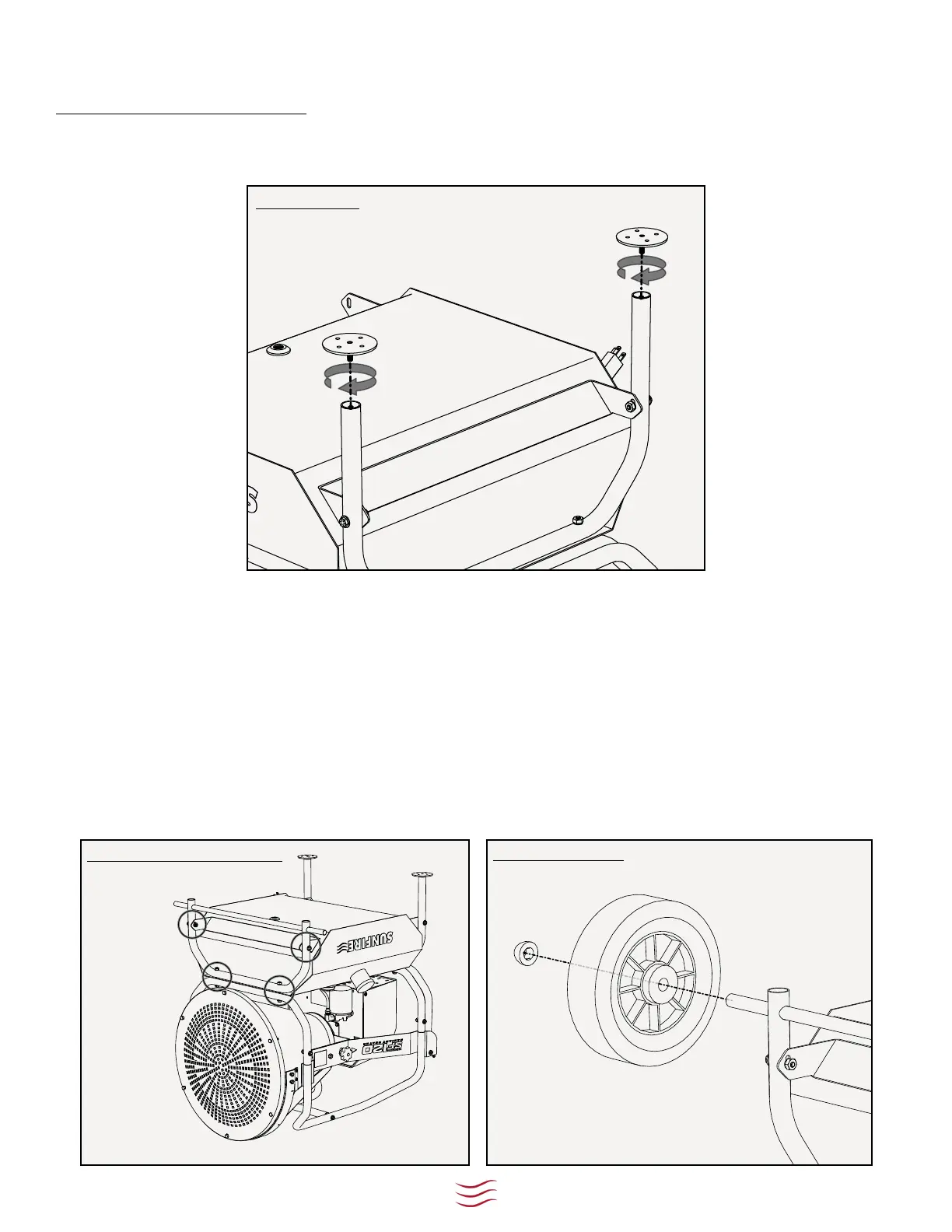

3. When attaching the leg assembly to the heater, locate the two (2) leveling feet included in the packaging
and screw them into the threads in the ends of the foot assembly frame.
ATTACH FEET
To Next Page
