SunFounder Pironman

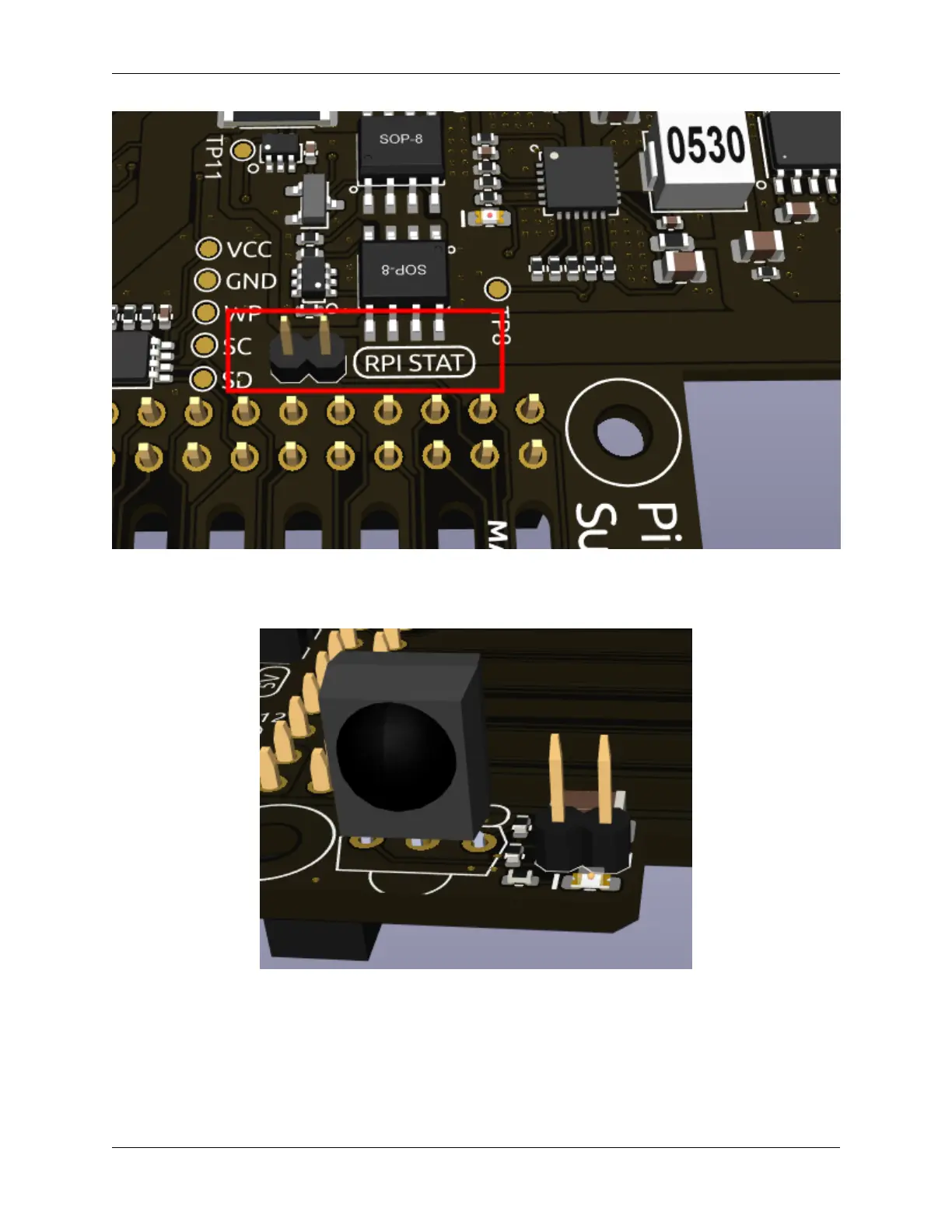

6.2.4 Infrared Receiver
• Model: IRM-56384, operating at 38KHz.
• Two pins for enabling the infrared function. By default, a jumper cap is inserted for immediate functionality.
Remove the cap to free GPIO13 if the IR receiver is not in use.
• An infrared reception indicator that blinks upon signal detection.
To utilize the IR receiver, verify its connection and install the necessary module:
42 Chapter 6. 6. About Hardware
