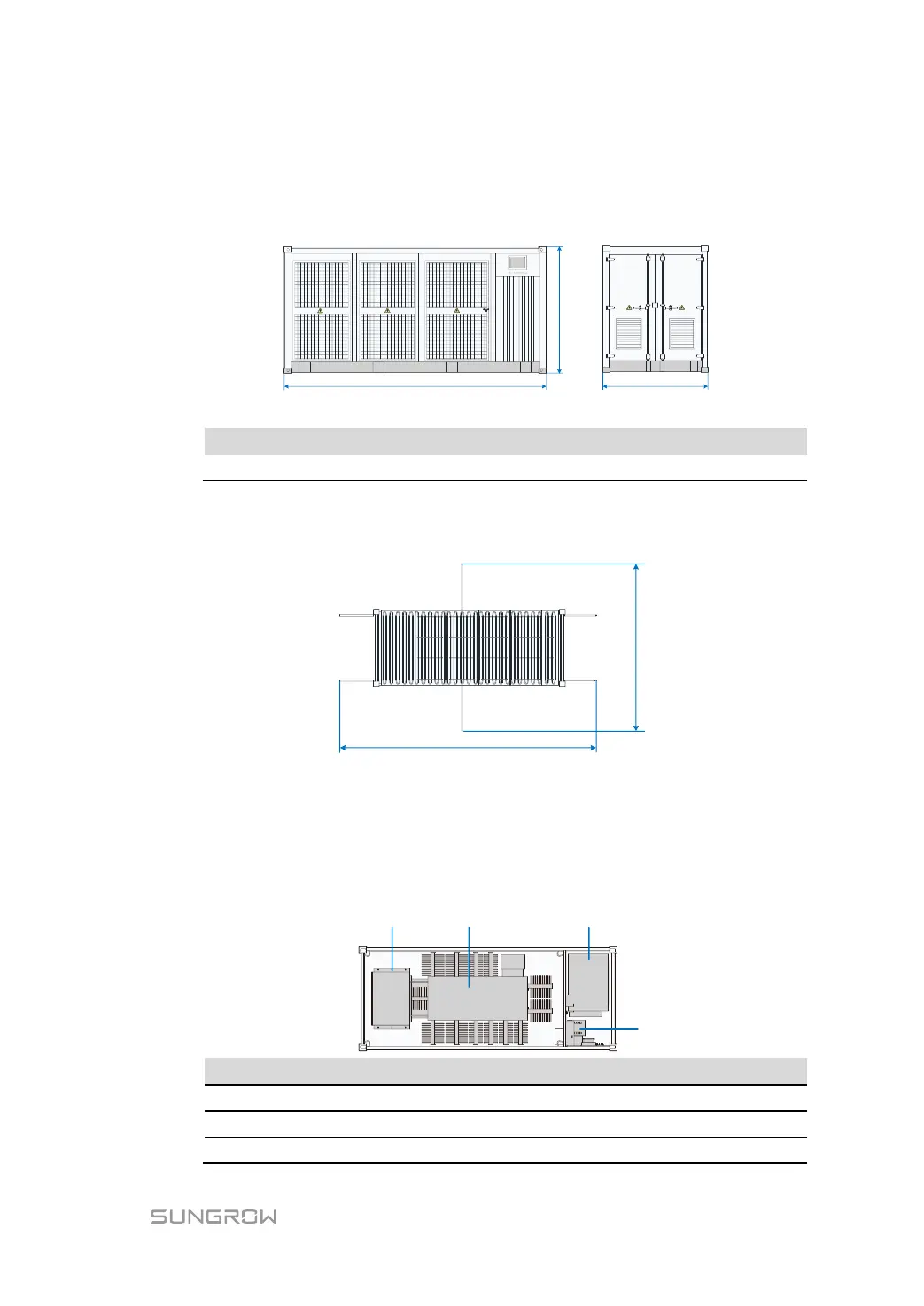

3.2.3 Exterior Dimensions
Dimensions
Width（W）
Height
（H）
Depth（D）
Width(W)
Height(H)
Depth(D)
6,058 mm
2,896 mm
2,438 mm
Clearance Requirements
8219
5349
3.3 Internal Design
3.3.1 Internal Composition
Device layout inside the MV station is as follows:
A
B
D
C
No.
Name
A
LV connection area
B
MV Transformer
C
MV switchgear
