Sungrow SC50HV Quick Installation Guide

6
3 Electrical Connection
Death hazards due to high voltage existing inside the converter!
Make sure that all the DC and AC cables to the converter are not live before
you start the electrical work.
Do not turn on the AC side or DC side circuit breaker until all converter
electrical connections have completed.

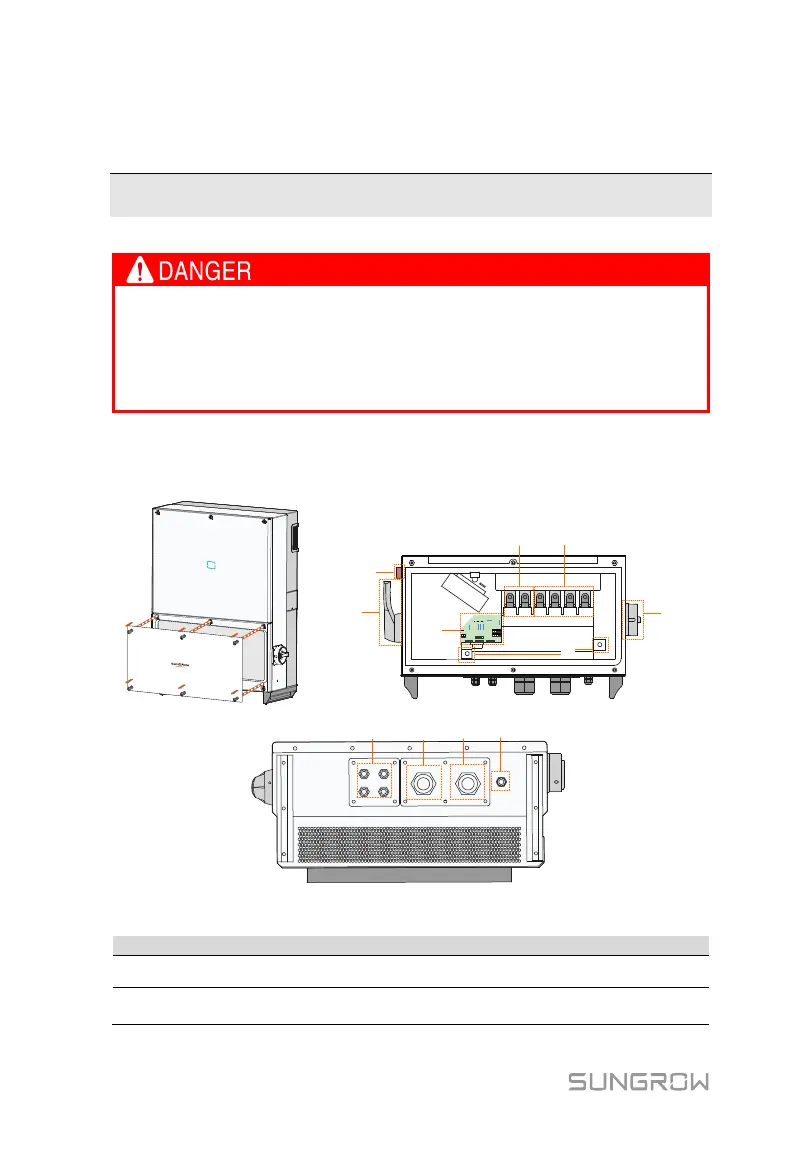

3-1 Open the Connection Cabinet
Loose the six screws on the front cover of the connection cabinet and remove
the front cover to see the internal layout of the connection cabinet.
2
1
3
4
5
7
6
Com.1
Com.3
Com.2
Com.4
BAT Input AC Output
PE Cable
8 9 10 11
*Image shown here is for reference only. Actual product you receive may differ.
No.
Name
Description
1
Start / Stop button
Start / Stop the PCS.
2
Battery switch
Protective components to safely disconnect
DC side current.
