4.5.1 Bracket-Mounted Installation
Tool preparation
Name Specification
Marker
—
Level
-
Hammer drill Bit: φ12
Wrench Inner diameter: 16mm
Material preparation
Name Quantity Specification Source
Bolt
assembly
2 M10 Included in the delivery
scope
Steel u-
channel
2
-
Not included in the delivery
scope

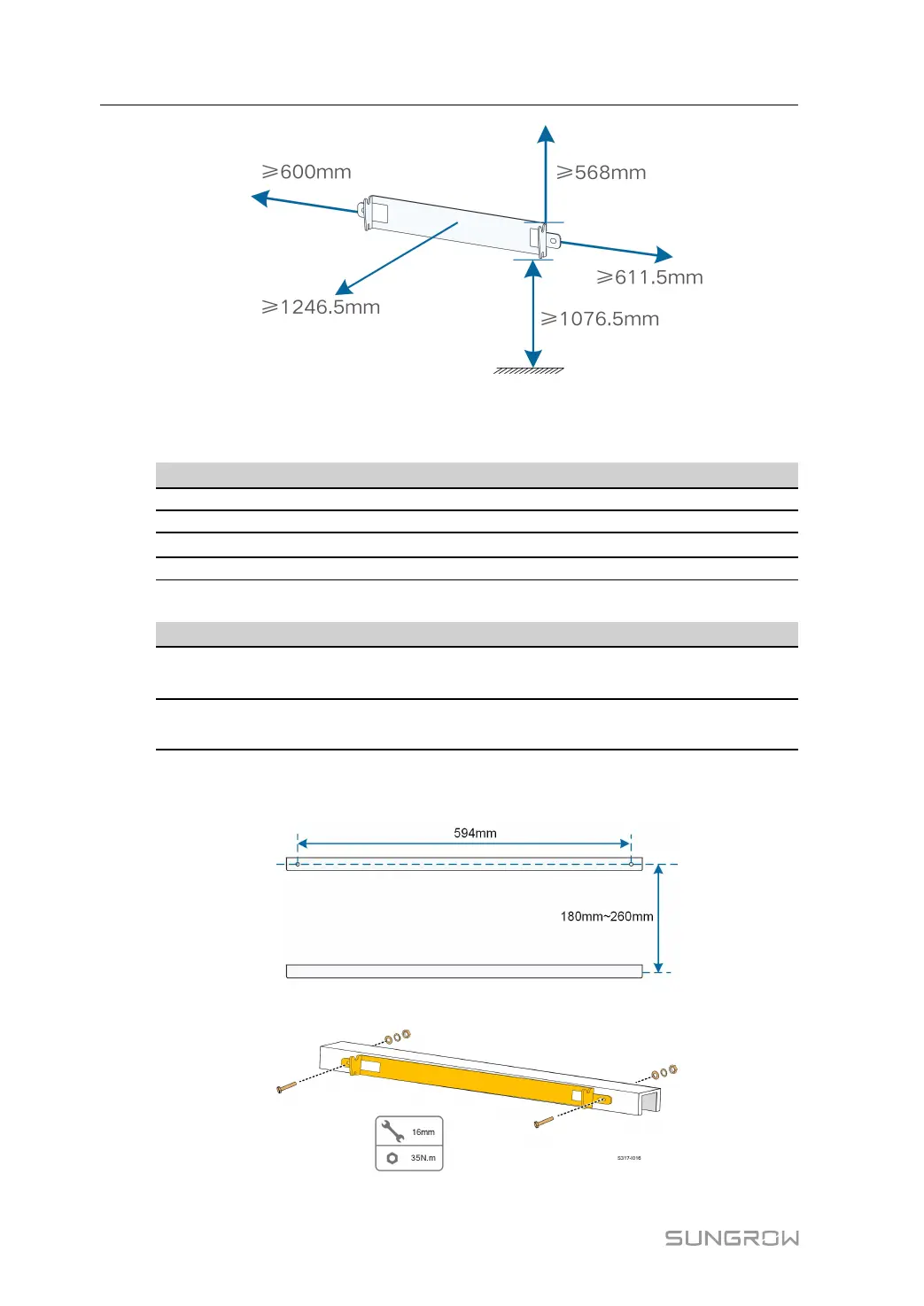

Step 1 Mark and drill holes in one steel u-channel according to the dimensions shown in the figure
below. Two steel u-channels should be spaced 180 mm - 260 mm apart.
Step 2 Secure the mounting-bracket to the steel u-channel with bolts.
4 Mechanical Mounting User Manual

Sungrow SG25CX-P2 Specifications

General

Rated Output Power	25 kW
Max. Input Voltage	1100 V
Start Voltage	200 V
Number of MPPTs	2
Number of DC Input Connections per MPPT	2
Max. AC Apparent Power	27.5 kVA
Total Harmonic Distortion	< 3%
MPPT Voltage Range	200-1000 V
AC Voltage Range	310-480 V
Rated Grid Frequency	50/60 Hz
DC Switch	Yes
Protection Class (According to IEC 62103)	I
Operating Temperature Range	-25°C to 60°C
Warranty	10 years
