13

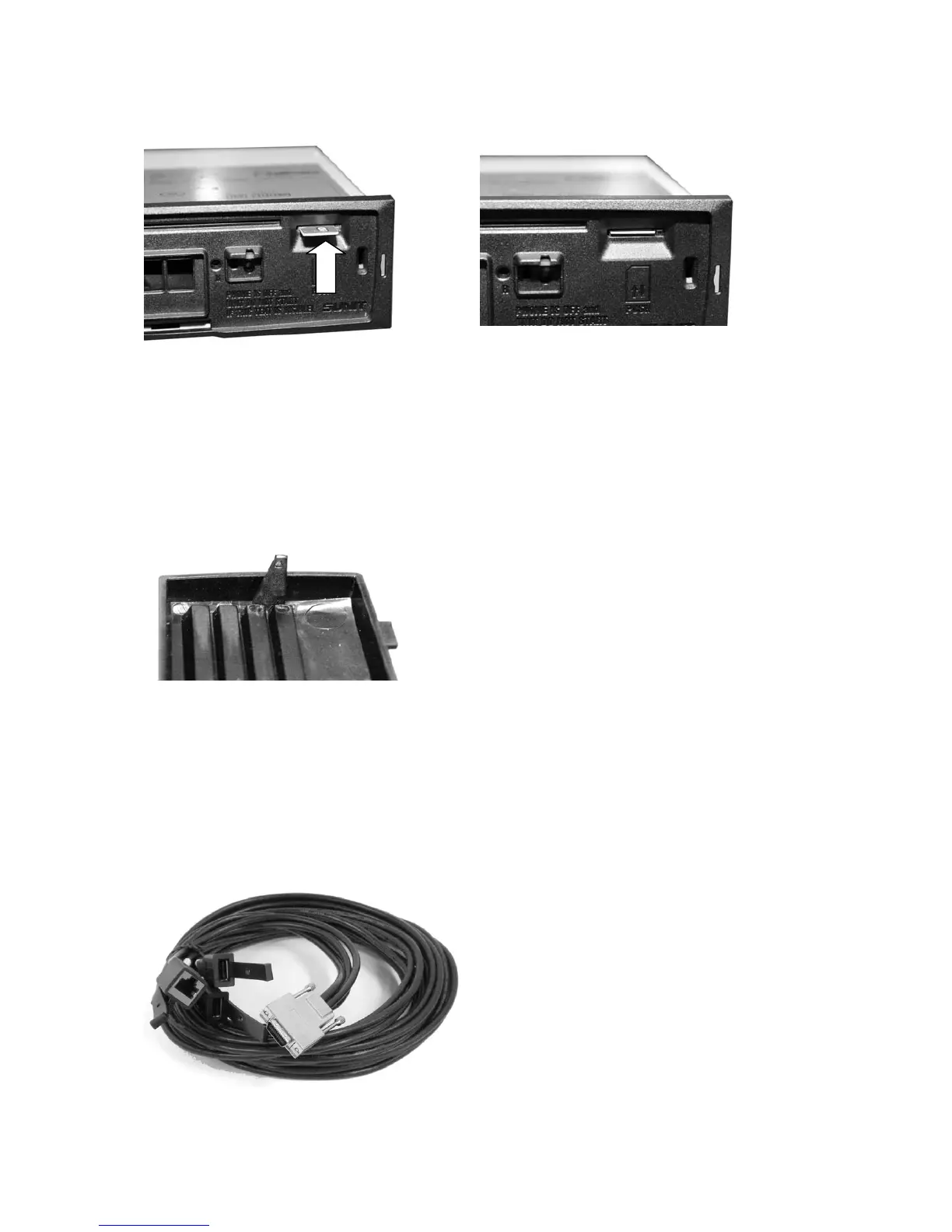

Remove SIM card by pressing it firmly and then pulling it out
NOTE! Disable PIN code query of the SIM card using mobile phone before installing the SIM
card.
3. Attach the front panel.
Placed in the front panel there is a filter to protect the CPU from dust. Therefore the front panel has
been equipped with a detector that indicates is the front panel attached. If the front panel is not
attached, computer will not start and the phone is not functioning.
Please handle the front panel carefully so the detector will not brake.
Connecting BUS 3USB+LAN cable
Central unit has a special BUS connector for 3x USB and LAN(ethernet 10/100 BASE) interfaces.
Connect BUS cable (see picture below) into the central unit’s 3xUSB/1xLAN-connector and use
screws for locking the connector.
