9

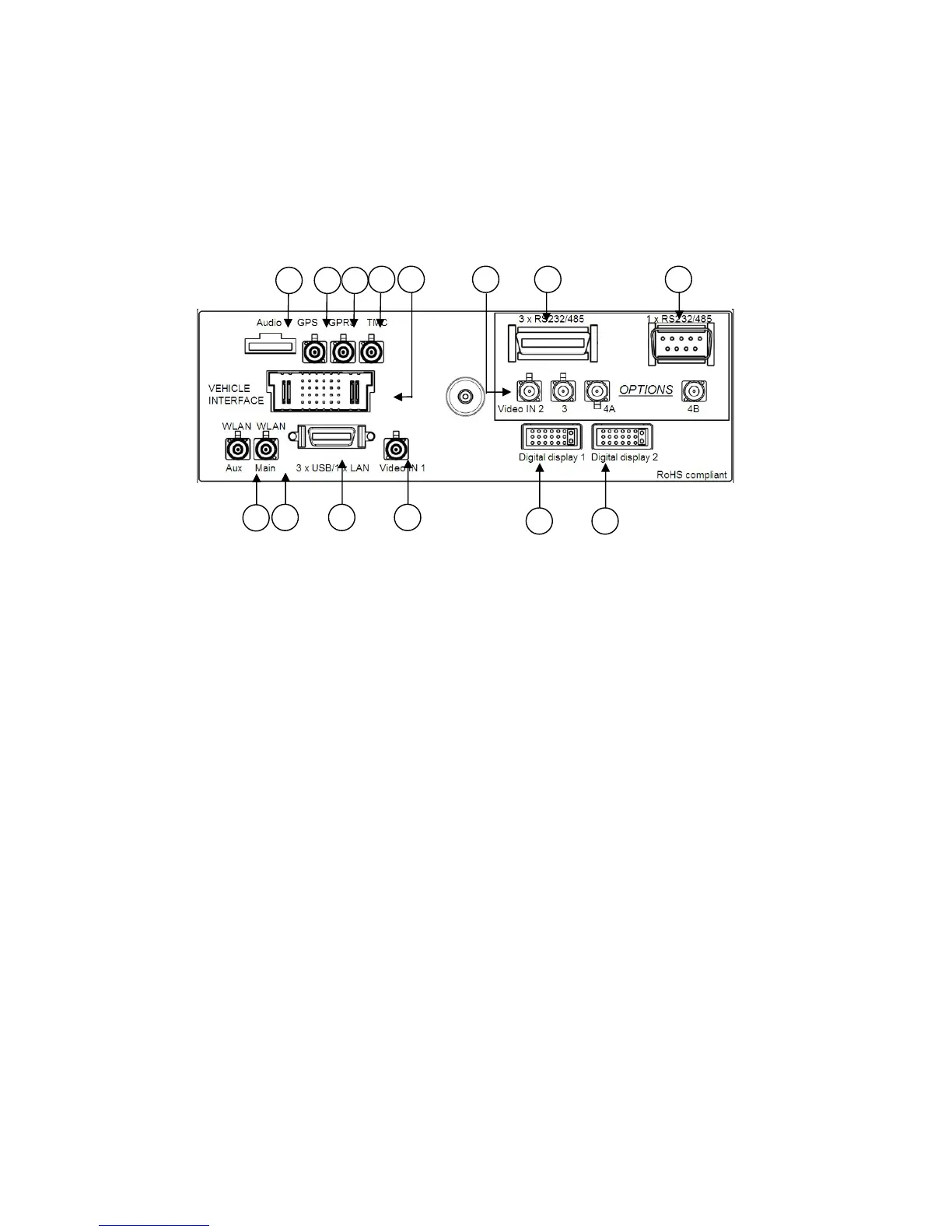

CONNECTIONS
1. WLAN antenna cable connection (brown)
2. WLAN auxiliary antenna connection
3. BUS 3USB+LAN connection (page 11)
4. Video input
5. Main display connection
6. Second display connection
7. Audio input/output connection
8. GPS-antenna connection (blue)
9. GPRS-antenna connection (red)
10. Traffic Message Channel connection
11. Vehicle interface connection
Options:
12. Video inputs 2 - 4B
- input 4A/4B is shared, preferred input can be selected from application
13. 3 x RS232/485 serial connection
14. RS232/485 serial connection
1 2 3 4
5 6
7 8 9 10 11 12 13 14
