8

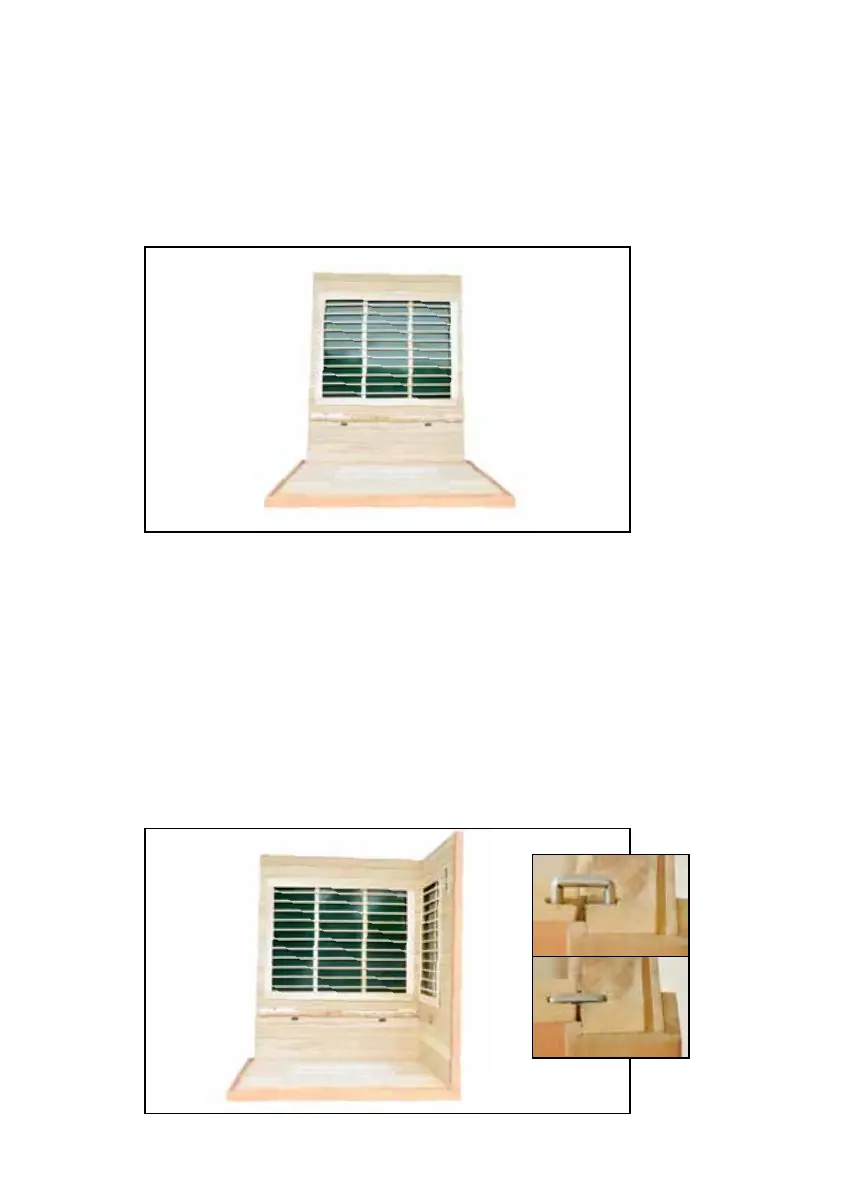

3. PLACING THE REAR PANEL
(A) Place the back panel into the recessed groove in base. Center it’s location
with the raised area on interior floor. One person is required to hold the wall
while the other person continues to the next step.
A
4. CONNECTING THE RIGHT SIDE PANEL
While the rear panel is being held in position, place the right panel with
control panel into the grooved base and gently raise into position. The
magnet system will help to pull the panels together. Pay careful attention to
the power cords at the bottom of the right wall, making sure they are safely
out of the way and accessible once wall is in place.
(B) Place the C shaped piece of stainless steel (C clip) into the groove on top
of the panels to hold them together. Once the C clip is installed correctly
you can let go of the panels.
B
