Installation-Making Electrical Connections
Making Electrical Connections

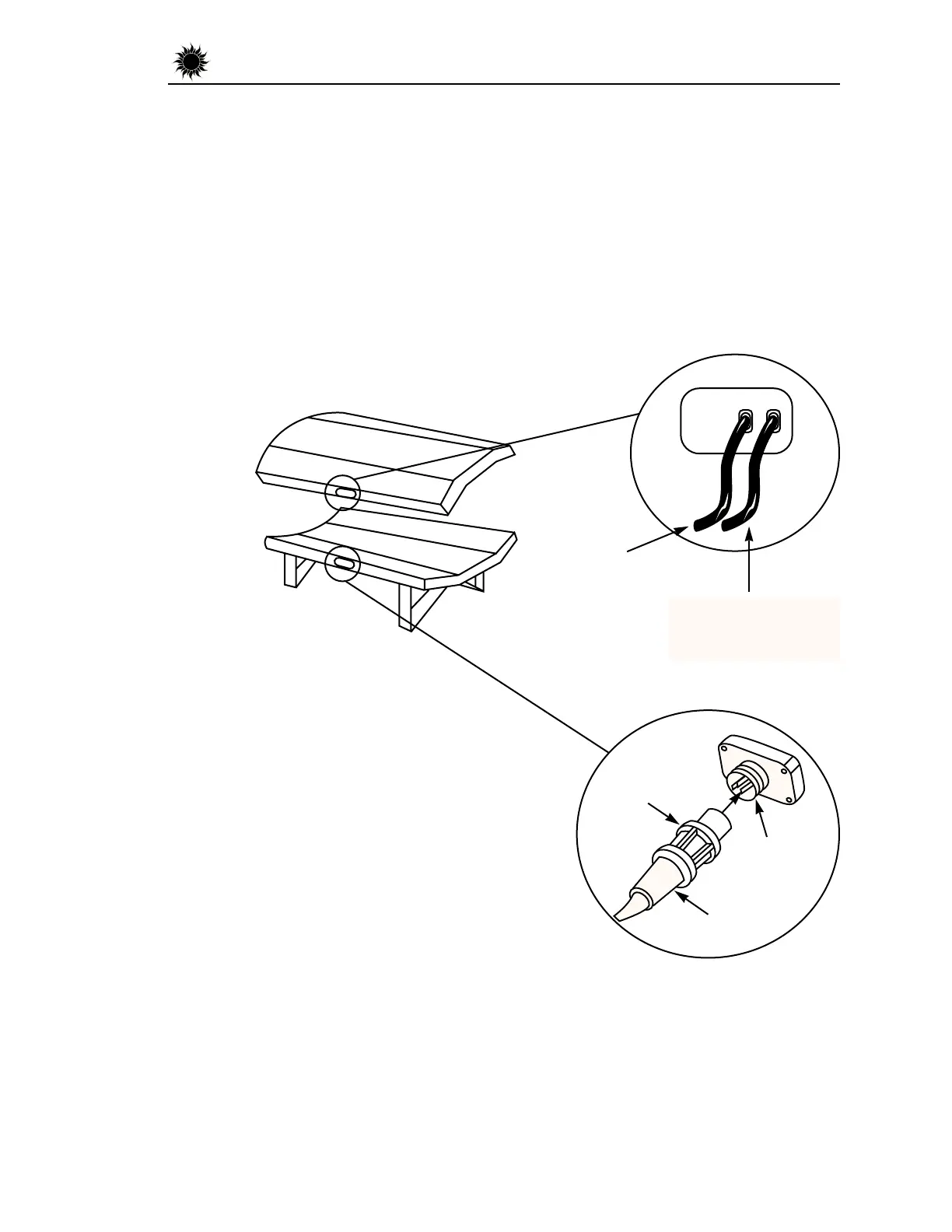

Make electrical connections as shown below.
Warning! Be sure ac power is disconnected before connecting cables.
1. Connect the canopy to bench power cord to the bench receptacle. The plug is
polarized. Align the terminals and firmly push on until seated then tighten the
threaded locking ring, as shown.
2. Plug the three-prong 120 VAC
power cord into a dedicated outlet
(see page 3).
MAIN AC POWER CORD
CANOPY TO BENCH
POWER CORD
THREADED
LOCKING RING
CANOPY
POWER CORD
RECEPTACLE
ON BENCH
ELECTRICAL PANEL
