Repeat the same operation on the other side so that the front bar is absolutely leveled.
SUN 5000 Series

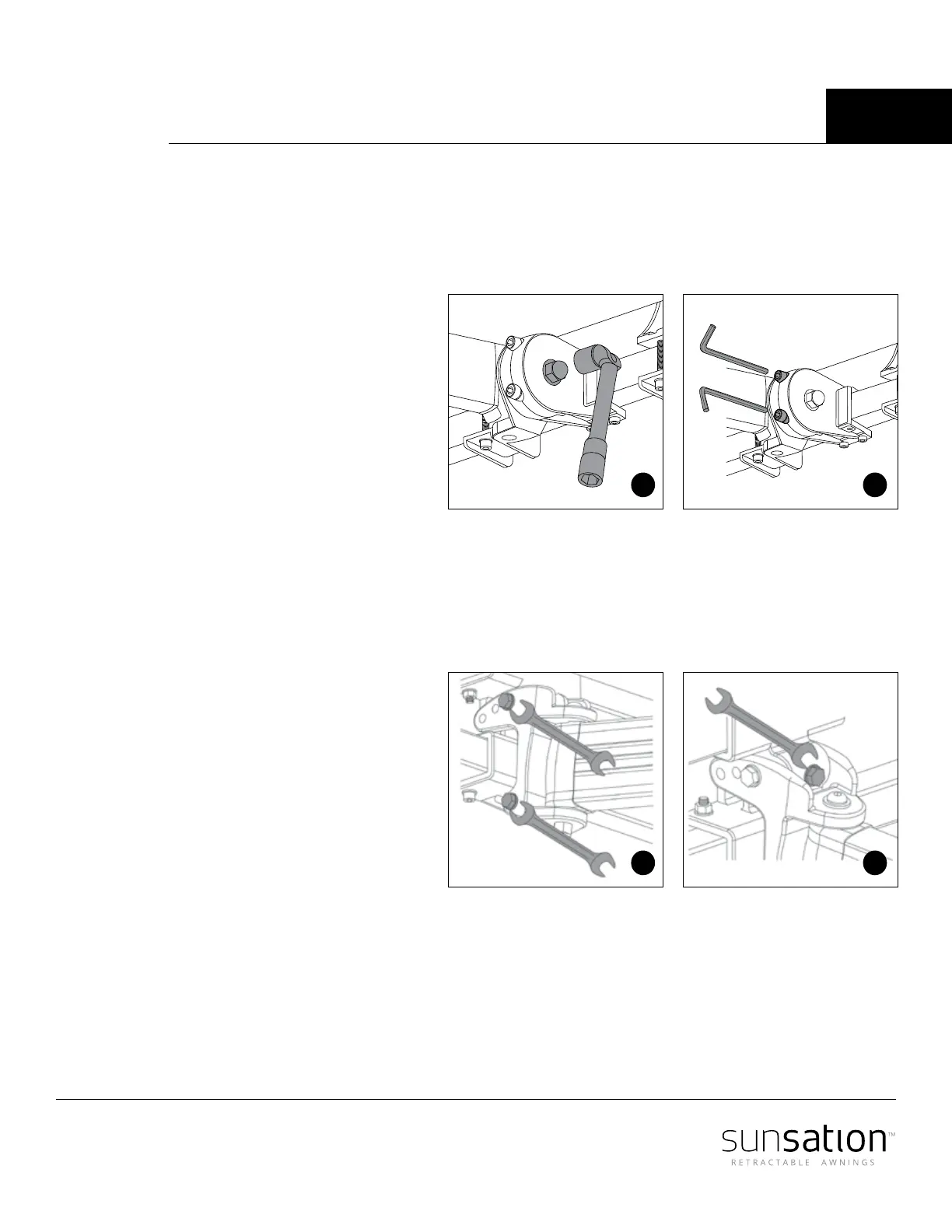

1. Use the open-end wrench to release
the 2 side bolts (Picture 3), Do NOT
unscrew bolts completely.
3. With the Allen key, screw or
unscrew the bolt to the desired
angle (Picture 4).
4. Use the open-end wrench to lock
the 2 side bolts (Picture 3).
Large Awnings Pitch adjustment
4
SUN 4000 Series
1. Use the open-end wrench (23 mm)
to release the side bolt (Picture 1),
Do NOT unscrew bolts completely.
2. You'll need to operate with both
screws. Use Allen key (6 mm), screw
in one and screw out the other
(Picture 2).
> To raise the awning, unscrew
the top screw counterclockwise
for a few turns, and screw in the
bottom screw clockwise for a few
turns. Then repeat.
> To lower the awning, screw in (clockwise) the top screw, and unscrew
(counterclockwise) the bottom Screw.
3. Use the open-end wrench to lock the side bolt (Picture 1).
