SunSetter Oasis - Unpack the Awning; Begin Assembly of the Awning

6

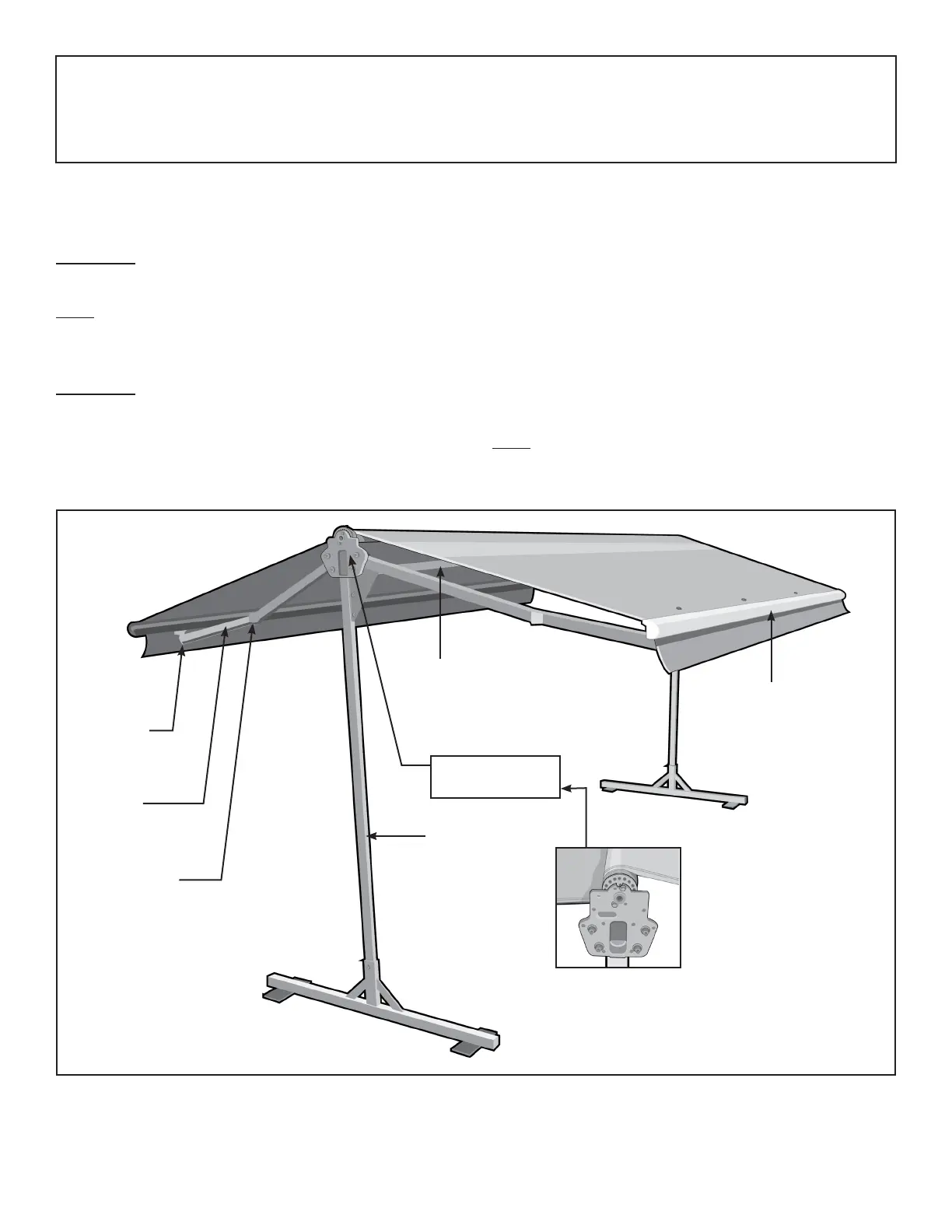

Figure 1

Motor Assembly

Assembly
Front Bar
Connector

Arm Assembly
(Re: Step 1)
Horizontal
 Front Bar



Motor Assembly
Secon B
Motorized Oasis Awning
Roller Bar Replacement Instrucons
*Helpers Needed*
Tools Needed: Step Ladder, Sawhorses or chairs, 
Parts Supplied:
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY!! PLEASE READ
THESE INSTRUCTIONS IN ITS ENTIRETY BEFORE ATTEMPTING TO COMPLETE THIS PROCEDURE.
Note: If you cannot close your Awning using the Crank Wand, complete the following procedure (Steps 1
through 5), then connue with Step 8. If you can close your Awning using the Crank Wand, close the Awning
now and connue with Step 6.
WARNING: MAKE SURE THAT NO ONE STANDS IN FRONT OF THE AWNING DURING THIS PROCEDURE, IN
CASE THE AWNING SPRINGS OPEN.
1.Note: Outside the Awning, not under the Awning)
Figure 1
