Warning
▶Do not connect the power plug before lubrication is complete. If the user mistakenly steps
on the foothold, the machine will start automatically and can cause physical injuries.
▶When handling lubricants, put on protective glasses or gloves to avoid contact with eyes or
skin. Otherwise, inflammation can be caused. Do not drink lubricants to prevent diarrhea
and vomiting. Be sure to keep the lubricants out of the reach of children.
▶Be sure to feed oil when using the machine for the first time, or when the machine has
been left unused for a long time.

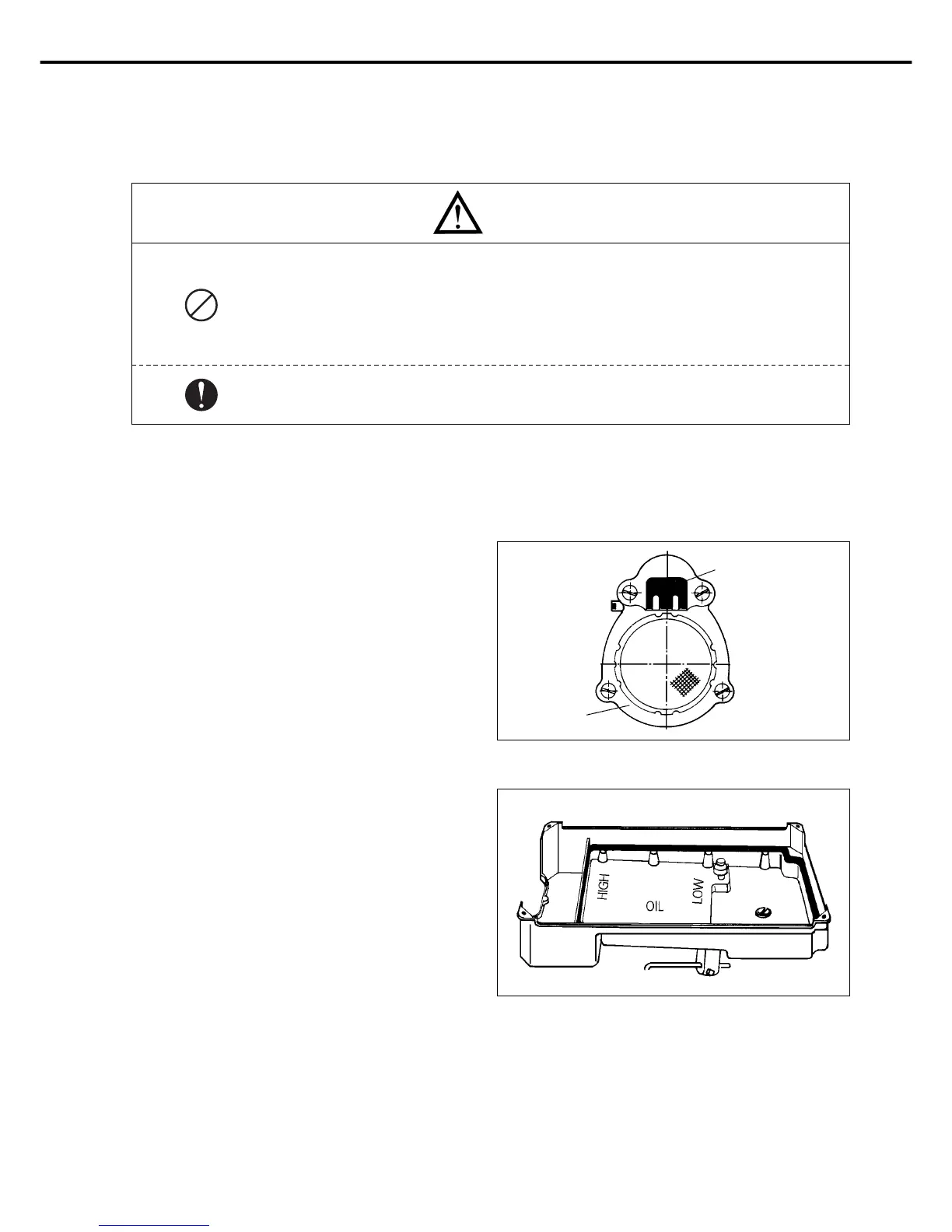

3) Lubrication
A. Installing a magnet for removing metal chips Place the
chip-removing magnet from the accessory box onto the
oil pump inside the bed. (Refer to Figure 3)
※ Do not use the magnet for other purposes.
Operating the machine without the magnet can
cause malfunctions. Use the magnet to ensure
durability of the machine.
B. Feeding oil to the oil pan
a)
Feed the oil to the “HIGH”mark. (Refer to Figure 4)
b) Be sure to use the oil for SunStar industrial-use
sewing machines or TELLUS C10 from SHELL.
c) When the oil is down to LOW level during
operation, immediately fill up the oil to HIGH level.
d) Replace oil at least once every two weeks.
Magnet
[ Figure 3 ]
[ Figure 4 ]
Oil pump
To Next Page
