11
12
10
Fig.35
Fig.36
Fig.38
Fig.37
⑦
⑧
⑨
⑤
③
⑥

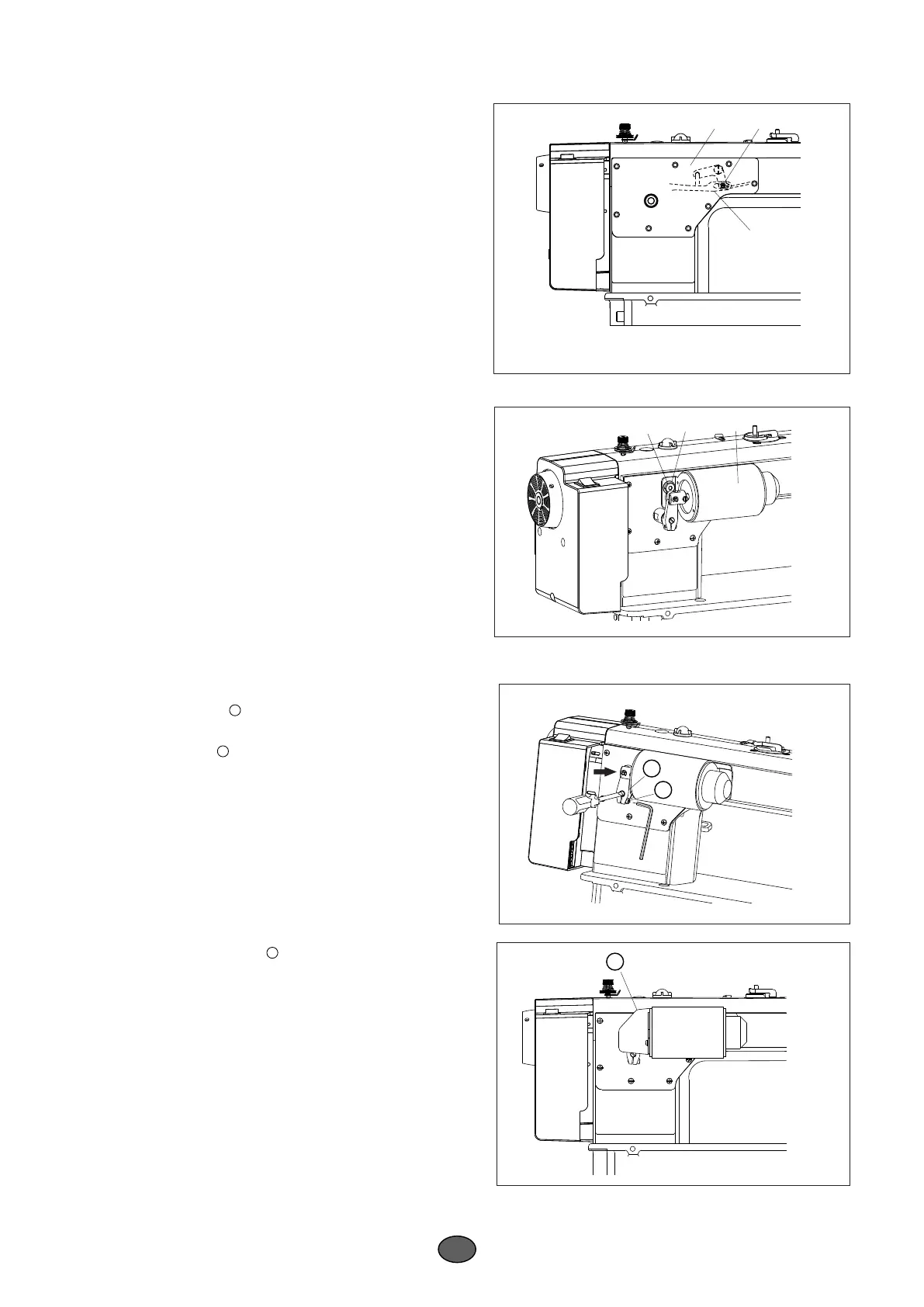

3. Install the rear complete ⑤ on the slot of the link arm ⑥
may be set on the rod pin ③.
Attention:Please smear oleosome in the hole of the link
arm.
4. Install the electromagnetic complete ⑦ on the rear
cover boart of the machine with washer ⑧ and nut ⑨
Attention: Insert the 2P plug at the end of the control
electromagnetic into the 2P socket on the control circuit
board.
5. Remove the panel of the machine, Put down the foot
and upper traction board ,adjusting the electromagnetic
in the counter clack wise direction with the screwdriver,
then fix the lock screw with the spanner.cover boart of the
machine with washer ⑧ and nut ⑨
Attention: Ensure that the foot and the needle plate are
joint,and the foot holder keep space with the front end of
the upper traction plate.
6. Install the attached cover on one side of the electro-
magnetic.
10
11
6
35
12
