27.ADJUSTMENT OF THE PEDAL(FIG.32)
1. Installing the connecting rod
1) Move pedal to the right or left as illustrated by the
arrows so that motor control lever and connecting rod
are straightened.
2. Adjusting the pedal angle
1) The pedal tilt can be freely adjusted by changing
the length of the connecting rod.
2) Loosen adjust screw, and adjust the length of
connecting rod.

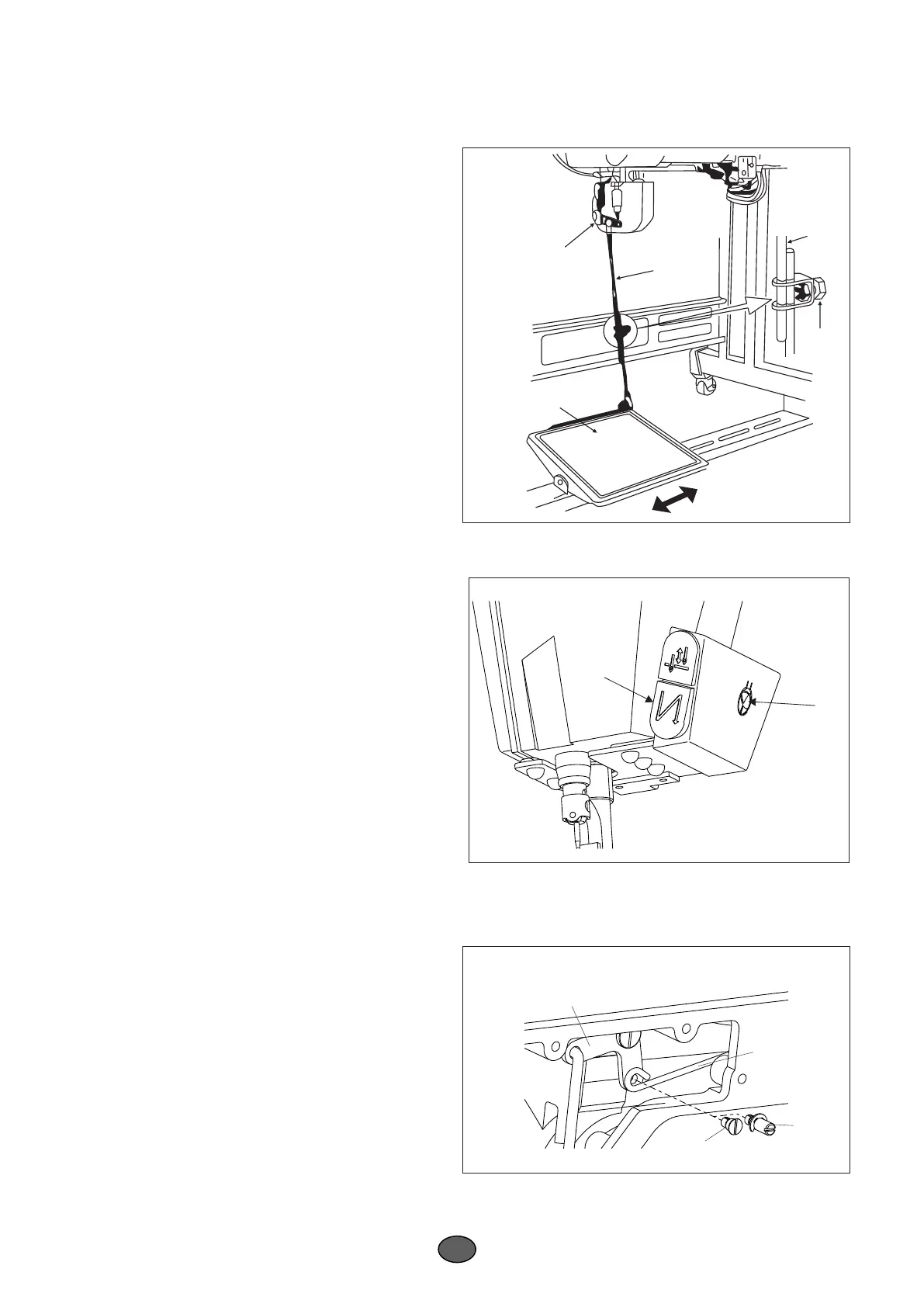

Fig.32
①
②
③
④
⑤
6
34
28.ONE-TOUCH TYPE REVERSE FEED STITCHING MECHANISM(FIG.33)
28.AUTOMATIC PRESS FOOT LIFTER COMPONENTS
1. How to operate
1) Pressing the switch presses button 1, the sewing
machine pours to sew immediately;
2) Proceed to pour to sew at time that press;
3) Loosen to draw to change into namely face the
sewing;
4) Turning on the machine hour floodlight is an all
openning, Pressing to move to press button 2 illuminate
the will die down gradually, totally 3 class.
1. Remove the rear cover of the machine, and remove
the knee lifter connecting rod ① set hinge screw ② .
2. Install the knee lifter connecting rod ③ on the
rocking plate ④, and ensure that the rod pin may fix
the knee lifter connecting rod.
Attention:
1) Fix the rod pin ③ firmly,because it is apt to bec-
ome flexible.
2) Please smear oleosome in the contact parts be-
tween setscrews and relative parts.
Fig.33
Fig.34
