MACHINE STRUCTURE

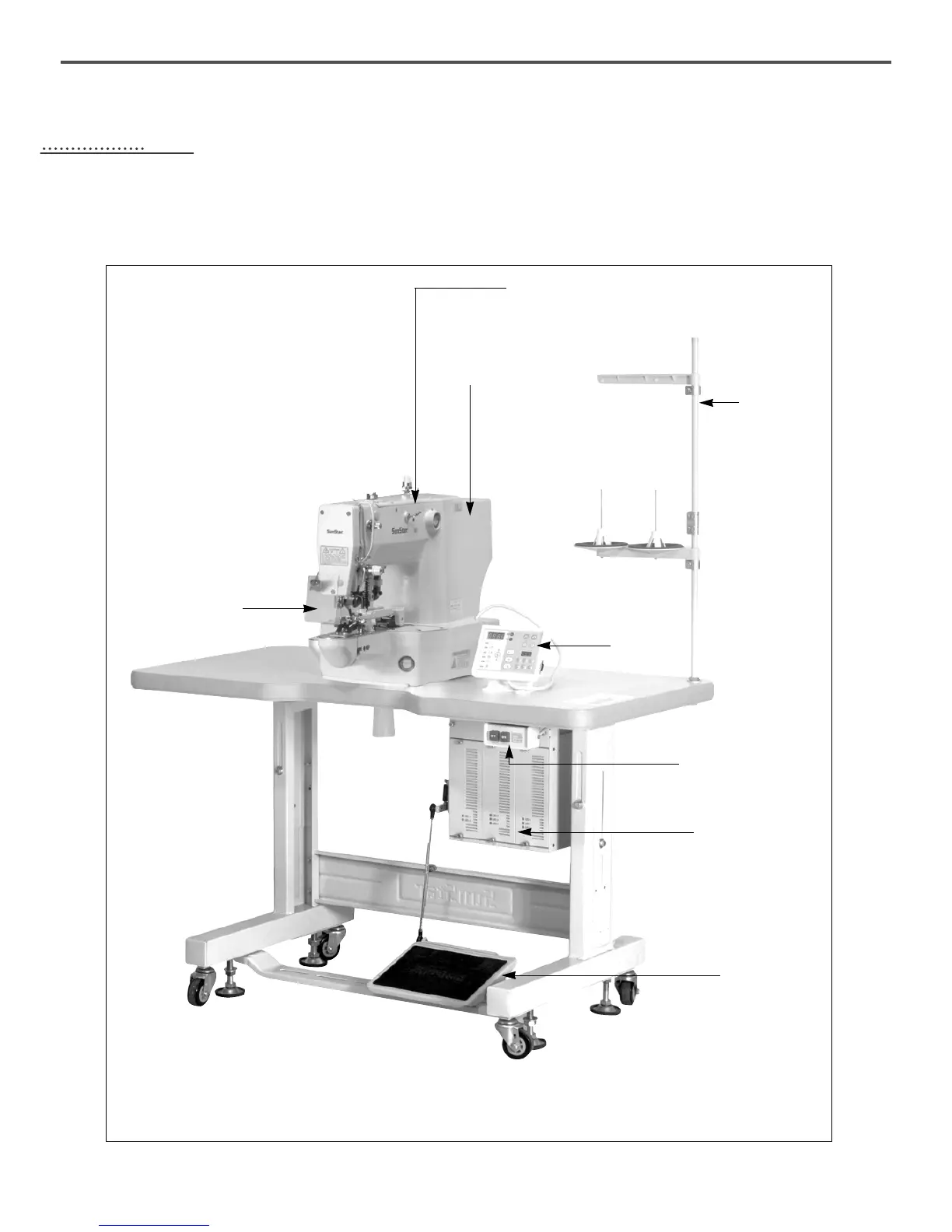

1) Names of each part of the machine
Arm
Mortor Cover
Thread
Stand
Safety Plate
Operation Box
Power Switch
Control Box
Pedal Switch
9
11
Table of Contents
Table of Contents
4
Machine Safety Regulations
6
Machine Specifications
9
Machine Structure
10
Names of each Part of the Machine
10
Machine Installation
11
Machine Installation Conditions
11
Electric Installation Conditions
11
How to Install the Table
11
The Assembly of Peripheral Parts
14
Change of Parameters According to Setting of Thread Wiper Specifications
15
Preparations before Operating the Machine
16
How to Supply Oil
16
How to Grease
16
How to Attach Needle
17
Checking Needle and Thread
17
How to Pass Upper Thread
17
Threading the Lower Thread
17
How to Take the Bobbin Case on and off
18
How to Adjust the Tension of the Upper Thread and the Lower Thread
18
How to Wind the Lower Thread
19
How to Operate a Pedal
19
Disposing the Waste Oil
19
How to Repair the Machine
20
Adjusting the Height of the Needle Bar
20
Adjusting the Needle and the Shuttle
20
How to Adjust the Eccentricity of Thread Take-Up Crank Axis
21
Adjusting the Lower Shaft Gear and the Rocking Shaft Gear
21
Adjusting the Position of Shuttle Upper Spring
22
How to Adjust the Ascending Range of Button Clamp
22
How to Adjust the Button Clamp Holder Tension
23
Adjusting the Parts of Thread Release
23
Adjusting the Parts of Wiper
24
Adjusting the Parts for Trimming
27
Adjusting the Devices for Main Thread Adjustment
29
Adjusting the Winder Devices
29
Setting up the Synchro Position(C Series)
30
Mounting the Direct Motor and Adjusting Method(D Series)
31
Setting up the X-Y Origin
31
How to Adjust the Feeding Plate
32
Checking the Setting Position of Button Clamp
32
How to Set up the Button Clamp Adjusting Plate
33
How to Attach the Spacer Spring Plate
33
Cause of Breakdown and Troubleshooting
34
Pattern List
36
Drawing of Table
37
Sps/C-B1202
38
Sps/D-B1202
39
Gauge List
39
Option List
