29

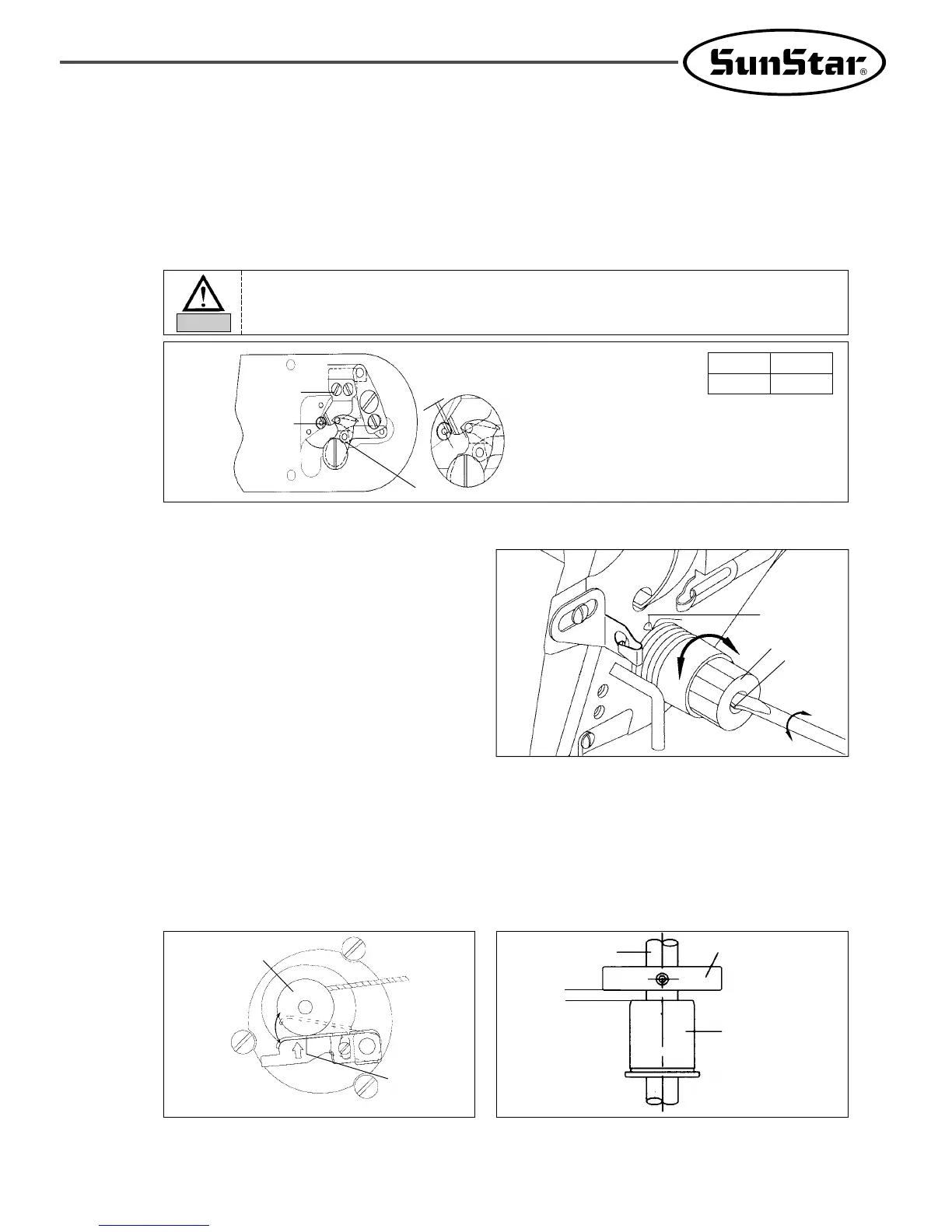

F. Adjusting the Moving Knife and the Fixed Knife
ⓐ When the needle bar stops at the upper position, use the trimming lever adjustment screw to
adjust space A between the thread separation point of the moving knife and the needle plate hole
as indicated in the table.(4.5mm)
ⓑ Use the fixed knife screw to adjust space B between the fixed knife and the needle plate cover as
indicated in the table. (0.5mm)
ⓒ after the adjustment, check the position of the mes by manual trimming operation.
[ Fig. 54 ]
4.5mm 0.5mm
AB
Needle
Plate Cover
Fixed knife
Moving Knife
→
→
→
B
A
→
B. Place the winding drive wheel 4mm away
from the upper shaft bushing(F) and tighten
the screw.
[ Fig. 57 ]
Bobbin Winder
Driving Wheel
Upper Shaft
Bushing(F)
Upper Shaft
4mm
12) Adjusting the winder devices
A. To adjust the winding capacity of the bobbin,
use the beginning position of the winding
control plate, and after unfastening the screw,
turn the plate in direction A for large winding
capacity and turn in direction B for small
winding capacity.
[ Fig. 56 ]
Bobbin Winder
Adjusting Plate
Bobbin
A
B
11) Adjusting the devices for main thread adjustment
A. When the tension control nut ① of the thread
control device is turned clockwise, the upper
thread is tightened and becomes loose as the
nut is turned counterclockwise. Adjust the
tension according to the sewing conditions such
as material, thread, number of stitches etc.
B. To tighten the take-up lever spring, use a
driver to turn the groove ② on the edge face
of the thread tension control device shaft
clockwise. And to make the spring relax, turn
it counerclockwise.
(Standard operating quantity is 6∼8mm,
and tension is about 30g∼50g.
)
[ Fig. 55 ]
①
Thread
Take-up
Spring
②
Trimming may not be operated or there may not be enough remaining thread if the knife is not set
inappropriately
Caution
