32

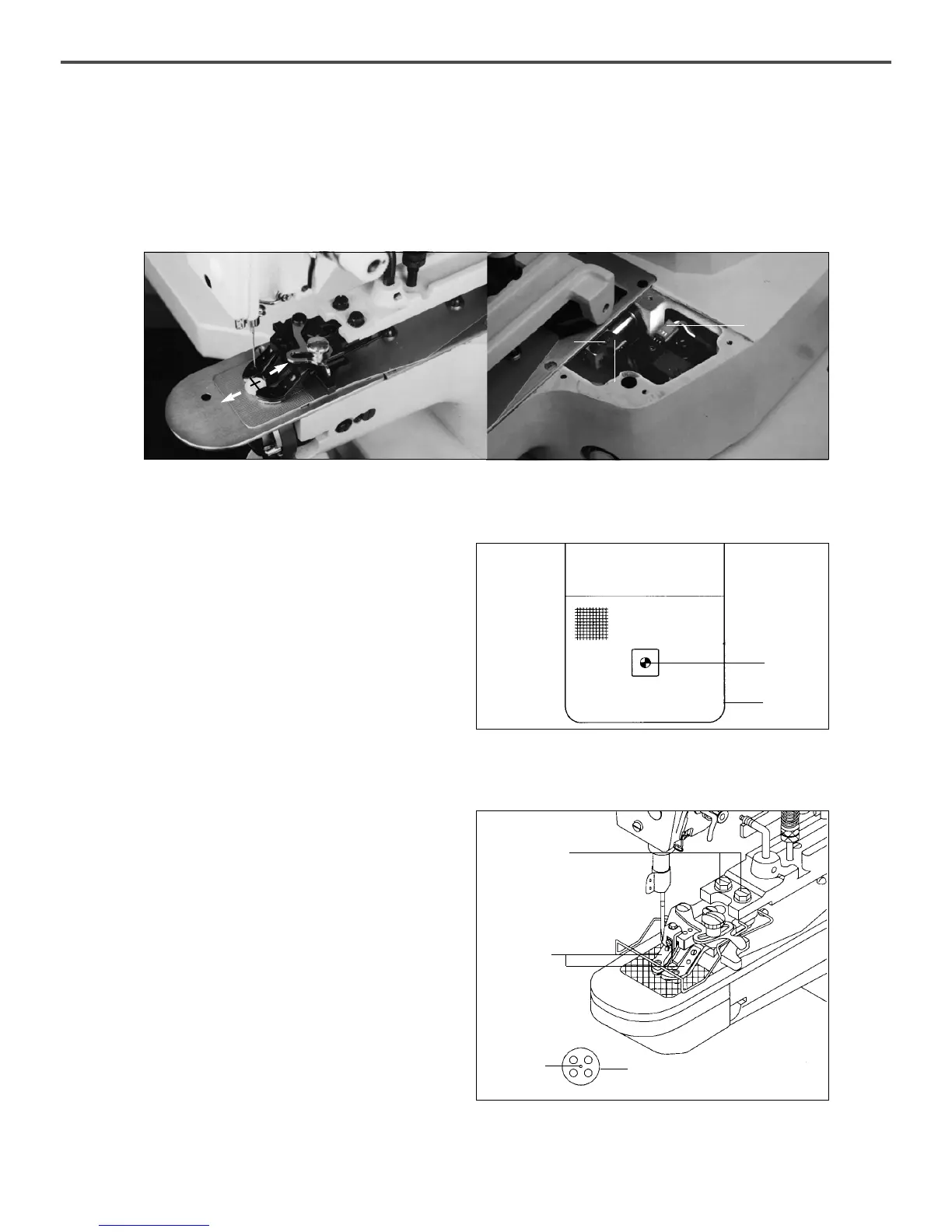

B. How to set up Y-axis Origin
ⓐ Separate a bed cover ( right ).
ⓑ Move the center of work clamp foot to be placed on the center of Y-axis.
ⓒ As seen in the figure, unfasten the bolts of Y-sensor plate and let the end of X-sensor
plate locate on the center of sensor, then fasten the bolts with screw-driver.
[ Fig. 64 ]
Screw
Sensor
Y-sensor plate
①
Button
needle point
conform
17) Checking the setting position of button clamp
A. Select Pattern No. “0”at the operation box.
B. Press [Ready] key to ascend the button clamp
that the machine can return to the origin.
C. Insert the button into the button clamp①.
D. Press the button clam of Step 1 to descend
its holder. At this time, turn the pulley for the
error message [
“Er 03”] to display on the LCD.
E. Remove your foot from the pedal, and turn
the pulley to check if the needle point
conforms to the button’s center.
F. If the needle point does not insert into the
button’s center, loosen the fixed screw② of the
button clamp bracket, and fix it that the needle
point can be inserted into the button’s center.
G. After adjusting, check the pattern form that the
needle is exactly inserted into the button hole.
[ Fig. 66 ]
②
②
①
16) How to adjust the feeding plate
A. Select Pattern No. “0”at the operation box.
B. Press [Ready] key to ascend the button
clamp that the machine can return to the
origin.
C. Adjust the feeding plate① that its center can
place to the center of presser bar cover②.
[ Fig. 65 ]
To Next Page
