33
①
③
②

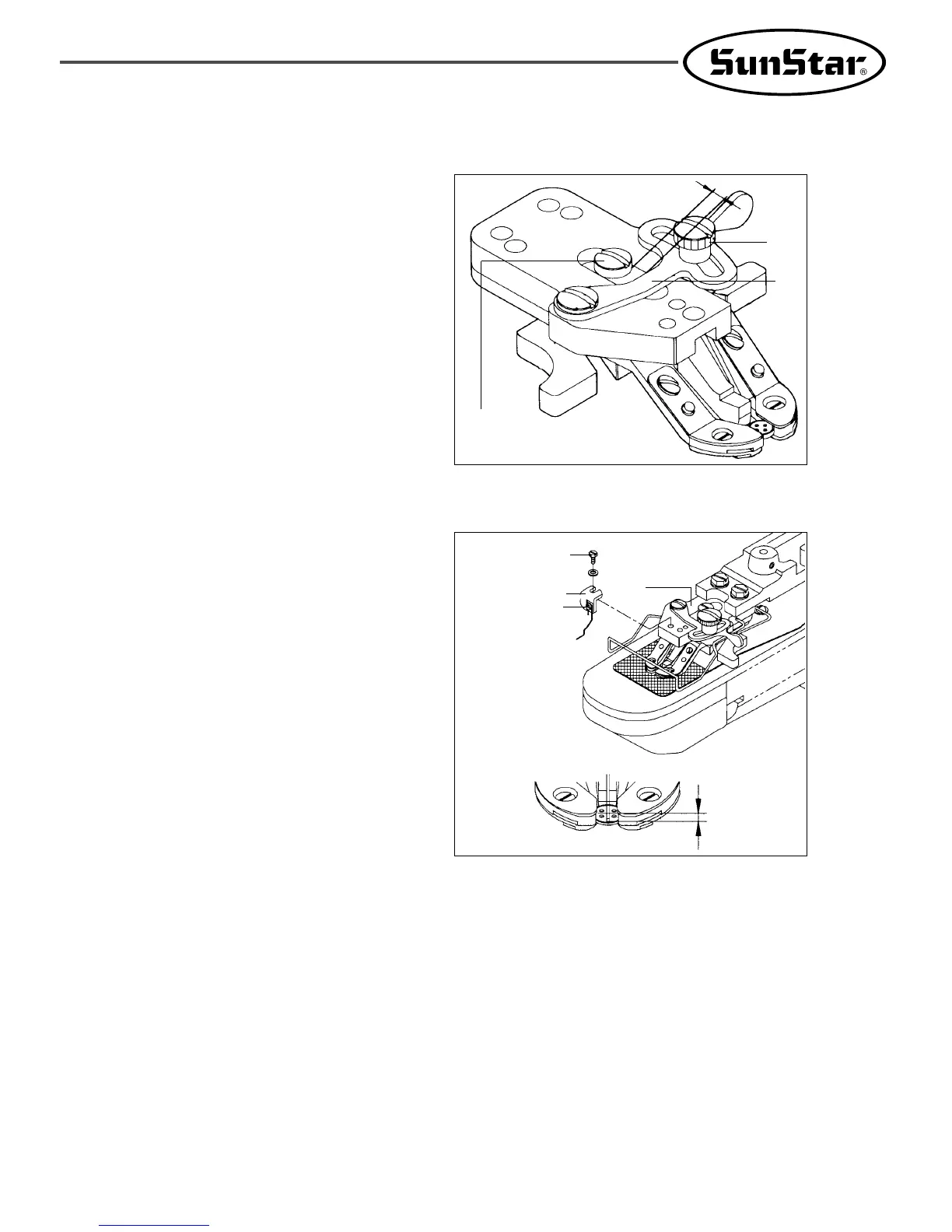

18) How to set up the button clamp adjusting plate
A. Insert the button into its clamp while the
machine stops, and check that it is exactly
inserted.
B. Loosen the button clamp adjusting screw①,
and adjust that the space between the
button clamp adjusting plate② and its
adjusting screw① can be 0.5~1mm.
[ Fig. 67 ]
0.5~1.0mm
A. Place the spacer spring to the button’s
center, adjust it to be projected to
3.5~4mm from the button’s center to the
spring’s edge, and fix the spacer spring plate
③ to the button clamp bracket①.
B. To adjust the height of spacer spring, loosen
the screw④, place the spring to the suitable
position, and fix the screw④.
[ Fig. 68 ]
19) How to attach the spacer spring plate
②
③
④
3.5~4mm
①
To Next Page
