16
55
[ Fig. 16 ]

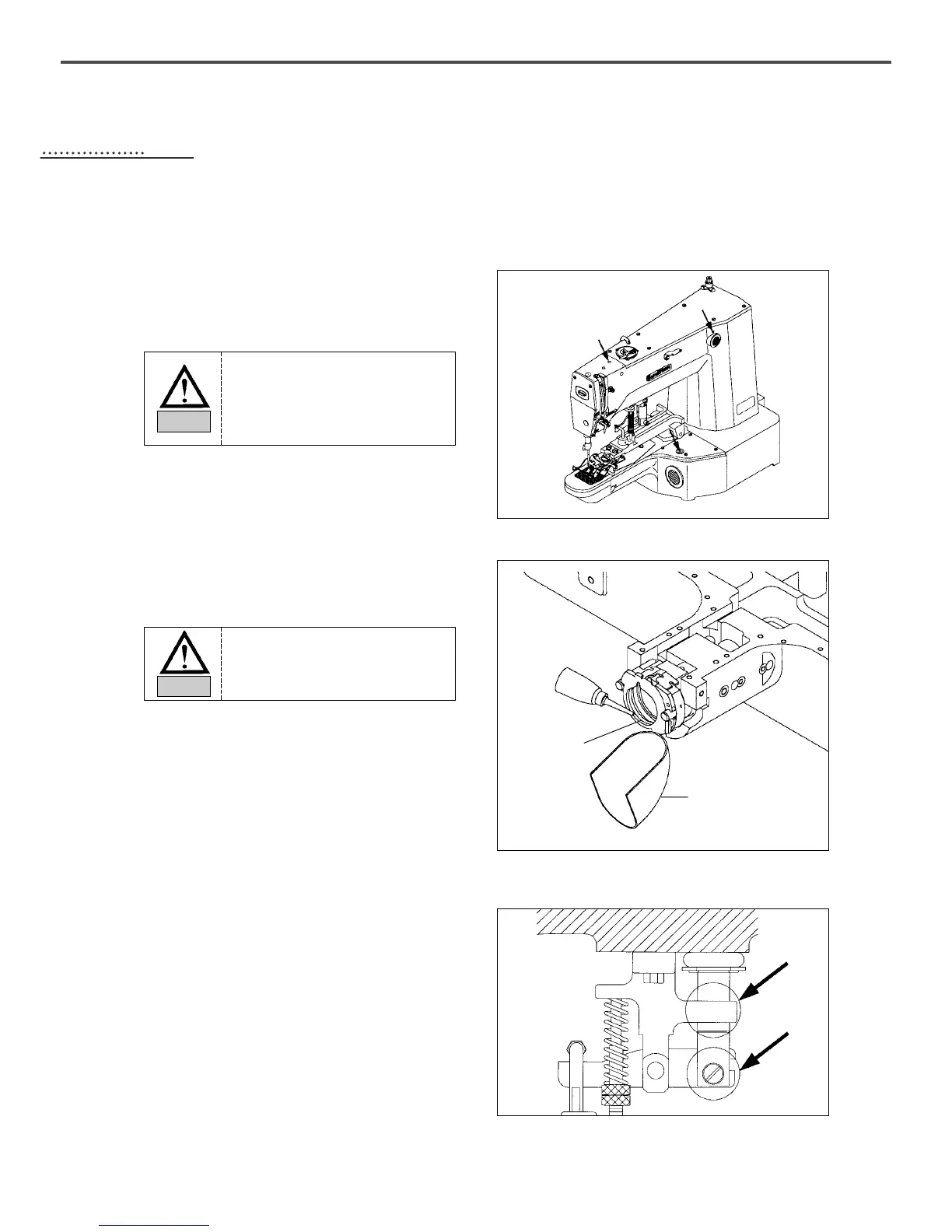

PREPARATIONS BEFORE OPERATING THE MACHINE
1) How to supply oil
A. Check the remaining oil in the oil tank in the
arm and bed, and supply the oil sufficiently
on the arrowed parts on the Figure 16 with
a lubricator.
[ Fig. 17 ]
B. Open the hook cover and supply oil till the
shuttle race ring is surrounded by oil. Put
the hook cover closed after finishing.
Shuttle Race Ring
Hook Cover
2) How to grease
Supply a little grease on the arrowed parts in
the Figure16. Too much grease prevents the
clamp from moving up and down, therefore an
error message
-[“Er 05”] is displayed.
[ Fig. 18 ]
Be sure to supply oil when
operating the machine for the
first time and when the machine
has not been used for a long
time.
Caution
For safety, keep the hook cover
closed during operating.
Caution
To Next Page
