B. Installation and adjusting method of solenoid wiper (SPS/D(C)-B1202-03)

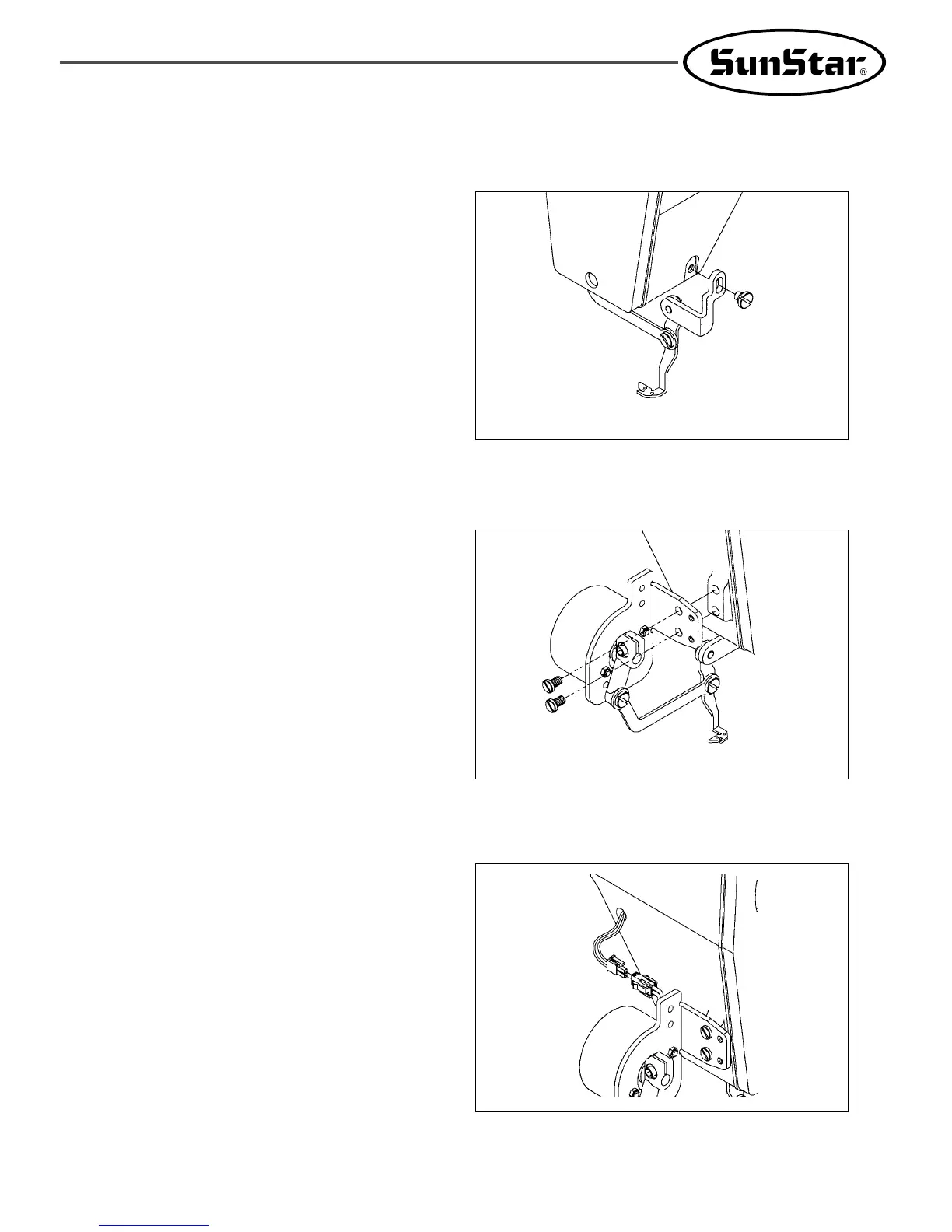

ⓐ Fix the wiper base plate with screw as
shown in the figure41.
ⓑ Fix the wiper base at the opposite
direction with two screws as shown in the
figure42.
ⓒ Connect the connector located at solenoid
with the connector came out from arm.
[ Fig. 41 ]
[ Fig. 42 ]
[ Fig. 43 ]
