17

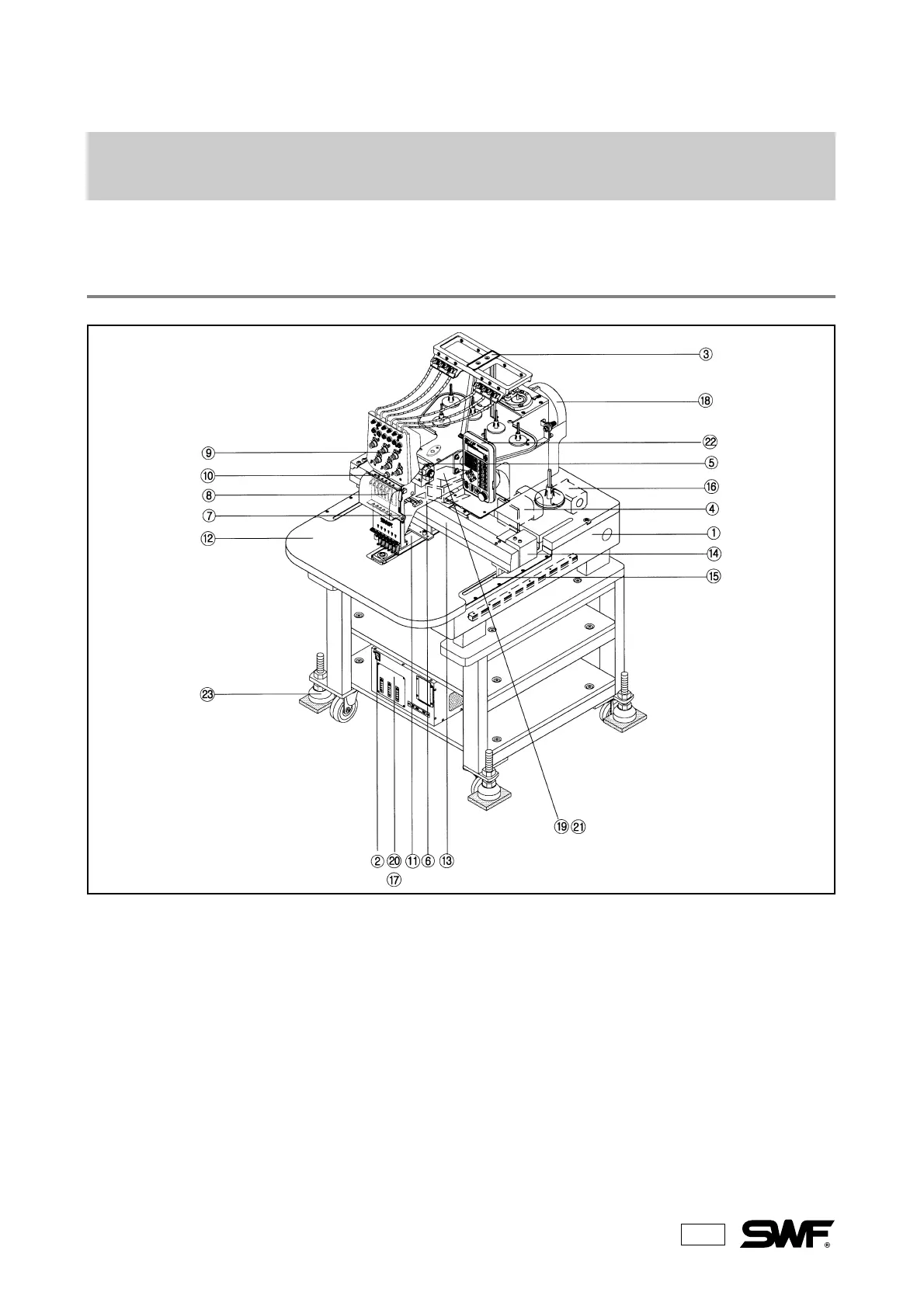

PARTS OF THE MACHINE
CHAPTER 3
① Base
② Main power switch
③ Upper thread stand
④ Main shaft drive motor
⑤ Color change box
⑥ Arm
⑦ Upper thread catcher
⑧ Head
⑨ Thread tension adjusting plate
⑩ Lamp switch
⑪ Cylinder bed
⑫ Table
⑬ X-axis driving system
⑭ X-axis pulse motor
⑮ Y-axis driving system
⒃ Y-axis pulse motor
⒔ X/Y drive box
⒕ Encoder
⒖ Joint circuit border
⒗ Control box
󱇽 Main power/drive unit
󱇾 Operation box
󱇿 Horizontal adjusting bolt
