Sunsystem PS Series - Thermostat

10
INSTALLATION and OPERATION MANUAL
INSTALLATION and OPERATION MANUAL
INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL
TECHNICAL CHARACTERISTICS
Temperature range – regulation:
0°C÷90°C,limit:90°C÷110°C
Tolerance – regulation:±5k,limit-15k;-
6k(dependsonthetype)
Temperature differential – regulation:6
±2k;4±1k(dependsonthetype),limit25
±8k;15±8k(dependsonthetype)
Automatic adjustment (TLSC/A) and
manualadjustment(TLSC).
Degreeofprotection=IP 40.
Insulationclass=I.
Temperaturechangerate≤1K/min.
Maximaltemperaturepoint=80°C.
Maximaltemperatureforelectriclamp=
125°C
Accumulationtemperature=15°C ÷ 55°C.
Maximumpressureofthecartridge=10
bar.
Constanttime≤1';.
Electricconnection:
C-1 ADJ.: 10(2,5)A/250V
~
;
C-2 ADJ.: 6(2,5)A/250V
~
;
C-1 LIM.: 0,5A/250V
~
;
C2 LIM.: 10(2,5)A/250V
~
;
2.5.Thermostat/opon/.

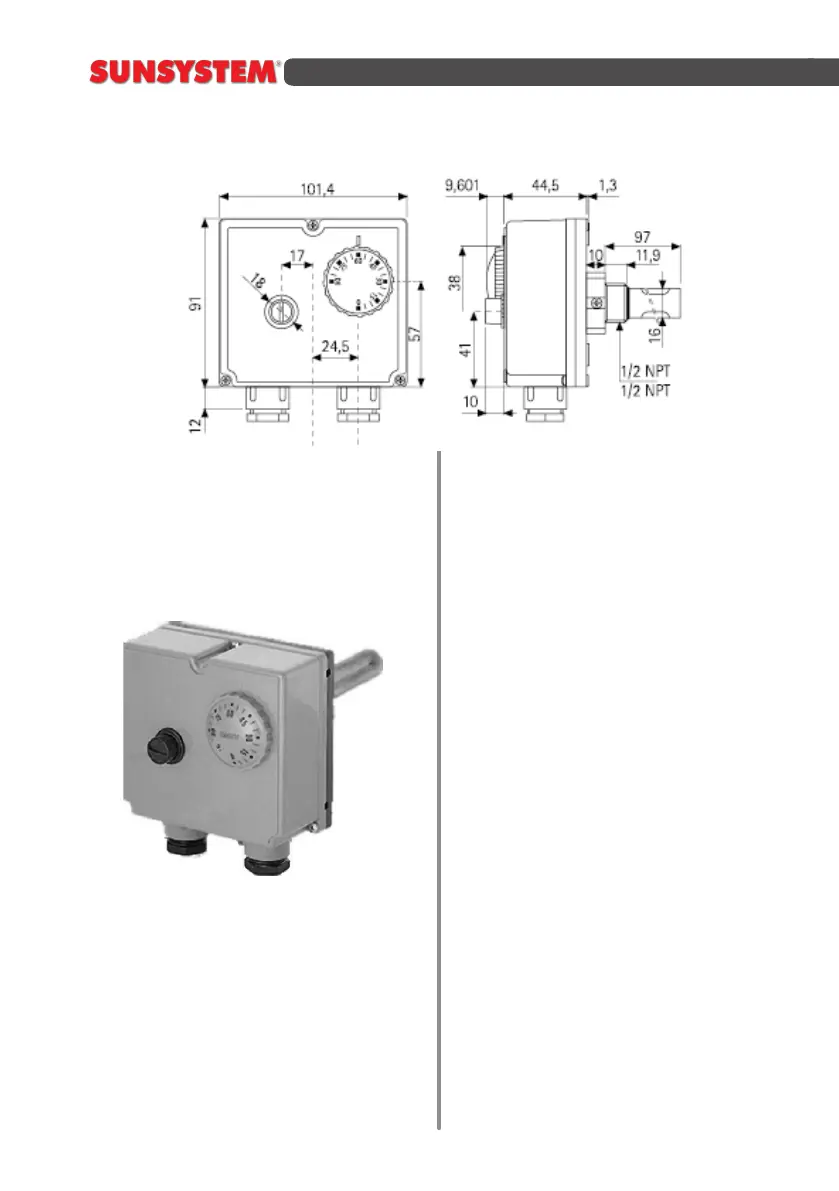

schema 1
ThisisanadjustabledoubleTHERMOSTAT
which is designed to regulate the water
temperatureandensuressafetytolerance;
itcanbemanuallyadjusted(TLSCmodel)
orautomacallyadjusted(TLSC/Amodel).
CONFORMITY WITH STANDARDS
Thisproductisinconformitywith:
-EN60730-1andsubsequenteditions;
-EN60730-2-9
CONFORMITY WITH REGULATIONS
Thisproductcomplieswith:
-LowVoltageDirective73/23EEC
-ElectromagneticCompatibilityDirective
89/336/EC
