Sunsystem PS Series - Page 25

25
INSTALLATION and OPERATION MANUAL
INSTALLATION and OPERATION MANUAL
INSTALLATION and OPERATION MANUAL
INSTALLATION and OPERATION MANUAL
PBM R2
1500
PBM R2
2000
PBM R2
2500
РBMR2
3000
PBM R 2
5000

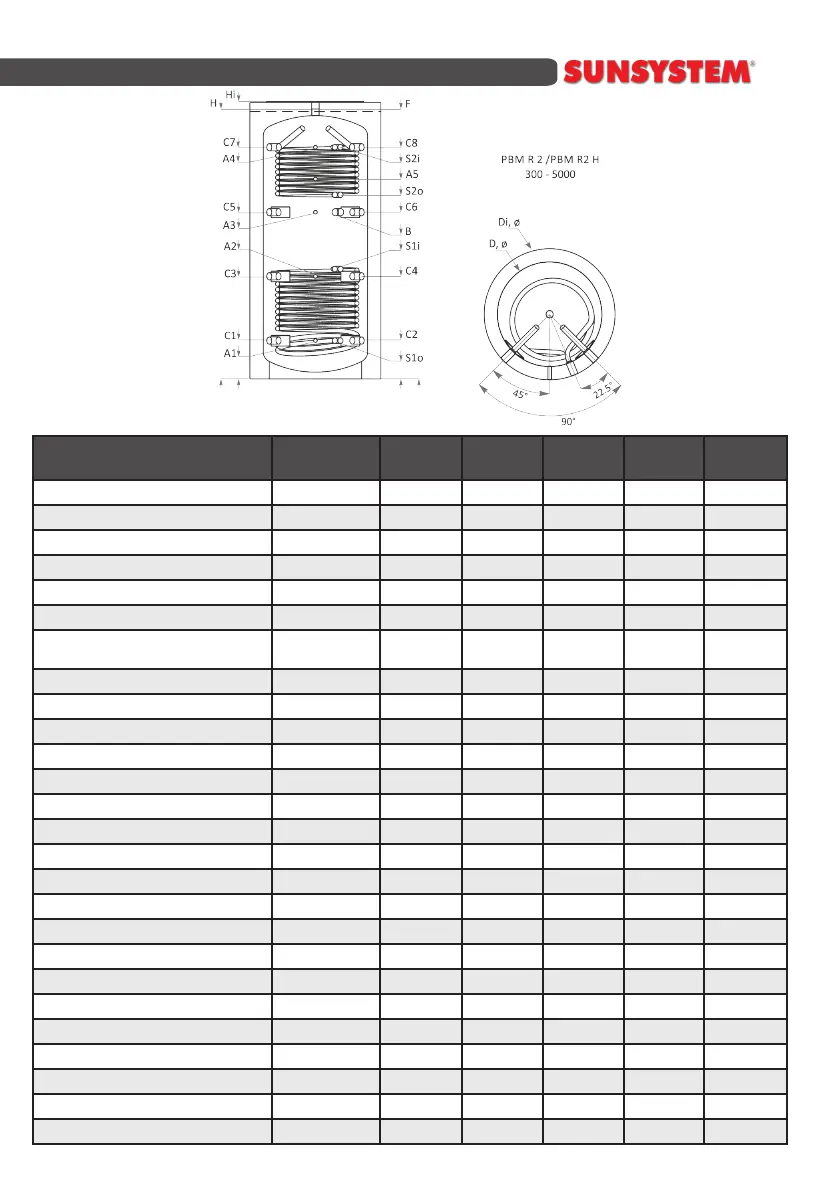

Capacity L 1500 2000 2500 3000 5000
Heightwithoutinsulaon/withinsulaon H,Hi,mm 2140/2290 2131/2181 2713/2763 2746/2796 2841/2891
Minimalvercalclearance mm 2192 2220 2760 2817 2932
Diameterwithoutinsulaon/withinsulaon D,mm Ø1000/1200 Ø1200/1400 Ø1250/1450 Ø1400/1600 Ø1600/1800
Operangpressure/Max.buertemperature bar/
0
C 3/95 3/95 3/95 3/95 3/95
Operangpressure/Max.coiltemperature bar/
0
C 16/110 16/110 16/110 16/110 16/110
Recommendedboilersize,connectedto
buertank
kW 27-50 36-67 46-84 73-133 82-151
Weightwithoutinsulaon/withinsulaon kg,kgi 287/310 360/387 453/488 609/649 729/771
SleeveforElectricheangelement В,mm,Rp1
1/2
” 1260 1308 1678 1690 1754
Heatcarrier С1,mm,Rp1
1/2
” 339 388 396 438 502
Heatcarrier С2,mm,Rp1
1/2
” 339 388 396 438 502
Heatcarrier С3,mm,Rp1
1/2
” 833 848 1037 1064 1128
Heatcarrier С4,mm,Rp1
1/2
” 833 848 1037 1064 1128
Heatcarrier С5,mm,Rp1
1/2
” 1327 1308 1678 1690 1754
Heatcarrier С6,mm,Rp1
1/2
” 1327 1308 1678 1690 1754
Heatcarrier С7,mm,Rp1
1/2
” 1821 1768 2319 2316 2380
Heatcarrier С8,mm,Rp1
1/2
” 1821 1768 2319 2316 2380
Sensorsleeve А1,mm,Rp1/2” 339 388 396 438 502
Sensorsleeve А2,mm,Rp1/2” 833 848 1037 1064 1128
Sensorsleeve А3,mm,Rp1/2” 1327 1308 1678 1690 1754
Sensorsleeve А4,mm,Rp1/2” 1821 1768 2319 2316 2380
Airventsleeve F,mm,Rp1
1/2
” 2140 2131 2713 2746 2841
Capacitylower/uppercoilS1/S2 S1/S2L 20.65/11.85 30/12.4 27.95/18.7 32/21.4 37.2/25.6
HeatexchangesurfaceS1/S2 S1/S2m
2
3.4/1.93 4.9/2.0 4.6/3.05 5.2/3.5 6.1/4.2
Inlet/OutletLowercoiS1 S1i/S1o,mm,Rp1” 939/339 1158/388 1146/396 1118/438 1152/502
Inlet/OutletUppercoilS2 S2i/S2o,mm,Rp1” 1821/1506 1768/1503 2178/1778 2230/1790 2304/1854
