80-0056-00-SM-RevD 2017-12-13 SunTech Tango M2 Service Manual | 3
1.0 Introduction
1.1 Before beginning any operation or service on the Tango M2, read and understand the user manual
(SunTech part number 80-0055-00), which is available for download from SunTechMed.com.
WARNING: ADDITIONAL WARNINGS AND CAUTIONS MAY BE FOUND IN THE TANGO M2 USER
MANUAL.
1.2 The SunTech Medical Tango M2 Non-Invasive Blood Pressure Monitor (NIBP) is used to obtain blood
pressure (BP) and heart rate (HR) readings during exercise testing. It can be used in conjunction with
most common Stress Test systems or as a standalone monitor when using a Tango M2 equipped with
internal ECG. The essential set-up consists of the monitor, pneumatic/K-sound patient cable, and Orbit-K
blood pressure cuff with K-sound microphone.
1.3 The Tango M2 is typically interfaced to a host stress test system and receives its analog or digital ECG
trigger via a coaxial cable with a BNC connection. Communication between the stress system and the
monitor is via an RS-232 null modem cable or USB-A (Stress System) to USB-B (Tango M2) cable. An
optional internal ECG board is available for standalone operation.
2.0 Scope
2.1 This manual is a SunTech Medical controlled document. It contains the instructions necessary to
maintain accurate blood pressure measurements obtained through the use of the Tango M2 NIBP
Monitor. This manual should be used to maintain the monitor safely in accordance with its function and
intended use. This manual was created with the audience of Biomedical engineering professionals in
mind. Biomedical professionals are expected to have a working knowledge of medical procedures,
practices, and terminology as required for completing these testing parameters.
2.2 The Tango M2 monitor should only be serviced by a SunTech Medical trained and certified technician.
The monitor does not contain any user serviceable parts and should only be opened by an authorized
service representative. To perform the routine calibration check, only a trained biomedical technician
should check calibration of the Tango M2.
3.0 Regulatory Information
All icons and symbols listed below are items that can be found on the Tango M2 monitor itself, the power
supply for the Tango M2, or within the literature provided within the Tango M2 monitor’s shipping box.

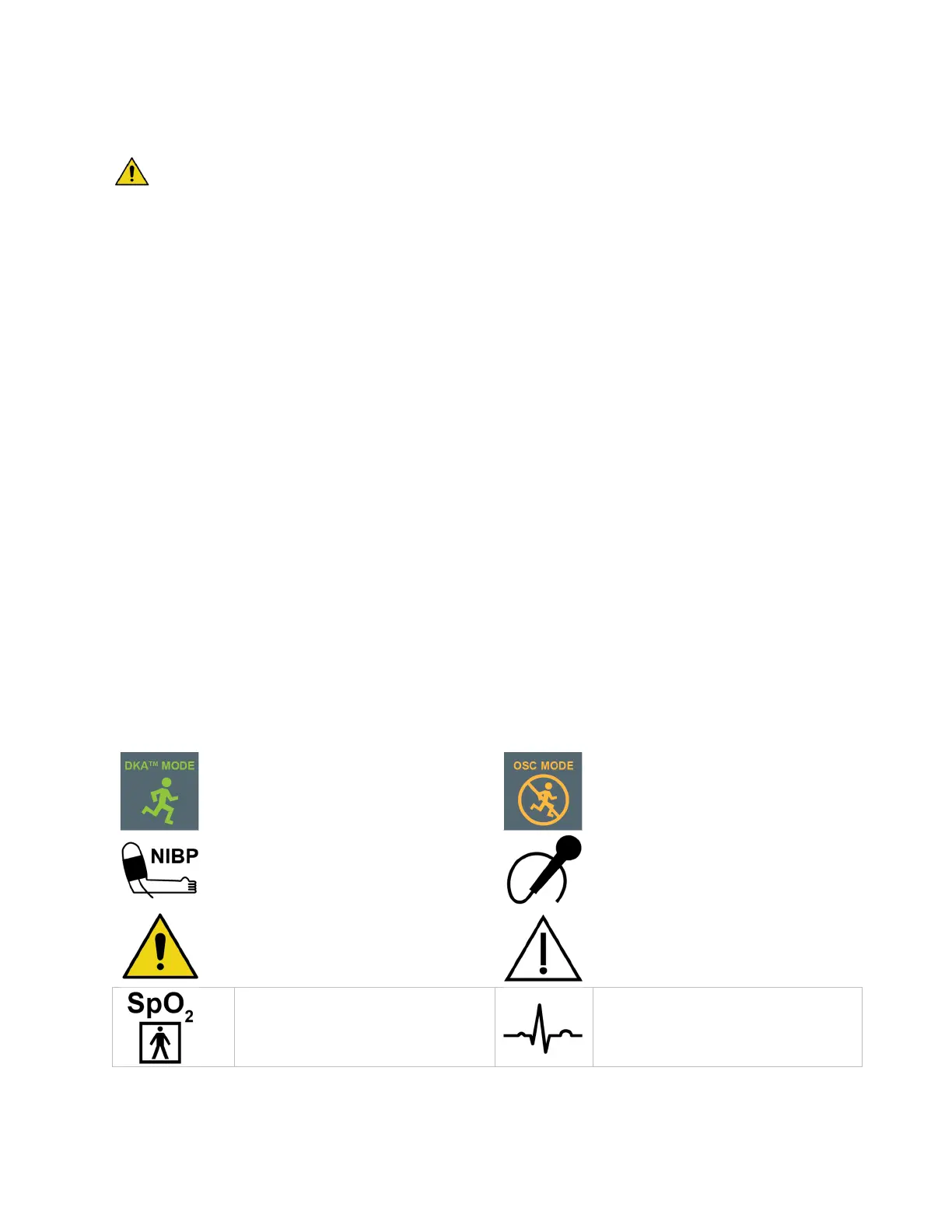

3.1 Icons and Symbols
DKA™ MODE for auscultatory
measurement of blood pressure
(during exercise).
OSC MODE for oscillometric
measurement of blood pressure (non-
exercise).
Patient Cable connection for BP cuff
(pneumatic).
Patient Cable connection for K-sound
microphone.
Warning message
Caution message
SpO
2
Sensor. Type BF Applied Part
ECG Input.
