Installation-Assembly Procedures
Attaching Gas Springs

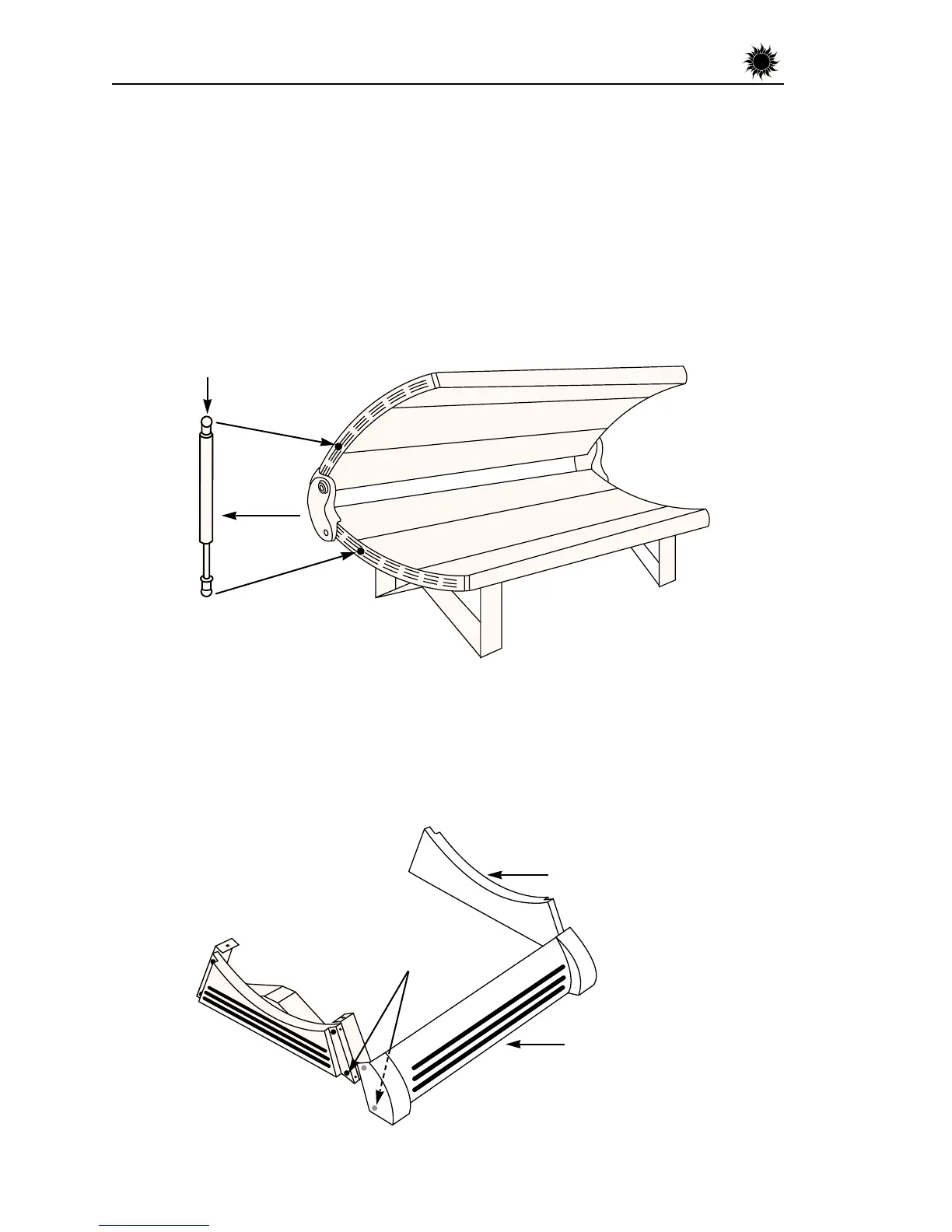

Attach the gas springs (located in canopy box) between the canopy and the bench
as shown below. You will need another person to help you lift the canopy.
1. With a helper holding the canopy open, align open ends of gas spring ball joints
with pivot studs and push into place. Be sure spring cylinder is in up position as
shown. Repeat on other side. DO NOT lower canopy until both gas springs are
installed!
BALL JOINT
GAS SPRING
Assembling Pedestal
Attach the base skirt to the sunbed as shown below.
1. Position the side skirts at either end of the base, with the velcro pads toward the
front of the sunbed. Snap the front skirt over the end skirts, attaching the velcro
pads.
VELCRO PADS
FRONT SKIRT
SIDE SKIRT
