Specification of excellent controller
Page - 7 -

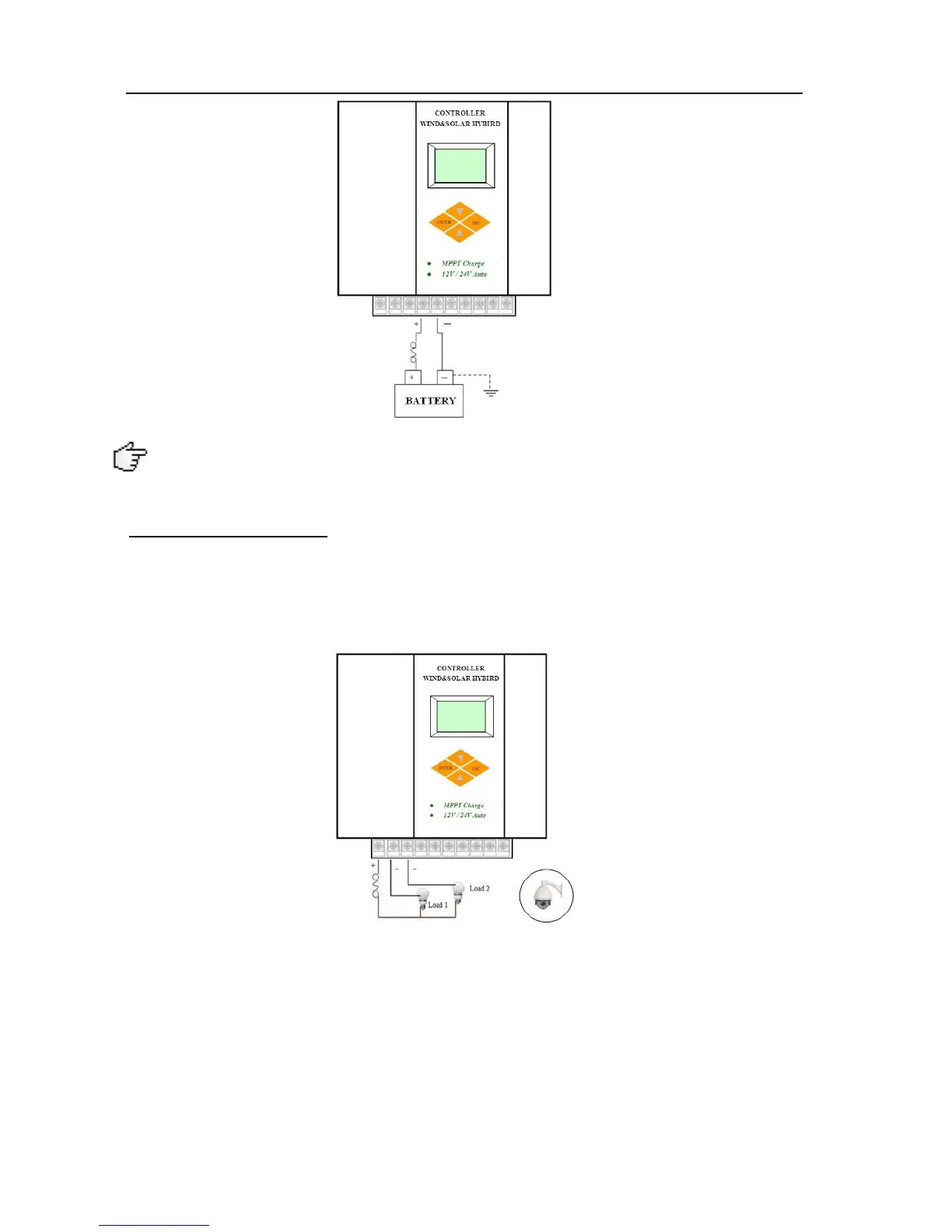

Wire an in-line fuse holder no more than 150mm from the battery positive
terminal. Confirm the connection are correct.
Step 2: Loading Wiring
The controller load output can connect DC electronic devices of which rated
voltage is same as battery‘s. Device will provide battery voltage to the
loads.
DC loading could be LED lamp or monitor devices etc.
1. Connect load1 positive (＋) and negative (－) to the controller related
terminals and connect load2 positive (＋) and negative (－) to the controller
related terminals accordingly.
2. The load terminals may exist voltage, connect carefully to avoid short
circuit.
3. An in-line fuse holder should be wired in series in the load positive (＋) or
negative (－) wire as shown. Do not insert a fuse at this time.
