Specification of excellent controller
Page - 9 -
NOTE:
The wind-turbine rated voltage (@ rated wind-speed level) should be
equal to voltage of battery bank
If your wind-turbine output is DC power, +/- polarity wire can connect
to 2 of whereby 3 terminals be optional.
Please connect wind-turbine to controller related terminals .

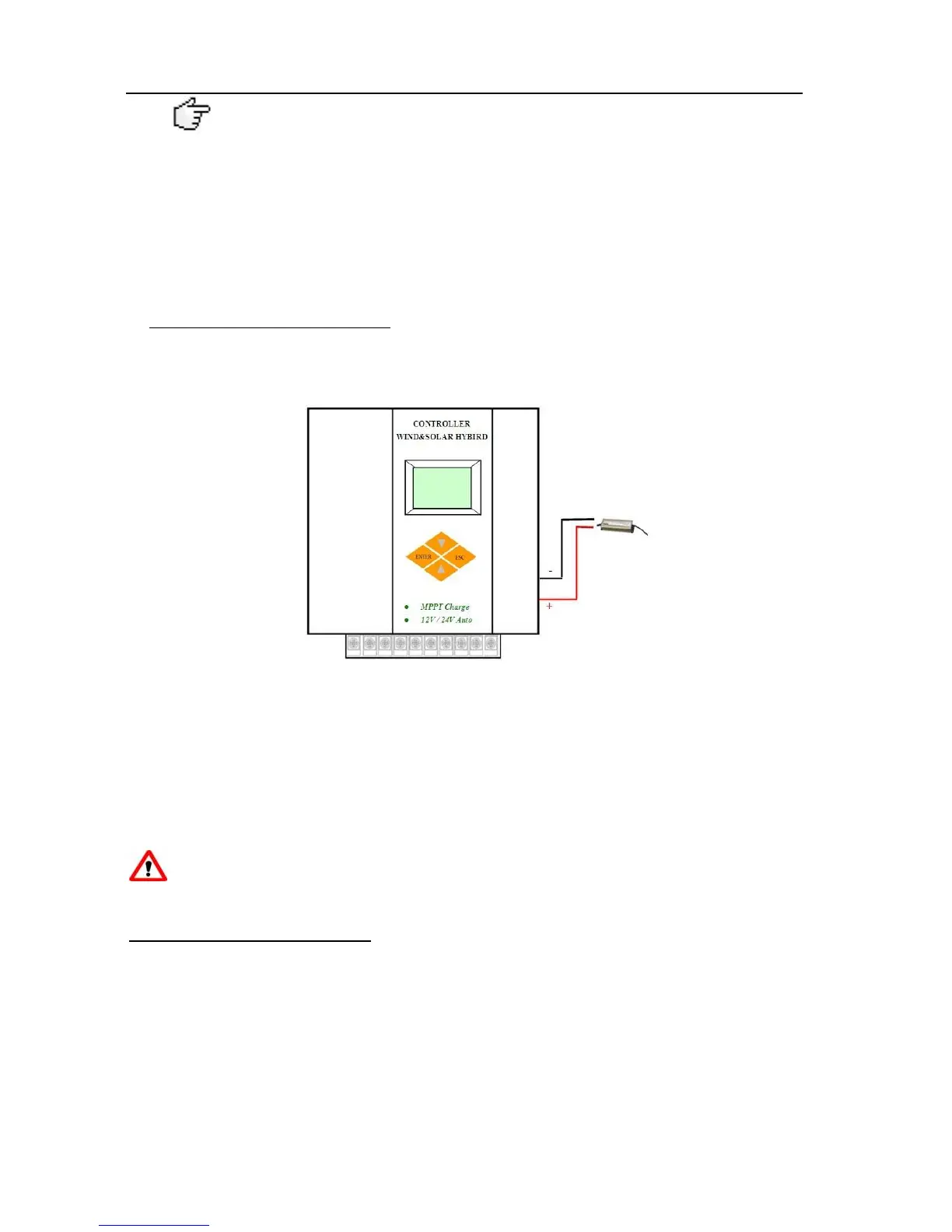

Step 5: Switch power wiring
If your buy unit isn‘t this type mode, please ignore following guide. Please
skip to next step 6
1. There are 2 wires from controller need connect to switch power. Red-wire is
positive , Black wire is negative polarity.
2. Please make sure connection are correct with switch power related terminals
3. Switch power AC input terminal please connect with your city-electric.
Please refer to instruction from manufacturer of switch power.
CAUTION: reverse polarity connection was prohibited!
Step 6: Accessories (Option)
If your buy unit isn‘t this type mode, please ignore following guide. Please skip
to next step 7
1. Install the data-communication wire if required.
2. Refer to the instructions provided for detailed installation procedures of
software guide.
