Sunways STT-80K - 3 Product Introduction; Basic Features

8 9

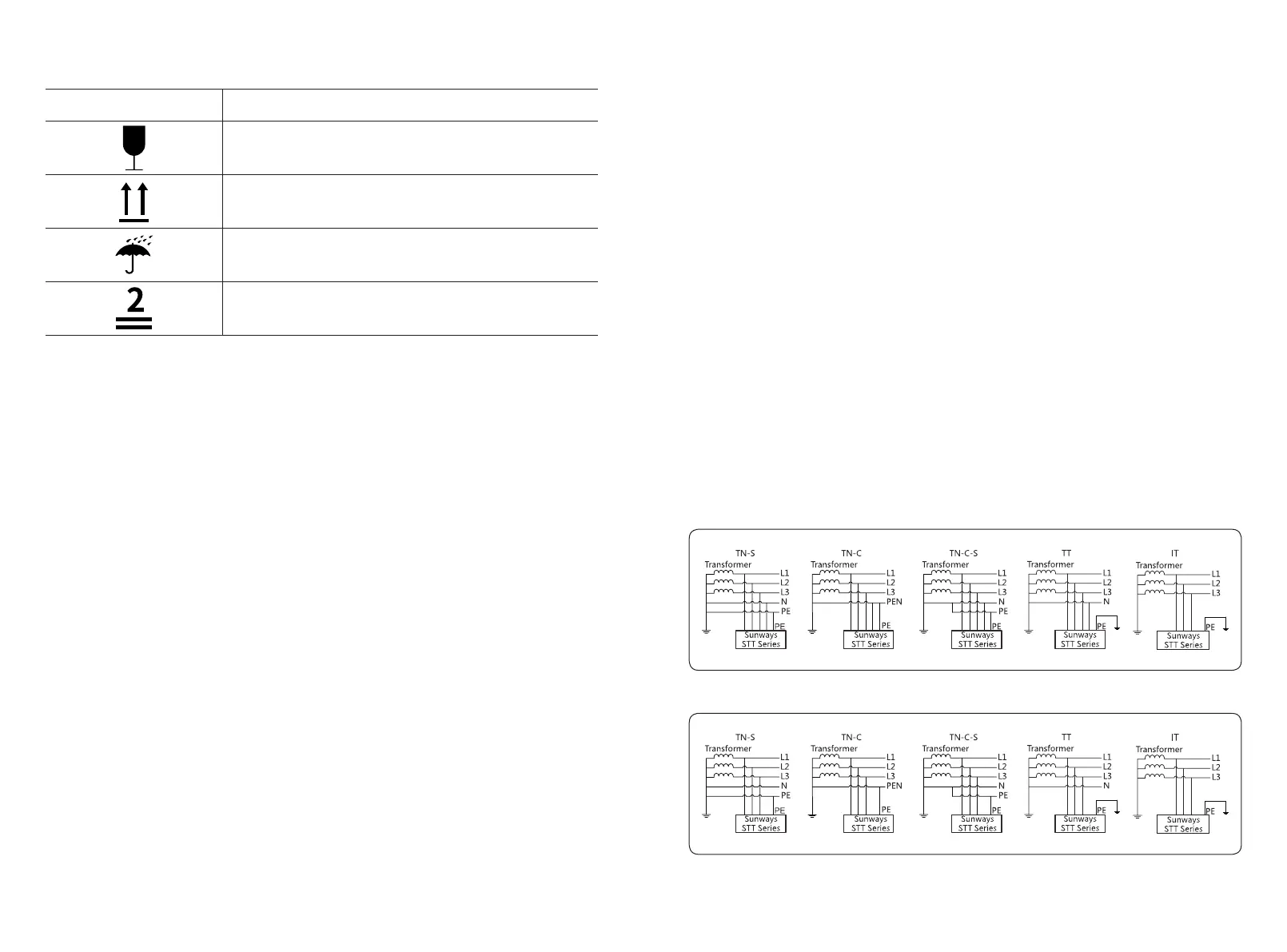

Figure 3-1 400V output inverter applicable grid type
Figure 3-2 500V output inverter applicable grid type
Handle with care.
DescriptionSymbol
This side up.
Keep dry.
Stacked layers.
2.4.3 Symbol on the Packing box
3. Product Introduction
3.1 Basic Features
3.1.1 Function
The Sunways STT 80~125kW series is a three-phase grid-connected PV inverter which is used
to e󽗋ciently convert the DC power generated by the PV string into AC power and feed it into
the grid.
3.1.2 The STT 80~125kW series inverter contains 5 models which are list below:
· STT-80KTL, STT-100KTL, STT-110KTL
· STT-100KTL-HV, STT-125KTL-HV
3.1.3 Applicable grid type
The applicable grid types for the Sunways STT 80~125kW series are TN-S, TN-C, TN-C-S, IT and
TT. When applied to the TT grid, the voltage of N to PE should be less than 30V.
· STT-80KTL, STT-100KTL, STT-110KTL, connection mode see Figure 3-1 for details.
· STT-100KTL-HV, STT-125KTL-HV, connection mode see Figure 3-2 for details.
3.1.4 Storage conditions
1) Inverter must be stored in its original packaging.
2) The storage temperature should be in the range of -30 ° C and + 60 ° C , and the relative
humidity stored should be less than 90%.
3) If a batch of inverters needs to be stored, the height of each pile should be no more than 2
levels.
