Sunways STT-80K - Mounting the Inverter

14 15

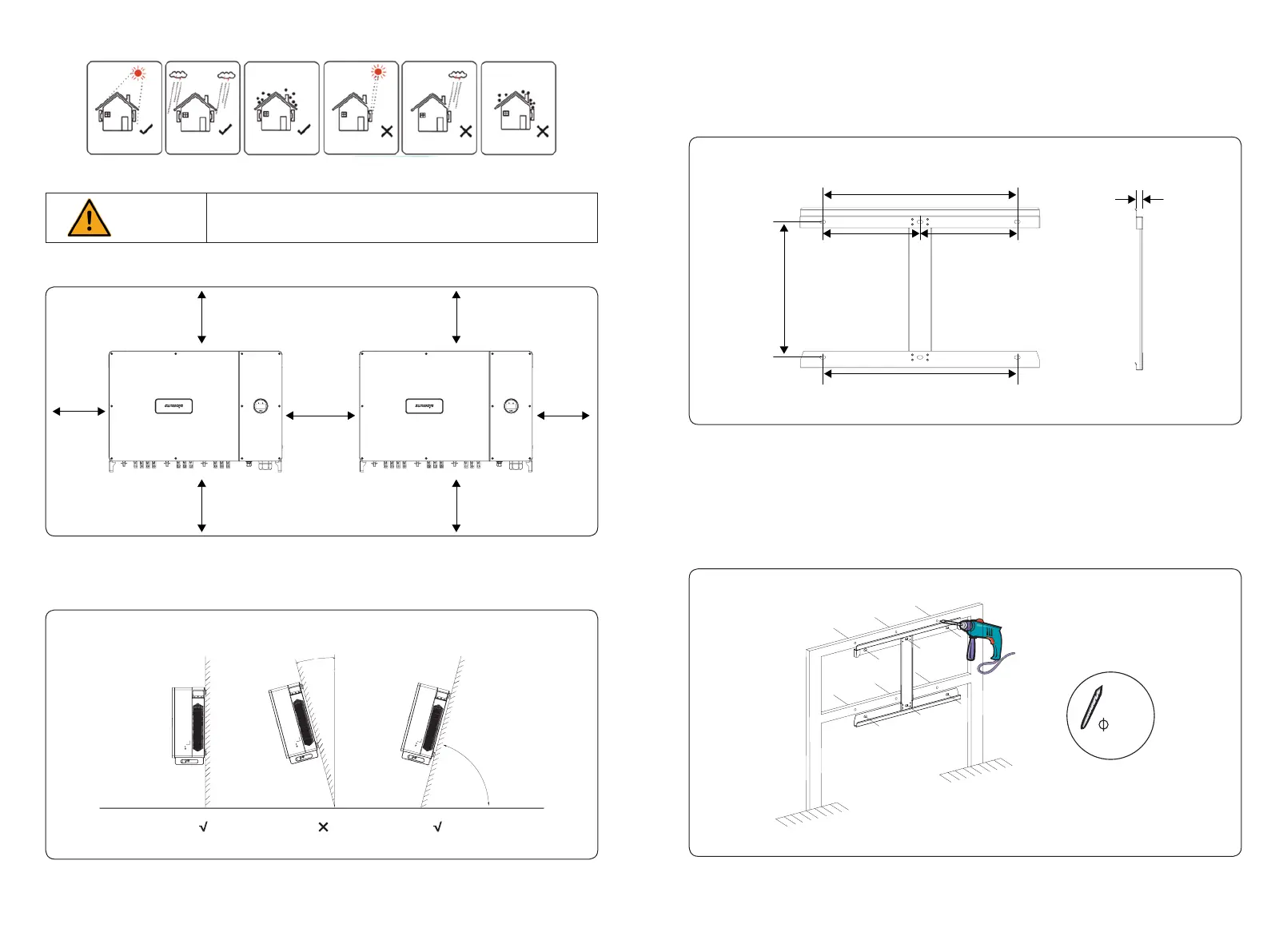

4.1.2 The requirements for inverter installation spacing are shown in Figure 4-2:
4.1.3 The installation angle of the inverter is recommended as shown in Figure 4-3:
Figure 4-2 Recommended installation space
Figure 4-3 Recommended installation angle
1500mm 1000mm
1000mm
500mm 500mm
500mm 500mm
x
4.2 Mounting the Inverter
4.2.1 Wall bracket installation
Dimensions of wall bracket, see Figure 4-4:
1) Use the inverter back bracket as the template to mark the position of 6 holes on installation
bracket.
2) Use an electrical driller with 12mm diameter bit to drill 6 holes on the installation bracket.
See Figure 4-5 for details:
Figure 4-4 Dimensions of wall bracket
Figure 4-5 Mark the hole position
12mm
Figure 4-1 Recommended installation location
Do not put 󽗊ammable and explosive articles around the inverter.
Warning
483mm
668mm
334mm 334mm
23mm
668mm
≥ 15°
