Sunx LX-101-P - LX-100 Series Core Functions; Advanced Sensing Technology

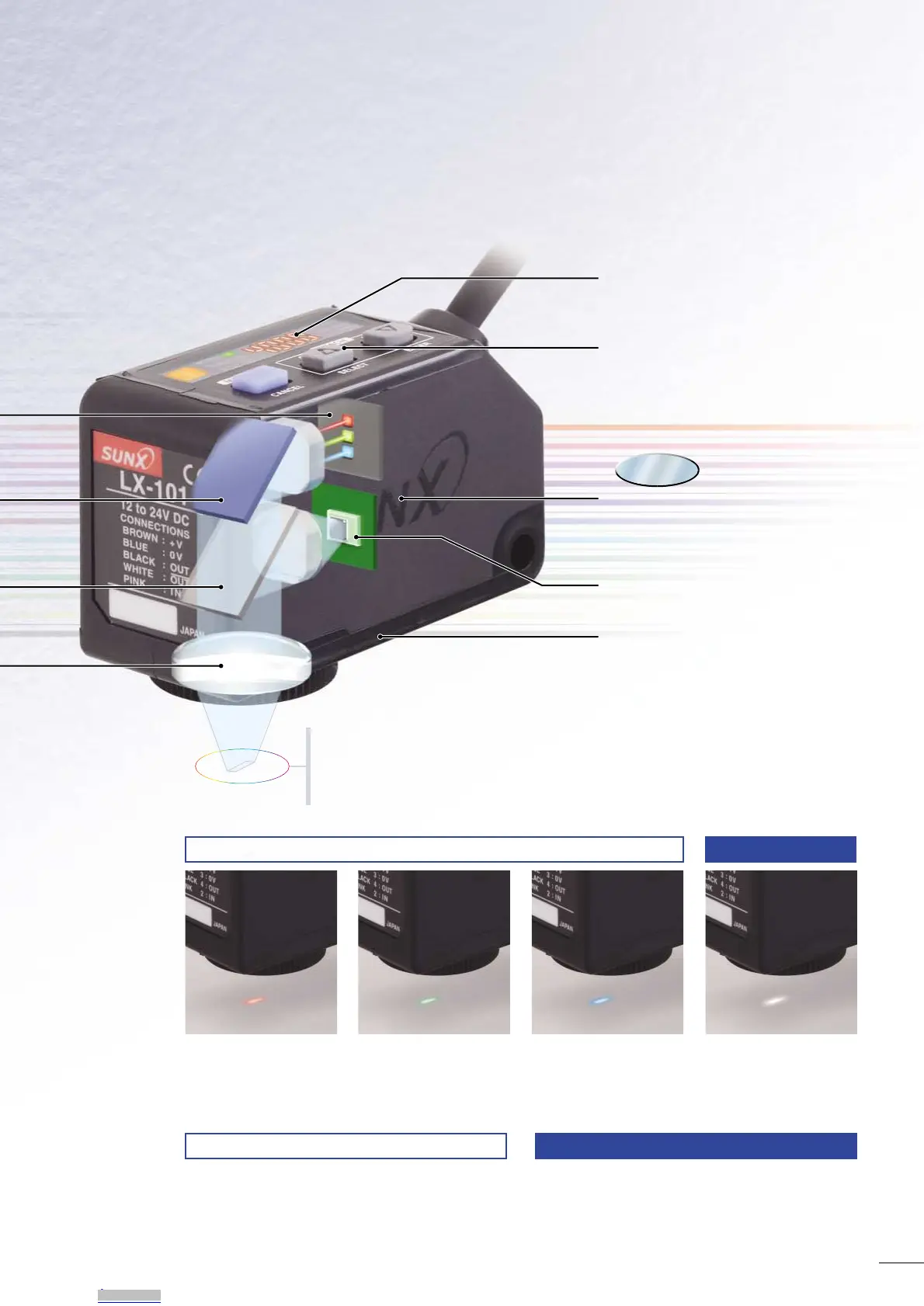

To detect any marking, this unit is
equipped with red, green and blue LED
light emitting elements all in one.
SUNX’s unique coaxial reflective optics
technology ensures very accurate
sensing. The unit is made with a
scratchproof glass lens.
4-digit digital display
Operation panel
12-bit A/D converter
Receiving element
Protection IP67
2 selectable sensing modes for any application
d
Image schematic
The sensor utilizes all 3 R G B LEDs to convert the
reflective light into an R G B ratio. Only the color of
the mark indicated by teaching is accurately
detected.
The sensor automatically selects the most suitable
light source color from the 3 R G B LEDs offering
the largest contrast between the mark and base
(non-mark area). The sensor effectuates ultra quick
mark detection with a 45 !s response time.
Color modeMark mode
A resolution of 1/4000 is realized to
enable high precision mark sensing.
3 large buttons that click into position
making operation easy.
The 4-digit digital display enables
numerical sensing control and minute
settings.
Washing the machines and production
line with water will not affect the sensor
thanks to its waterproof construction.
Highest in
the industry
Color modeMark mode
R (red) LED lit G (green) LED lit B (blue) LED lit All 3 R• G• B LEDs lit
Coaxial reflective optics and a sharp
1
5 mm 0.0390.197 in spot enable
high precision sensing.
2
