Sunx LX-101-P - Color Mode Sensing Details; High Precision Color Discrimination

RED
GREEN
BLUE
The color around letters is
detected as a mark.
Predetermined colors are
detected as marks.
Even similar colors are accurately determined using the R• G• B ratio.
3. Precise determination of consistency of the spot color (R• G• B ratio) 2. R• G• B ratio calculated1. 1-level teaching for this mark
Color mode
High precision mark color discrimination

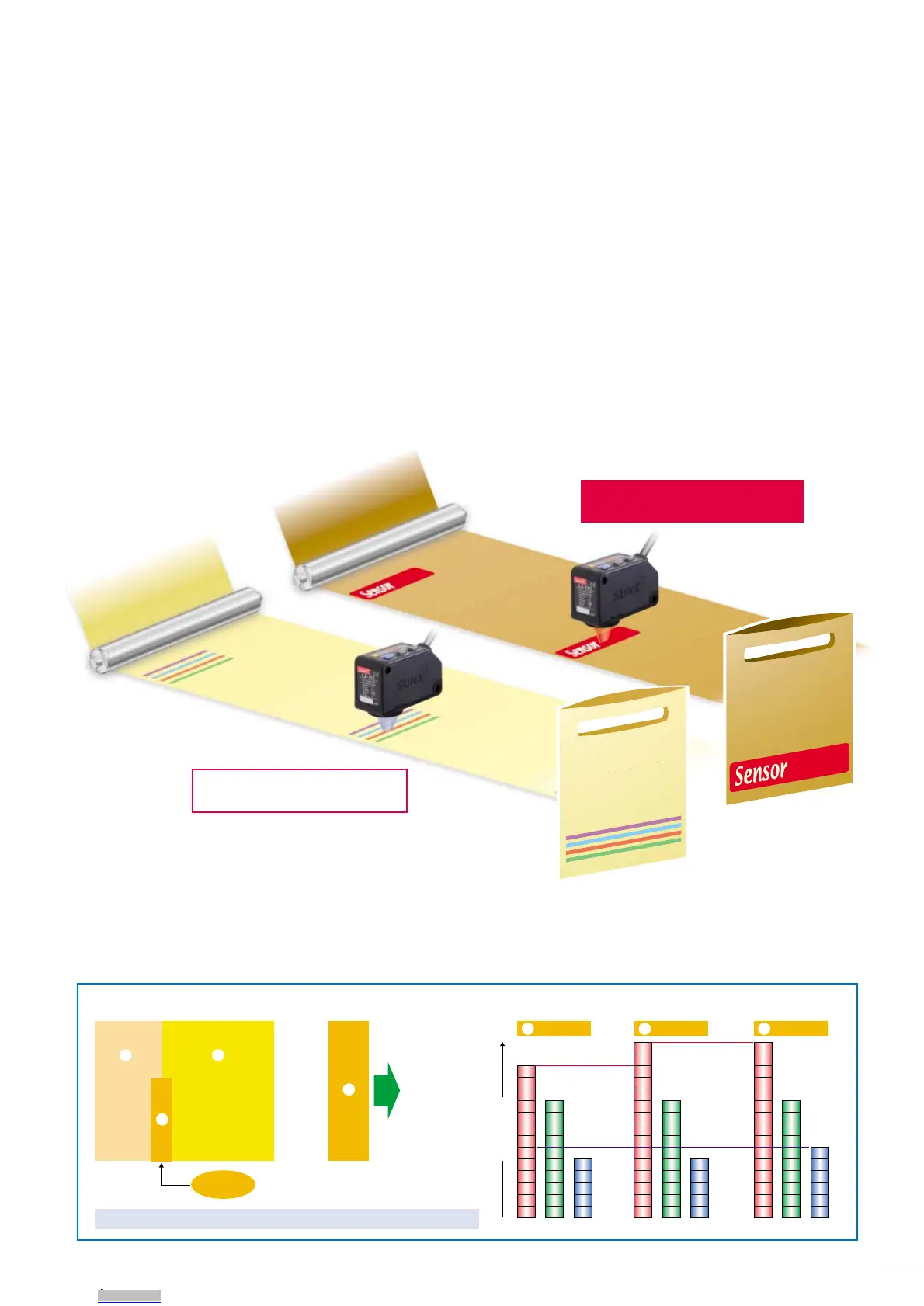

The color mode on the LX-100 series utilizes all 3 R• G• B LEDs to determine the R• G• B ratio of the mark color. The built-in 12-bit A/D
converter enables high precision 1/4000-resolution judgments. The figure below is a graphic description of this process.
::
61015
::
51015
::
51013
a
Inconsistent
b
Consistent
c
Inconsistent
R
G
B
:
:
:
15
10
5
a c
b
b
MarkMarkMark
All 3 R • G• B LEDs light up and high precision mark color
discrimination occurs using the R • G • B reflective light
ratio. This function enables effective detection of films with
patterns around the area of the mark.
Reflective light
