Sunx LX-101-P - User Interface and Settings Management

Its digital display makes for easy settings!
Numerical control of the settings possible

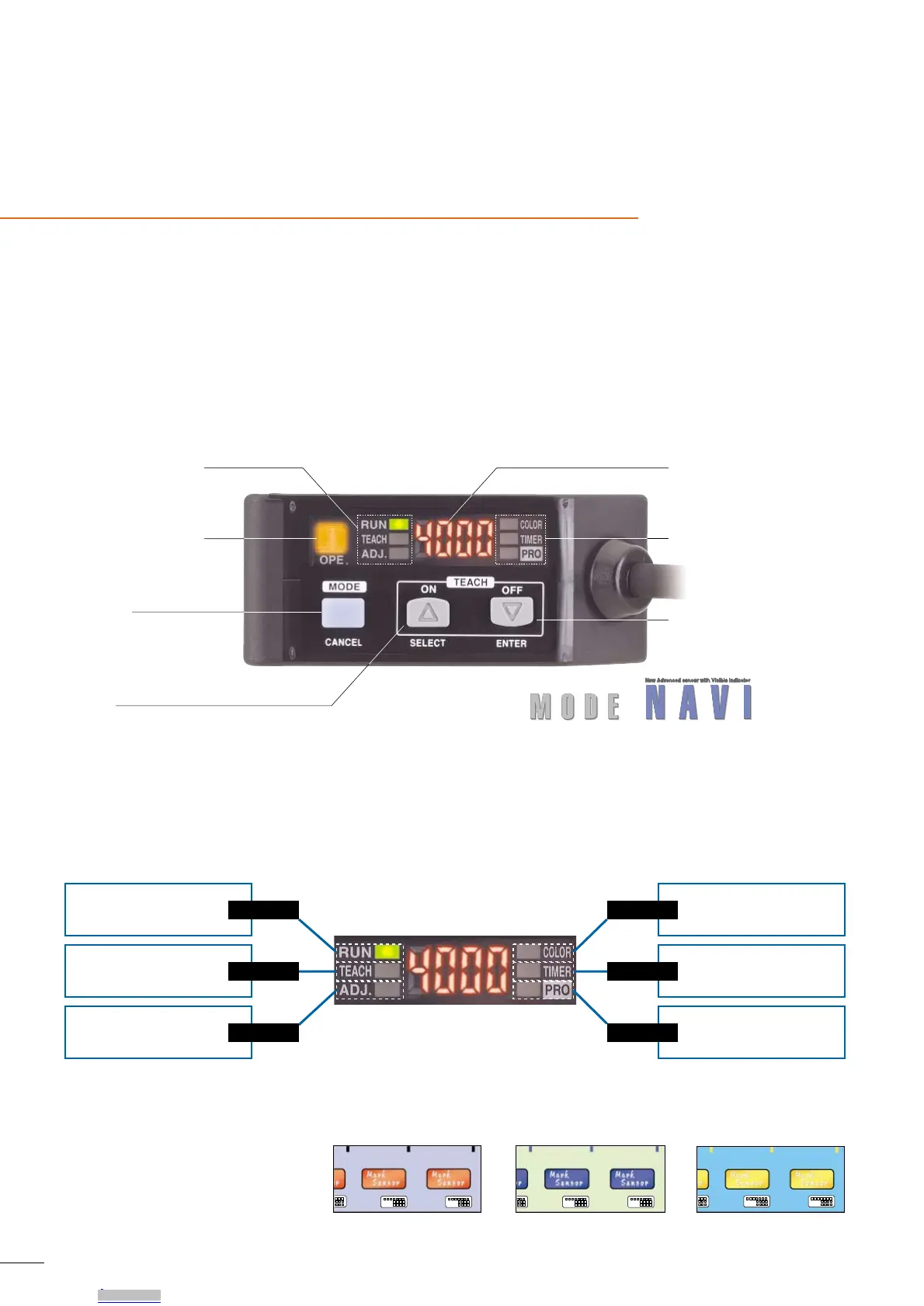

New Advanced sensor with Visible Indicator
4-digit digital display
Light-receiving amount and
setting values are displayed.
MODE indicator
OFF key
(PRO mode: ENTER key)
ON key
( PRO mode: SELECT key)
MODE indicator
MODE key
(PRO mode: CANCEL key)
Operation indicator
 Selected LED: Red LED
 Threshold value: 600
• Example of sensor setting indication
 Selected LED: Green LED
 Threshold value: 1850
 Selected LED: Blue LED
 Threshold value: 1600
This is the sensing mode. The digital display
shows the light-receiving amount (mark mode)
and the color consistency (color mode).
This mode enables a mark
mode / color mode selection.
RUN
Even beginners can quickly master MODE NAVI operation
The sensor’s basic operations are represented by 6 indicator lamps (MODE NAVI). The user can check what mode the sensor is presently in
with a quick glance rendering operation simple.
Sensing status digitally controllable
The sensing status, displayed numerically,
can be verified at a glance. Also, the sensor
settings for each type of packing film can be
digitally indicated.
This is the threshold value
setting (teaching) mode.
TEACH
This is the threshold fine-
adjustment mode.
Timer type selection mode.
This mode enables the setting
of various functions such as
key lock and timer period.
ADJ
COLOR
TIMER
PRO
The 4-digit digital display enables easy verification of received light from marks and
base (non-mark area). Also, the threshold value can be controlled numerically
enabling setting indication easily. Displaying the direct code enables settings
verification. This function is handy for remote maintenance.
( )
5
