Electric Booster– Installation, Operating and Maintenance Instructions
2
Dimensions, Piping Diagram and Specifications Section 1
1.1 DIMENSIONS AND PIPING DIAGRAM

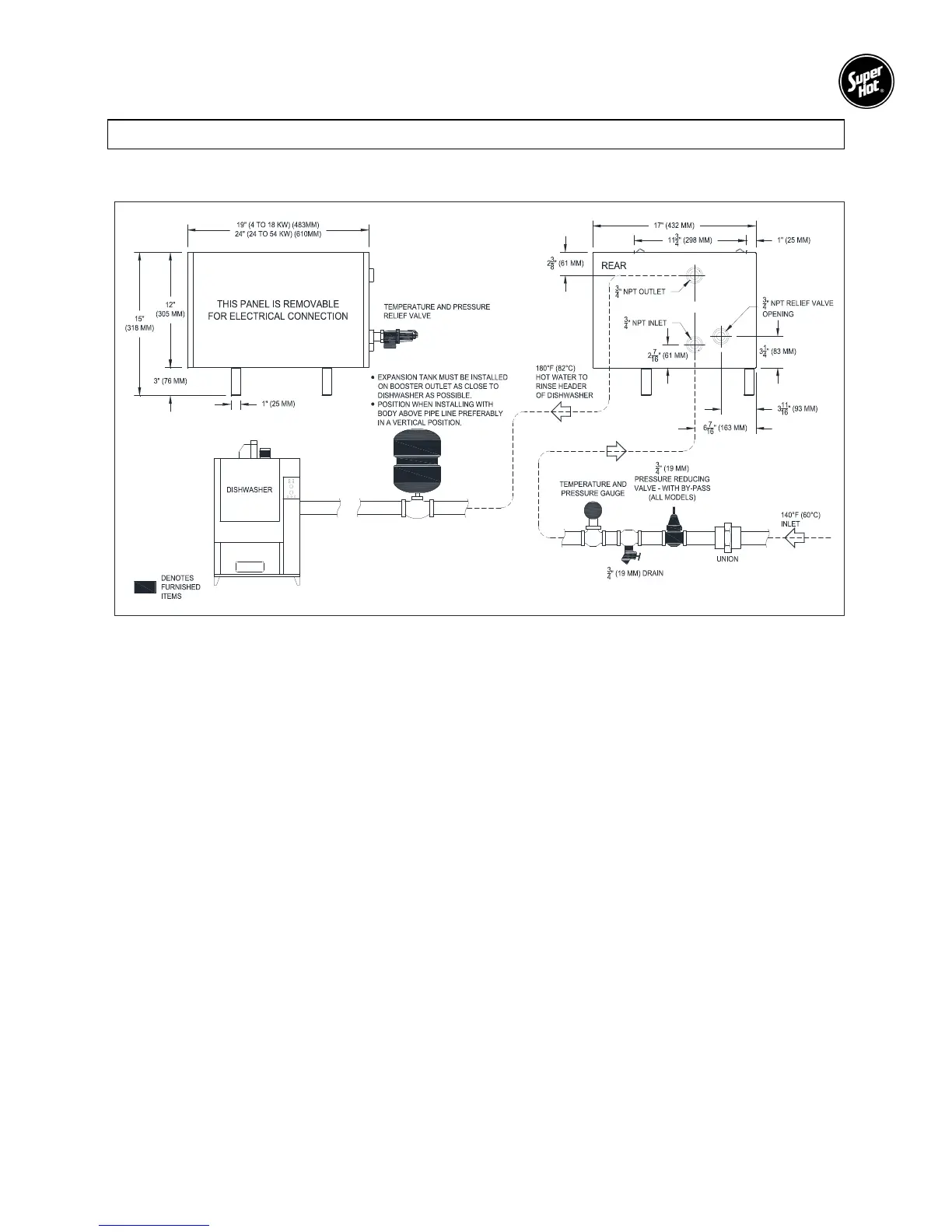

Figure 1 – Dimensions and Piping Diagram
1.2 TECHNICAL SPECIFICATIONS
Maximum Operating Pressure 130 p.s.i.
Maximum Operating Water Temperature 210ºF
Water Capacity in booster – 4-18kW 4.27 US Gallons
Water Capacity in booster – 24-54kW 5.80 US Gallons
Inlet and Outlet Pipe Size 3/4” NPT
