Measuring Sag

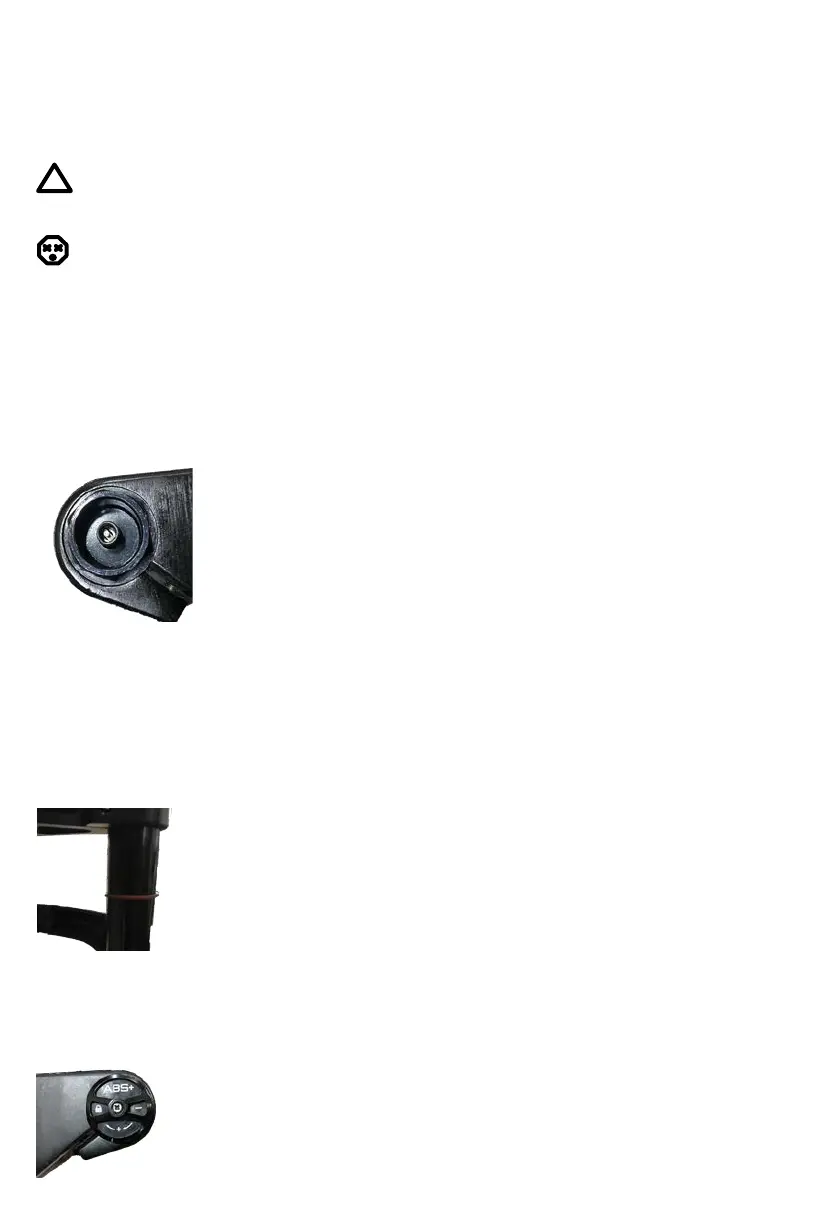

The recommended sag of the front fork is 20mm into the travel, which can be measured
with the bumper found on the lower portion of the right stanchion. To measure sag, place
your bike somewhere level where you can safely put your full weight on the bike while
balanced. It is recommended to have a friend help balance the bike during this portion of
adjustment.
• Slide the bumper all the way down to the top of the air chamber.
Then seat yourself on the bike, engage the brakes, and move into
an aggressive standing position with your feet on the pedals.
• Dismount from the bike and measure the amount of travel
between the bumper and the air chamber. If the measurement
is more or less than 20mm, adjust the air assist pressure
appropriately.
Adjusting Air Assist Pressure
Adjustment of air assist pressure will require a shock pump. Use Figure “suggested
starting air pressure” on pg. 9 to find your recommended air pressure.
• Remove the valve cap on the top left stanchion and connect your
shock pump to the pressure valve.
• Review the current air pressure and adjust according to Figure
. finetune the pressure with the shock pump to your desired
comfort.
• Be sure you remove the shock pump in between adjustments as
leaving it on can affect the active pressure in the suspension.
After completing adjustment, reinstall the pressure valve cap.
The S2 defaults to a baseline setting. Follow the guides below to adjust the suspension to
your desired comfort level. The S2 is equipped with an inverted coil-spring fork with air
assist and the ability to adjust lockout and rebound damping.
Adjusting Lockout
Lockout is adjusted with the dial on the top right stanchion.
• Turning the preload dial clockwise (+) will decrease
compression on the suspension.
• Turning the dial counterclockwise (-) will increase
compression on the suspension.
Suspension Adjustment Guide
Front Suspension Adjustments
If any of the instructions are beyond your skill set, we recommend taking your
Super73 to a certified E-Bike specialist or professional cycle mechanic for
adjustments.
!
Changing suspension adjustment can change the handling and braking characteristics
of your Super73. Never change suspension adjustment unless you are thoroughly
familiar with the suspension system instructions and recommendations, and always
check for changes in the handling and braking characteristics of the Super73 after a
suspension adjustment by taking a careful test ride in a hazard-free area.
