Section A – Overview of
FLASHPAQ
FLASHPAQFLASHPAQ
FLASHPAQ

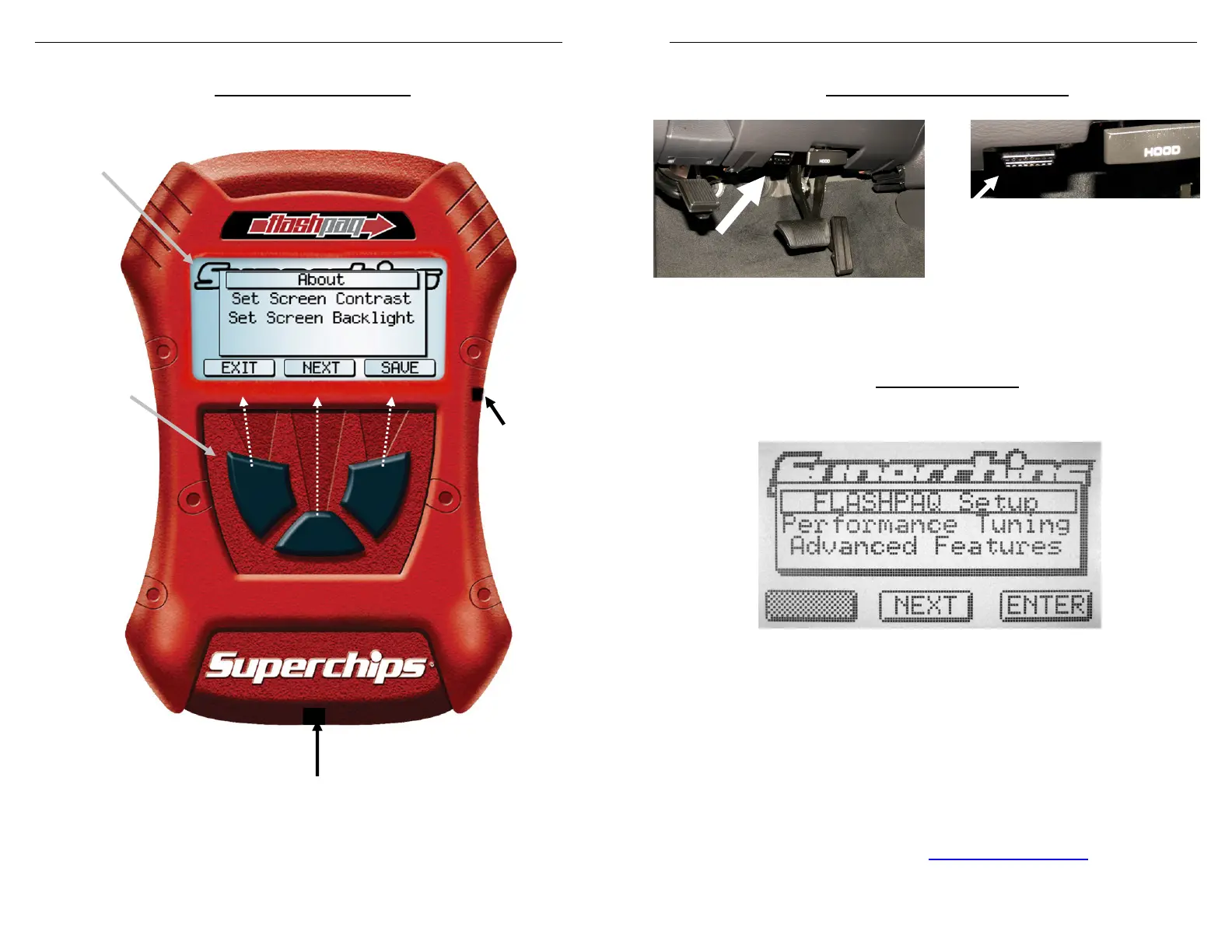

1. Understanding the hardware
The screen text on your particular FLASHPAQ Tuner may differ from the example above.
Graphical Display
SoftKeys
Buttons
(Note screen
relation)
Vehicle Cable
US
B
Port
for PC
Page 6 of 24 Form 0151H 3815 06/11/2008 Superchips Inc
.
Superchips Inc. 1790 East Airport Blvd., Sanford, FL. 32773 (407) 585-7000 http://www.superchips.com
Superchip & Superchips are registered trademarks of Superchips, Inc.
Section A – Overview of FLASHPAQ
FLASHPAQFLASHPAQ
FLASHPAQ
2. Connecting Flashpaq to my vehicle
Diagnostic port
close up
The Flashpaq plugs into your vehicle’s The port and cable are
diagnostic port usually underneath the dash setup to only fit on one
below the steering wheel (see white arrow). way. Typically the wider
Some vehicles may have the diagnostic port edge faces the top, as
directly facing the floor of the vehicle. shown above.
3. The Opening Screen
When a Flashpaq is first powered up, the opening screen is displayed
 FLASHPAQ Setup – See Flashpaq Setup section
o About
o Set Screen Contrast
o Set Screen Backlight
 Performance Tuning – See Performance Tuning section
o Read Vehicle
o Change Settings
o View Settings
o Program Vehicle
 Advanced Features – See Advanced Features section
o Diagnostic Codes
o Data Logging (visit www.superchips.com for updates)
