35
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Installation and Operation Instructions
900299-00, 05/2016
Innovative Hearth Products
DRT40 Multi-View Series Direct-Vent Gas Fireplace

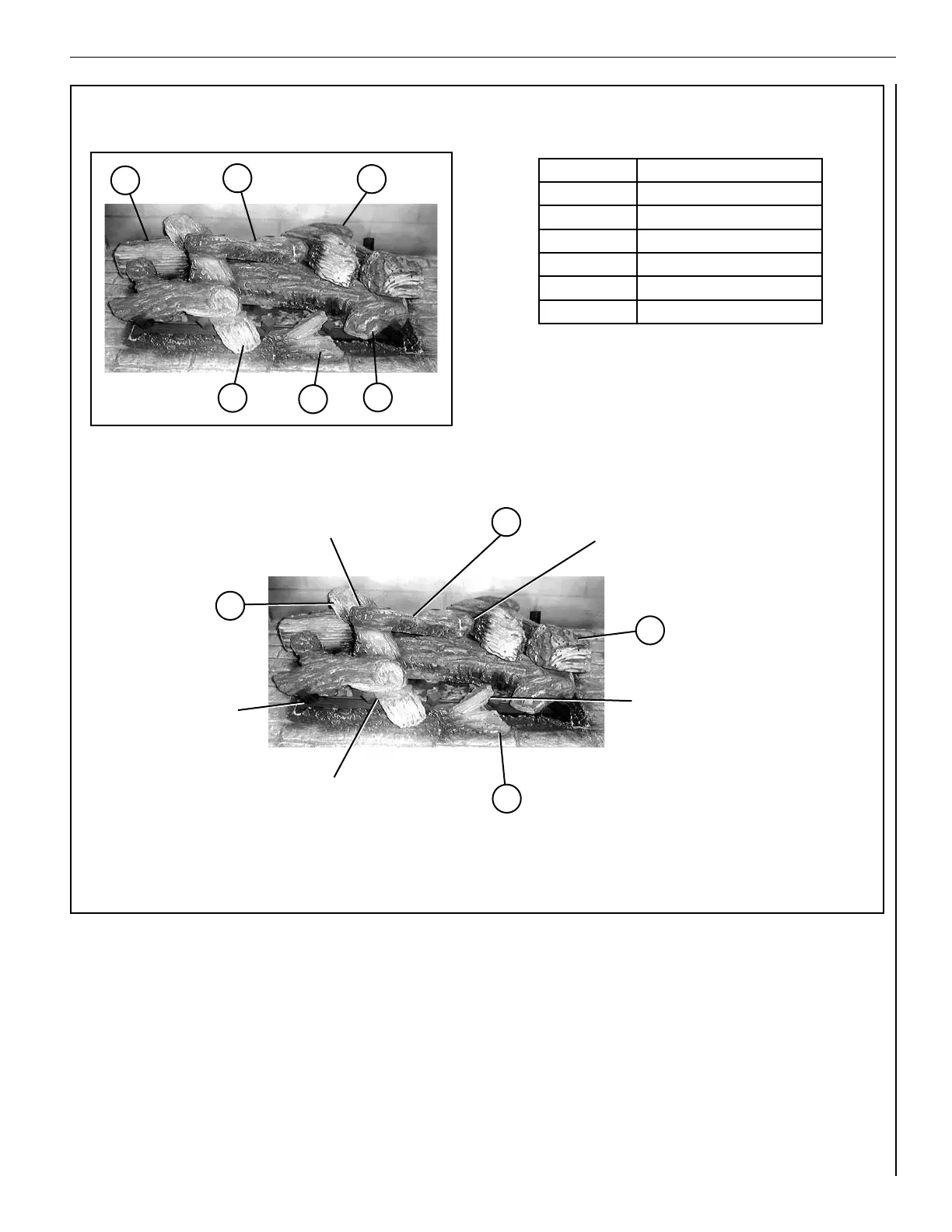

DRT40PF, DRT40ST, DRT40CL AND DRT40CR LOG PLACEMENT (CONTINUED)
Catalog Number for the entire log set: 55M04
2
6
5
4
1
3
Figure 62
3
Grate
Assembly
5
Position Small End Of Log (6)
On The Notch Of Log (3) Here
6
4
Position The Round End Of Log (6)
Against The Notch Of Log (4) Here.
Two Charred Spots Face The Front
Position The Groove In The Back
Of Log (3) Against The Grate
Rest Log (5) Against
The Grate Here
Log (5) Sits In Front
Of The Grate
STEP 5
Log Number Description
1 Log, Corner
2 Log, Rear/Left
3 Log, Front/Left
4 Log, Rear/Right
5 Log, Front/Center
6 Log, Center/Top
To Next Page
