Superior BBV-42REN - Wiring Diagrams; Electronic Wiring Diagram (Honeywell) (Optional ON;OFF Switch Wiring); SIT Millivolt Wiring Diagram; Honeywell Millivolt Wiring Diagram

9
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

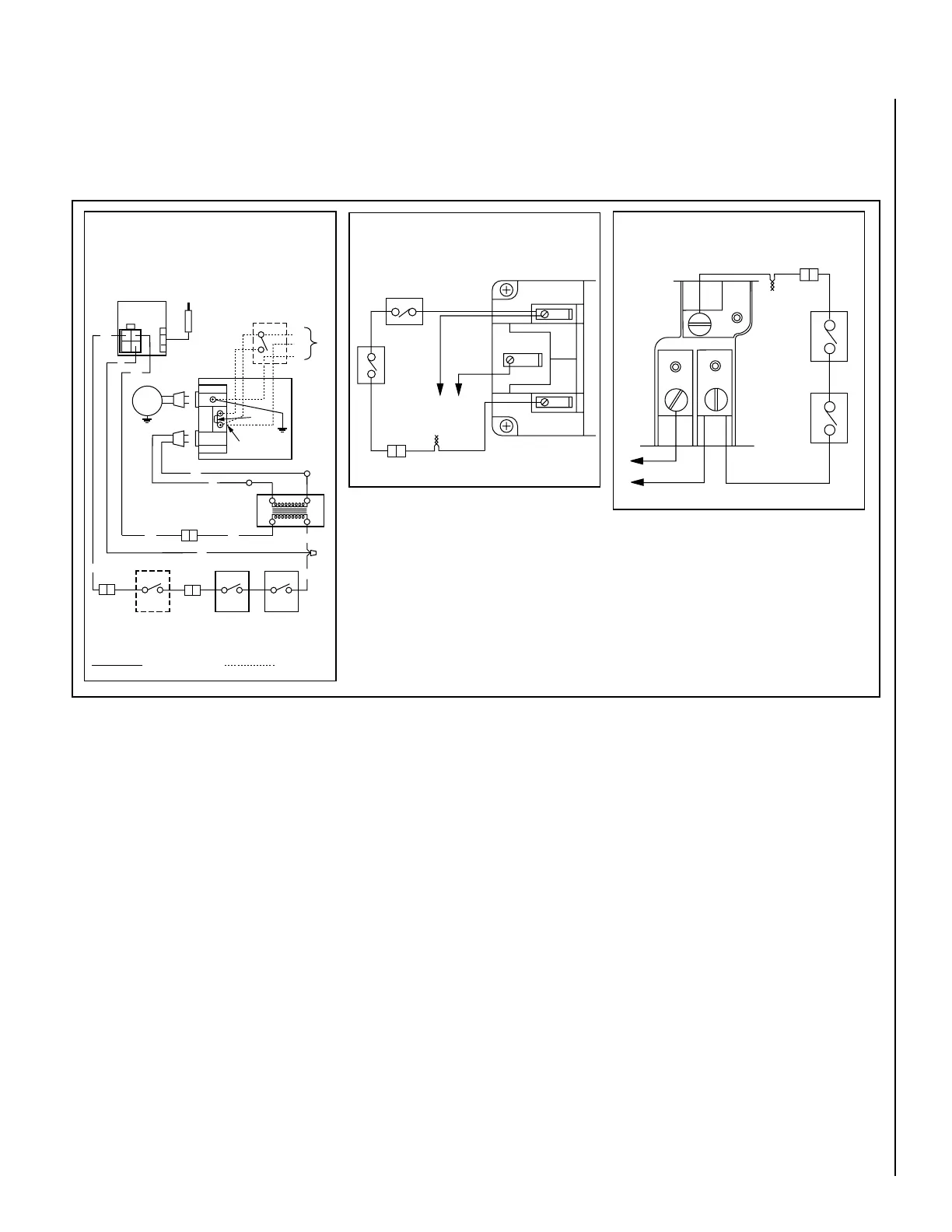

WIRING DIAGRAMS
Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics found on pullout labels located
within the control compartment attached to the gas control valve. Two Millivolt wiring diagrams are provided here, one each for both Honeywell
and SIT equipped systems.
Thermopile
Damper
Switch
TH
TP
TH
TP
Honeywell Millivolt Wiring Diagram
If any of the original wire as supplied must be replaced, it
must be replaced with Type AWM 200°C – 18 GA. wire.
TH
TPTH
TP
* For Wall Switch Attachment Only.
*
Limit
Switch
BK
WHT
BK
BK
BK
SIT Millivolt Wiring Diagram
* For Wall Switch Attachment Only.
If any of the original wire as supplied must be replaced, it
must be replaced with Type AWM 200°C – 18 GA. wire.
Thermopile
TH
TP
TH
TP
Limit
Switch
Damper Switch
BK
BK
BK
BK
WHT
*
1. If any of the original wire as supplied must be replaced,
1. it must be replaced with Type AWM 200°C – 18 GA. wire.
2. 120V, 60Hz – Less than 3 amps.
BK
Junction Box
Transf.
120 V.
24 V
Factory Wired
Field Wired
BL
