Installation
900004-00, 03/2017
Innovative Hearth Products
DRT2000 and DRC2000 Direct-Vent Fireplaces
32
Table 21 - Venting Components Required for Various Exterior Wall Thicknesses, when using Typical Termination Kits
Vent Components Required Exterior Wall Thickness
Termination Kit Only 6 to 9 1/4” (152 to 235 mm)
Termination Kit and 6” Vent Section (SV4.5L6) 10-3/4 to 14” (273 to 356 mm)
Termination Kit and 12” Vent Section (SV4.5L12) 16-3/4 to 20” (426 to 508 mm)
Termination Kit and Telescopic Section (SV4.5LA)
and 6” vent section (SV4.5L6)
11-3/4 to 20” (299 to 508 mm)
NOTE: See Figure 28 for wall thickness ranges when using SV4.5HTKCT termination kit.
Horizontal Vent Figures/Tables
NOTE: Secure Vent
®
rigid vent pipe and terminal are shown in the fi gures. Secure Flex
®
exible vent pipe and
terminal may also be used.
NOTE: Two (2) 45° elbows may be used in place of one (1) 90° elbow. The same rise to run ratios, as shown in the
venting fi gures for 90° elbows, must be followed if 45° elbows are used.
NOTE: Maintain the horizontal/inclined run in a straight (no dips), slightly elevated plane. The recommended incline
is approximately 1/4” per 1 ft (20 mm per 1 m) horizontal, in a direction away from the fi replace. Smaller rise per
foot run ratios are acceptable all the way to at or near level. Use a carpenter’s level to measure from a constant
surface and adjust the support straps as necessary.
NOTE: SV4.5VF (Secure Vent), SF4.5VF (Secure Flex) fi restop/spacer must be used any time vent pipe passes
through a combustible fl oor or ceiling. SV4.5HF (Secure Vent), SF4.5HF (Secure Flex) fi restop/spacer must be used
any time vent pipe passes through a combustible wall.
WARNING
Do not join separate sections of concentric fl exible vent together.

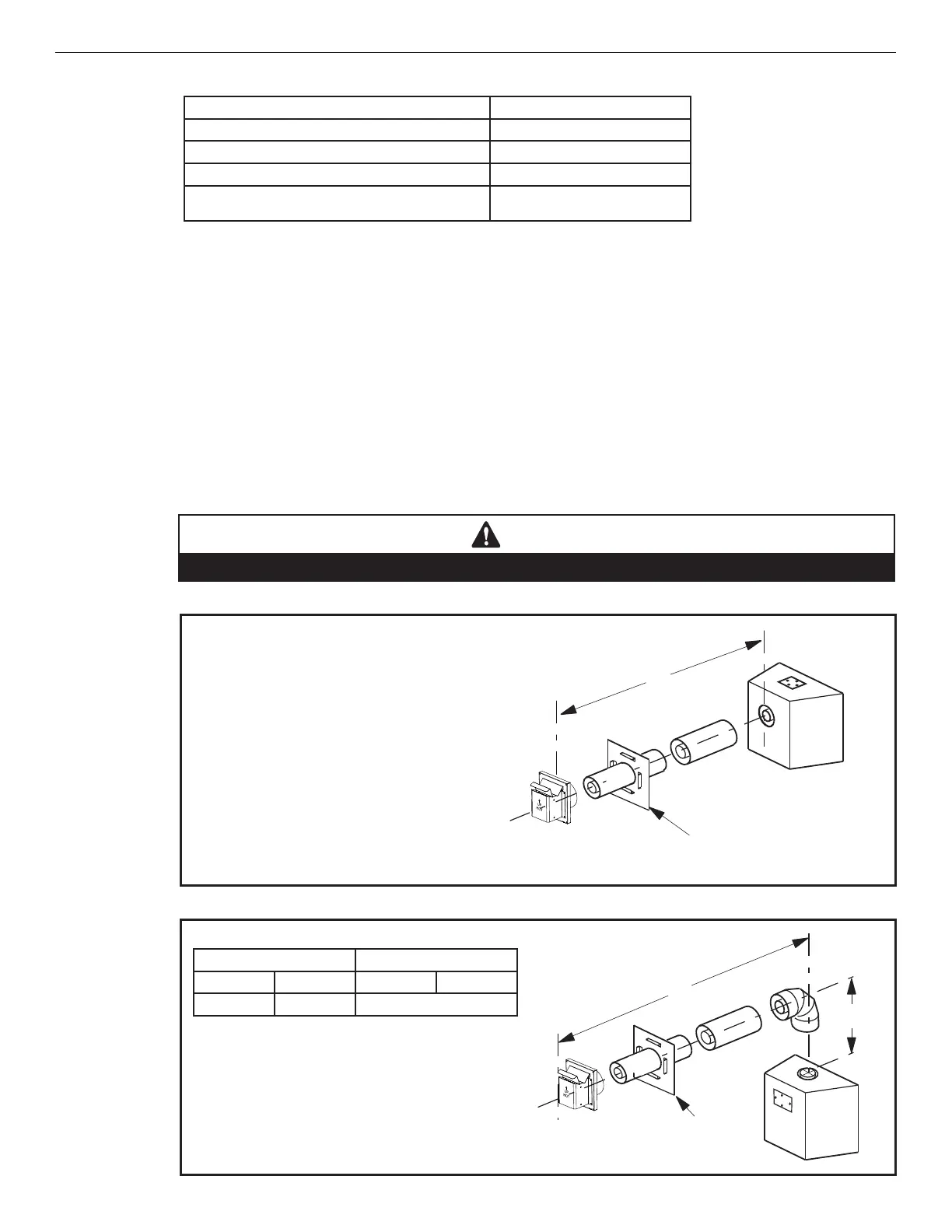

Table 22 - Rear Vent—No Elbows
Compact termination (SV4.5HTKCT) shown.
See Table 21 as an aid in venting component selection for a
particular range of exterior wall thicknesses.
Note: “H” is horizontal distance from rear of unit to outer wall
surface
Note: On 45” models only, 1” vertical rise is required when using
compact hoizontal termination with a rear vent.
Table 23 - Top Vent—One 90° Elbow, Elbow Connection at Fireplace
H Maximum V Minimum
feet meters feet meters
3 0.91 Elbow only
Compact termination (SV4.5HTKCT) shown.
See Table 21 as an aid in venting component selection for a
particular range of exterior wall thicknesses.
NOTE: Only in top vent where elbow is connected at fi replace
collar is it allowed to count elbow as 1 ft. vertical (V) rise.
Wall
restop/
spacer
SV4.5HF *
When using Secure Flex
®
, use
wall fi restop/spacer SF4.5HF.
*
H
V
When using Secure Flex
®
, use
wall fi restop/spacer SF4.5HF, and
install venting with a minimum of
12” rise. (Page 35).
H = 21” (533 mm) maximum
27-1/2”
(699 mm) to outside
of termination
H
